DC MOTORS, SERVOS, STEPPER MOTORS

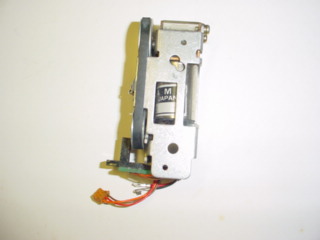

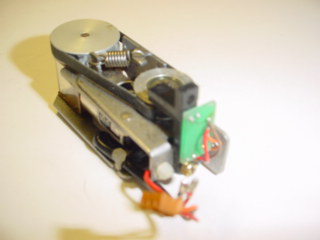

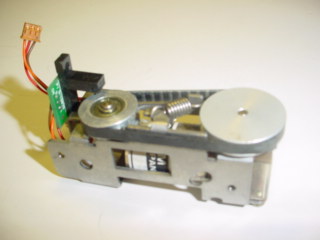

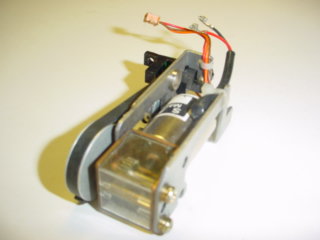

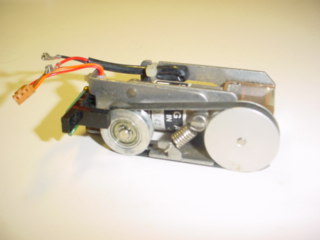

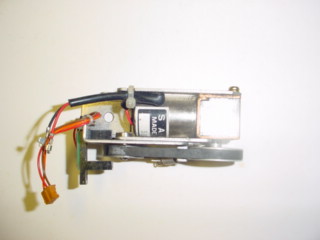

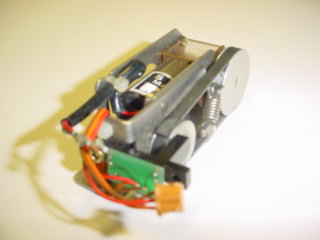

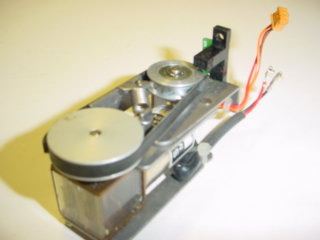

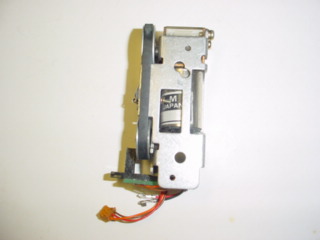

MOTOR-SAGAMI -- SAGAMI gearbox set with rubber belt and wheels -- US$29.50

This high quality motor is made by SAGAMI in Japan. The working voltage is ranged from 6V to 12V. The size of the whole gear box and wheel is 79mm x 36mm. The speed is about 200 RPM (at 12V). The set comes with a shaft encoder which you can read the speed of the motor (we do not have a full specifications. However, it is a pair of Infrad-red transmitter and receiver). There is a pair of metal wheels that attached together through a rubber belt. It is ready to build a track driven system robot. The wheel has a ball-bearing for a smooth rotation. This is an used part but in excellent condition.



MOTOR-SET-001 -- Two Gearhead Motors with 64mm Sponge Tire set -- US$169.00
(Part No: MOTOR-SET-001)

The first release is a transmission unit consisting of 2 powerful gear head motors and 2 highgrip sponge tires. One unit (1 tire & motor) can support approximately 2kg, with total supporting weight of approximately 4kg. 380K75 motor running from a DC7.2V power source has rotational speed of 242 rpm (unloaded) and max torque of 5.0 kg/cm. Running speed is 1m per 0.74 seconds (with 4kg load). Total weight of set is 480g. Technical Specifications and Product Details. Also, check our largest selection of motor cooling fans.

MOTOR-SET-002 -- Two Gearhead Motors with 130mm Pin Spike Tire Set -- US$169.00
(Part No: MOTOR-SET-002)

The second release is a transmission unit consisting of 2 powerful gear head motors and 2 monster pin spike tires that are ideal for traversing rough terrain. One unit (1 tire & motor) can support approximately 2kg, with total supporting weight of approximately 4kg. 380K75 motor running from a DC7.2V power source has rotational speed of 242 rpm (unloaded) and max torque of 5.0 kg/cm. Running speed is 1m per 1.35 seconds (with 4kg load). Total weight of set is 660g. Technical Specifications and Product Details. Also, check our largest selection of motor cooling fans.

MOTOR-SET-RD01 -- Two Gearhead Motors with driver board (12V) -- US$229.95

A complete Robot Drive system, ready to integrate into your robot, comprising of an MD25 motor drive module, two EMG30  gearmotors  with encoders, two mounting brackets, two 100mm wheels with hubs already fitted. Screws to fit the motors to the brackets and a hex key for the hub screw is included. Only a single 12v battery capable of supplying peak current of 6Amps is required to power the system. Power for the logic comes from an on-board 5v regulator which is also capable of supply up  to 300mA to your own circuits.  Here are the MD25 and EMG30 datasheet.



MOTOR-SET-RD02 -- Two Gearhead Motors with driver board (24V)-- US$515.00

The RD03 is a powerfull Robot Drive system, ready to integrate into your robot, comprising of an MD49 motor drive module, two EMG49 gearmotors with encoders, two mounting brackets, two 125mm wheels with hubs already fitted. Screws to fit the motors to the brackets and a hex key for the hub screw is included. Only a 24v battery is required to power the system. The MD49 is controlled with a logic level serial port, selectable at either 9600 or 38400 baud.
Full MD49 Documentation and the EMG49 Specification

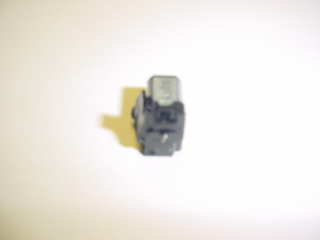

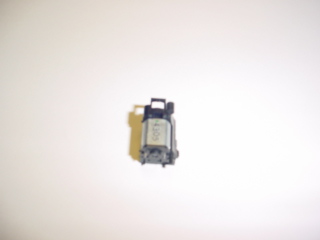

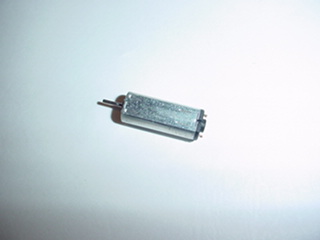

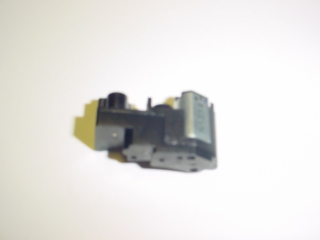

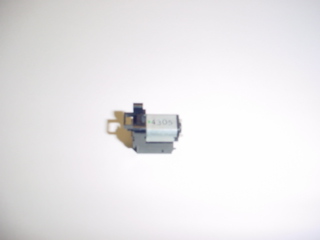

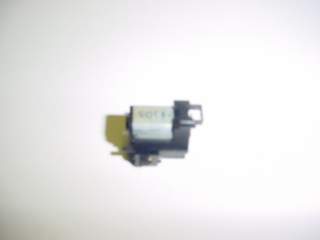

MOTOR-MINI-GEARMOTOR-A -- Mini gearbox withmotor-- US$5.90

This is a tiny motor with plastic gearbox. The motor volatge is 1.5V to 3.0. There is a shaft encoder plate on the motor (without the sensor). Th final gearbox output has around 300-400 RPM. The size of the gearbox including the motor is 13mm x 20mm. This is a brand new motor set. We do not have a full specification and it is sold as is.

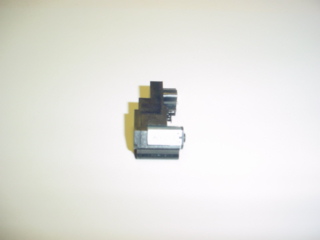

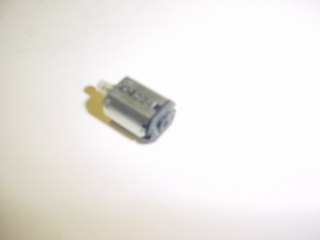

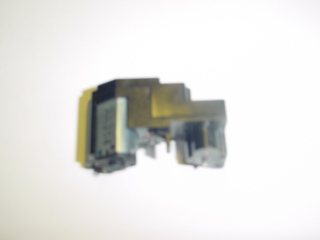

MOTOR-MINI-GEARMOTOR-B -- Mini gearbox withmotor-- US$6.90

This is a tiny motor with plastic gearbox. The motor volatge is 1.5V to 3.0. There is a shaft encoder plate on the motor (without the sensor). Th final gearbox output has around 300-400 RPM. The size of the gearbox including the motor is 20mm x 35mm. This is a brand new motor set. We do not have a full specification and it is sold as is.

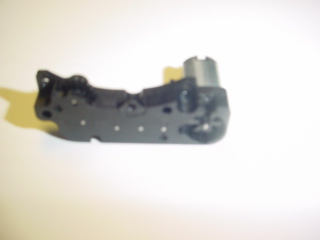

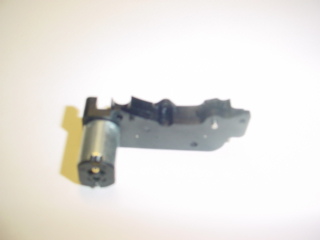

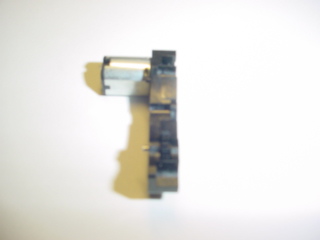

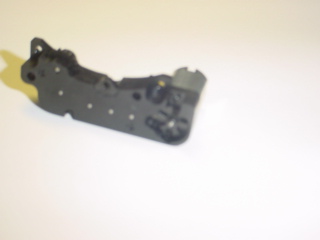

MOTOR-MINI-GEARMOTOR-C -- Mini gearbox withmotor-- US$7.90

This is a tiny motor with plastic gearbox. The motor volatge is 1.5V to 3.0. There is a shaft encoder plate on the motor (without the sensor). Th final gearbox output has around 300-400 RPM. The size of the gearbox including the motor is 21mm x 46mm. This is a brand new motor set. We do not have a full specification and it is sold as is.

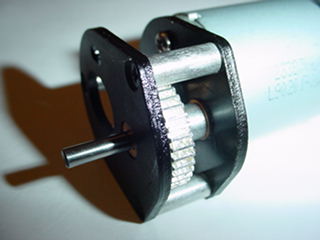

MOTOR-ROBOT-GEARHEAD MOTOR (1 PC) -- High quality gearhead motor -- US$22.00

This is a 12:1 DC metal gearhead motor. The RPM is 400RPM under 3V and 750RPM under 5V. Here is the datasheet. Also, check our largest selection of motor cooling fans.



MOTOR-EXTRA HIGH-TORQUE-GEARHEAD-MOTOR (1 PC) -- Extra High Torque Gearhead motor -- US$29.95

Swiss made extra high torque gearhead DC motor provided a very high torque. It can handle around 5-8kg and the working voltage is 6V to 16V. The shaft diameter is 6mm, and the length of the motor body is 11.7cm (including motor shaft). The diameter of the motor body is 30mm . The speed is about 300 RPM (at 12V). The length of the motor shaft is 35mm. The DC motor is used but in excellent condition. The motor comes with metal planetary gear box. The end of motor comes with a shaft encoder plate which you can read the speed of the motor. Check our steel motor mount for this motor. Also, check our largest selection of motor cooling fans.

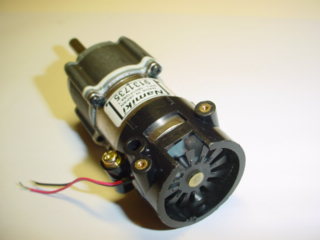

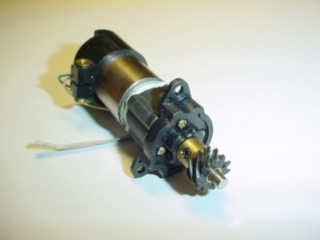

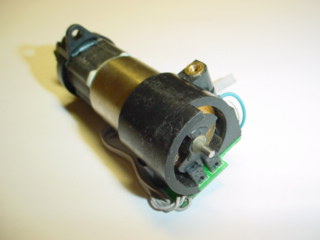

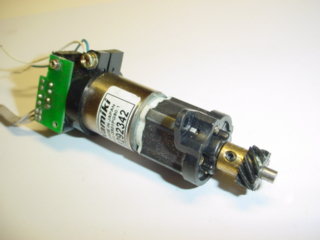

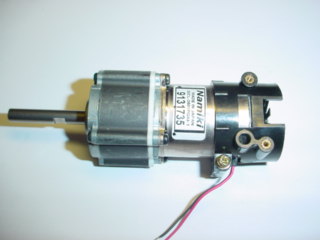

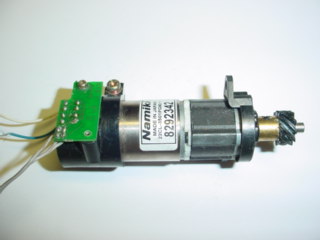

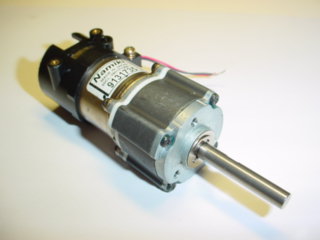

MOTOR-NAMIKI-GEARHEAD-MOTOR (1 PC) -- Gearhead motor -- US$16.95

This high quality motor is made by Namiki (Japanese company). It can handle around 2-3 kg and the working voltage is 6V to 12V.The shaft diameter is 4mm and the length of the motor body is 8.2cm (including motor shaft). The diameter of the motor body is 22mm .The length of the motor shaft is 18mm. The DC motor is used but in excellent condition. The gear ratio is about 80:1. The speed is about 300 RPM (at 12V). The motor comes with metal planetary gear box. Check our steel motor mount for this motor. Also, check our largest selection of motor cooling fans.

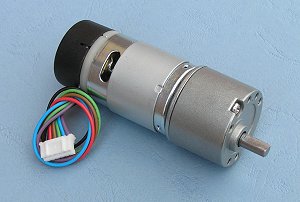

MOTOR-EMG30-A -- EMG30 Gearhead motorwith encoder -- US$72.90

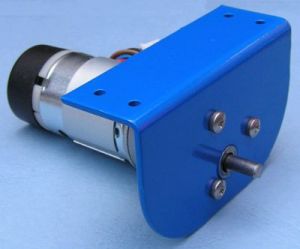

MOTOR-EMG30-B -- EMG30 Gearhead motorwith encoder and bracket -- US$83.90

MOTOR-EMG30-C -- EMG30 Gearhead motorwith encoder, bracket, wheel, and mounting hubs-- US$108.90

Specifications:

Rated voltage 12v
Rated torque 1.5kg/cm
Rated speed 170rpm
Rated current 530mA
No load speed 216
No load current 150mA
Stall current 2.5A
Rated output 4.22W
Encoder counts per drive shaft turn 360

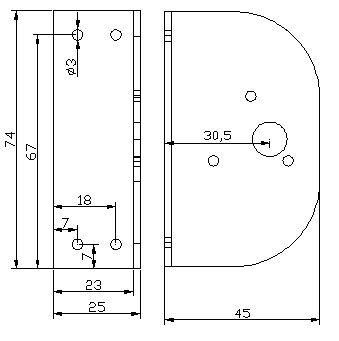

Here are the motor and bracket datasheet. The bracket is made from a 2mm thick strong aluminum and finished in blue enamel. A 100mm diameter wheel with our 5mm hub ready fitted Mounts directly on to the EMG30 motor drive shaft. MD23 motor driver board is ready to drive this motor. RD21 comes with 2 motor sets with accessories and MD23 driver board.

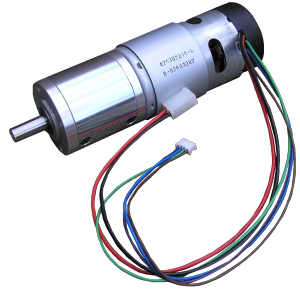

MOTOR-EMG49-A -- EMG49 Gearhead motorwith encoder -- US$109.90

MOTOR-EMG49-B -- EMG49 Gearhead motorwith encoder and bracket -- US$132.00

MOTOR-EMG49-C -- EMG49 Gearhead motorwith encoder, bracket, wheel, and mounting hubs-- US$163.00

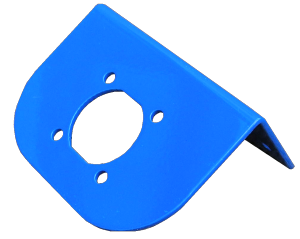

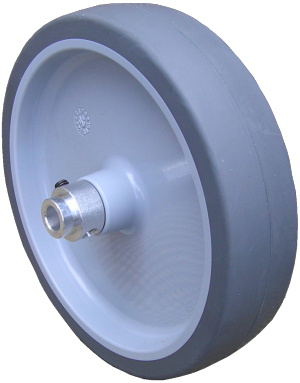

A strong aluminum mounting bracket for the EMG49 motors. 125mm diameter wheel with our 8mm hub ready fitted
Mounts directly on to the EMG49 drive shaft.

The EGM49 is a 24v motor fully equipped with encoders and a 49:1 reduction gearbox. It is ideal for medium size robotic applications, providing cost effective drive and feedback for the user.

Full EMG49 Specification

Rated voltage 24v
Rated torque 16kg/cm
Rated speed 122rpm
Rated current 2100mA
No load speed 143
No load current 500mA
Stall current 13A



MOTOR-FAUL- 2224R006SR (1 PC) -- High quality gearhead motor with encoder-- US$389.00

This is a brand new Swiss made FAULHABER which comes with encoder. The motor part number is 2224R006SR and the encoder is IE2-512. It is used in our soccer robot system.

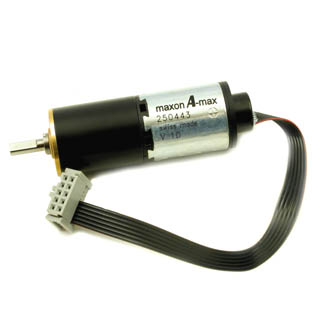

MOTOR-MAXON (1 PC) -- High quality gearhead motorwith encoder-- US$199.00

These are extremely high quality Swiss-made Maxon A-Max motors. Included on these motors are 16 cpr quadrature encoders and a 19:1 Planetary geartrain with ball bearings. Here are motor, encoder, and geartrain specifications.

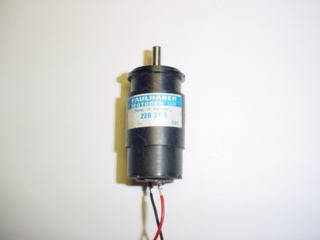

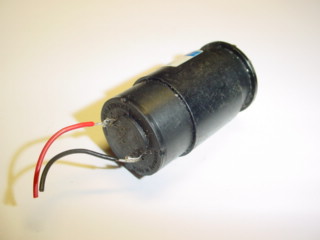

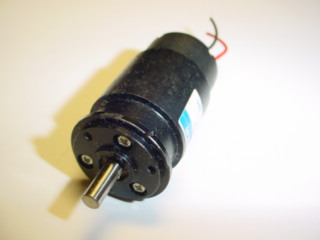

MOTOR-FAUL-GEARHEAD-MOTOR-A (1 PC) -- Gearhead motor -- US$25.00



Swiss made FAULHABER metal gearhead motor. The part number is "2224V006S" The gear ratio looks like 22:1. The output RPM will be around 500rpm. This gearhead motor consumearound 600mA current under load. The length of motor body (including motor shaft) is around 55.5mm , diameter is 24mm , the shaft length is10mm , and shaft diameter is 4mm . It is used and removed from equipment, but is fully tested and in excellent condition. It can handle 2-3kg load under 6-9V. Check our steel motor mount for this motor. Also, check our largest selection of motor cooling fans.



MOTOR-THINK ENGINEERING-MOTOR (1 PC) -- Gearhead motor -- US$14.50

Japanese THINK ENGINEERING high quality 6-24V gearhead motor. Part Number: TE-22JM-24-200T1. Detailed specifications . It is used and removed from the equipment. However, it is in excellent condition and fully tested. Check our steel motor mount for this motor. Also, check our largest selection of motor cooling fans.

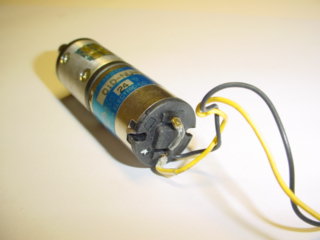

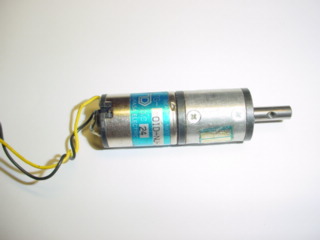

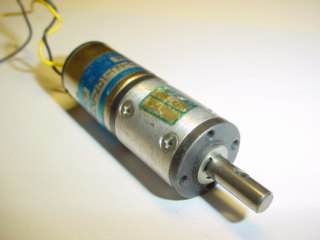

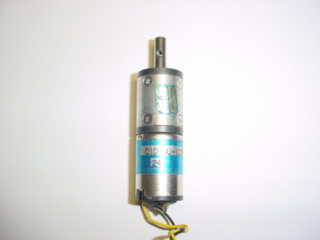

MOTOR-TSUKASA-MOTOR (1 PC) -- Gearhead motor -- US$18.50

Japanese TSUKASA ELECTRIC high quality 6-24V gearhead motor. Part Number: TG-01D-NU-107-A054. The length including shaft is 8cm with diameter 2cm . The shaft length is 1.6cm with diameter 0.5cm . It is used and removed from the equipment. However, it is in excellent condition and fully tested. It is around 28 rpm. Check our steel motor mount for this motor. Also, check our largest selection of motor cooling fans.

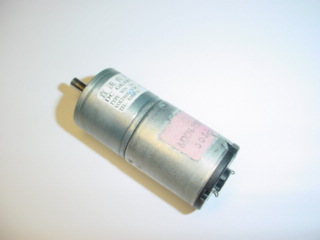

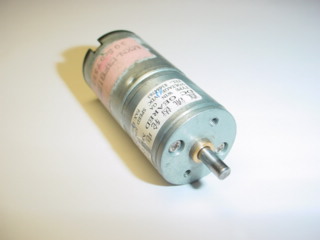

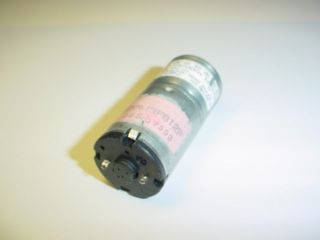

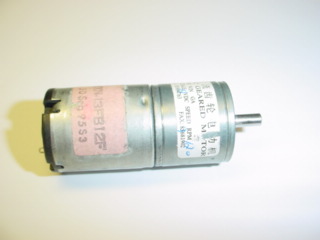

MOTOR-MXN-MOTOR (1 PC) -- Gearhead motor -- US$18.95

This is a high quality 9-12V gearhead motor. Part Number: MXN-13FB12F. The length including shaft is 62mm.The motor body diameter 25.5mm . The shaft length is 9.3mm and it has 120RPM at 12V. It is a brand new part. It can handle around 3kg load. The motor comes with a planetary gearbox. Check our steel motor mount for this motor. Also, check our largest selection of motor cooling fans.



MOTOR-GEARHEAD-MOTOR (1 PC) -- High torque gearhead motor -- US$25.00

Brand new high torque 9V-24V DC gearhead motor. It has around 29 rpm and can handle 5 -8kg load. The length of the motor is 9.3cm (including shaft) with diameter 3.5cm . The shaft length is 2cm with a diameter 0.5cm . The part number is GC-3642-0002. It is a brand new part. Further bulk discount is available as we have several thousand units in stock. Check our steel motor mount for this motor. Also, check our largest selection of motor cooling fans.



MOTOR-GEARHEAD-MOTOR (2 PCS) -- High torque gearhead motor -- US$45.00

Two pieces of brand new high torque 9V-24V DC gearhead motor.

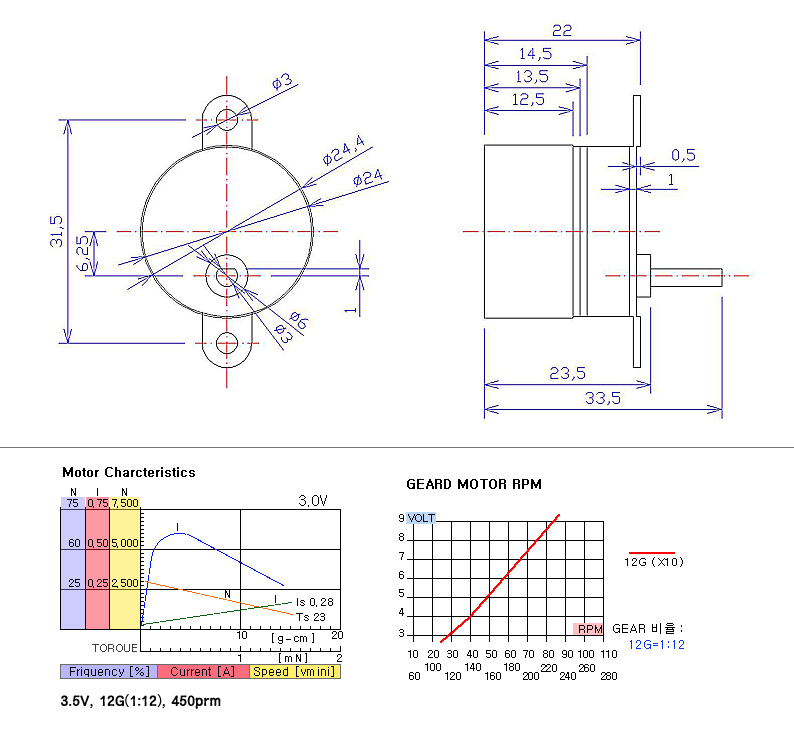

CHUNJO-Gearhead Motor (1 PC) -- Chun Jo ( Korea ) Gear head motor --US$29.00

5V extra high torque DC gearhead motor. It can handle 5Kg load using 5V DC power. The motor is manufactured by CHUN-JO Corporation , South Korea . The motor is used and removed from the equipment, but it is in excellent condition and fully tested. Check our steel motor mount for this motor. Also, check our largest selection of motor cooling fans. The working DC voltage can be between 1.5V-9V.

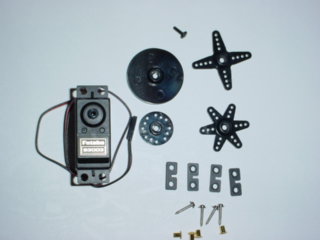

SERVO-Standard (1 PC) -- Standard Futaba Servo --US$15.00



We do carry full Futaba Servo Collections , please send us an email with Futaba part number and quantities for a competitive quotation.

This is a standard Futaba standard servo that has the following specification:

Manufacturer: Futaba Corporation (RC servo division)
Dimension: 40.4 x 19.8 x 36mm
Weight: 44.4g
Output torque: 3.0kg .cm. Please check Conversion Calculator for Units of TORQUE (e.g. kg.cm, oz-inch etc.)
Control System: +pulse control 1520us neutral
Operation Angle: Rotary system, one side 45 degree or greater (including trim)
Power Supply: 4.8V or 6.0V
Power Consumption: 6.0V 8mA (at idle)
Operation Speed: 0.22 sec/60 degree

NOTE: The servo accessories may be different from the photo shown.

This Futaba servo can be directly connected to MIT Handyboard expansion servo connector without any modification. The HB expansion board can drive up to SIX (6) servos and the servo control software library included. The package includes all the parts, nuts, and different size of horns.Some of our OOPIC packages also includes this servo. It is brand new.

To modify the servo to have a 360 degree rotation, please follow the link here.

Check the cog and link kit for Futaba servos.



SERVO-Standard (Pack of 2 PCS) -- Standard Futaba Servo --US$28.00

This is a pack of 2 standard Futaba servos (Part number: SERVO-STANDARD) which includes all the parts. This is great to build your own robots. Check the cog and link kit for Futaba servos.



SERVO-Standard (Pack of 4 PCS) -- Standard Futaba Servo --US$55.00

This is a pack of 2 standard Futaba servos (Part number: SERVO-STANDARD) which includes all the parts. This is great to build your own robots. Check the cog and link kit for Futaba servos.



SERVO-Standard (Pack of 6 PCS) -- Standard Futaba Servo --US$82.00

This is a pack of 6 standard Futaba servos (Part number: SERVO-STANDARD) which includes all the parts. This is great to build your own robots. Check the cog and link kit for Futaba servos.



SERVO-High Torque (1 SET) -- Extra High Torque Servo --US$139.00

This extra high torque servo has a torque rating 21.0kg .cm. It has the following specifications:


Dimension: 59.2 x 28.8 x 49.8 mm
Weight: 4.48oz ( 127g )
Output torque: 264 oz .-in. Please check Conversion Calculator for Units of TORQUE (e.g. kg.cm, oz-inch etc.)
Control System: +pulse control 1310us neutral
Operation Angle: Rotary system, one side 45 degree or greater (including trim)
Power Supply: 4.8V or 6.0V
Operation Speed: 0.2sec/60 degree @6.0V

The package includes all the parts, nuts, and different size of horns. It is brand new part.

NOTE: This servo CANNOT be modified for 360 degree of rotation.

NOTE: The servo accessories may be different from the photo shown.

Check the cog and link kit for Futaba servos.

SERVO-High Torque (Pack of 2 PCS) -- Extra High Torque Servo --US$270.00

This is a pack of 2 erxtra high torque servos (Part number: SERVO-High-Torque) which includes all the parts. This is great to build your own robots. Check the cog and link kit for Futaba servos. Check the cog and link kit for Futaba servos.

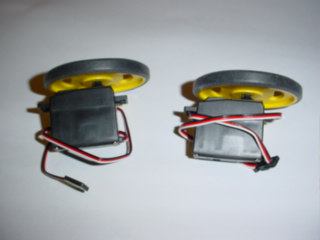

SERVO-Standard with Wheels (Pack of 2 PCS) -- Standard Futaba Servo with wheels--US$42.00

This is a pack of 2 standard Futaba servos (Part number: SERVO-STANDARD) with attached wheels. The package does not include nuts and different size of horns . It includes a wheel. To modify the servo to have a 360 degree rotation, here is the instructions. Servo wheels color may be different from the photo shown.





SERVO-Standard with Cog and Link (Pack of 2 PCS) -- Standard Futaba Servo with cog and link--US$62.00

This is a pack of 2 standard Futaba servos (Part number: SERVO-STANDARD) with cog and link kit .To modify the servo to have a 360 degree rotation, here is the instructions.

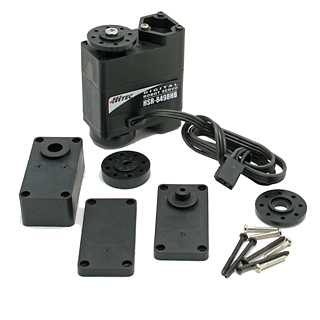

SERVO- HSR8498HB -- HSR8498HB Digital Servo-- US$89.00

This digital servo motor creates the foundation driving component of the Robonova robot . It is well suited for a wide range of robotics applications. The motor is reconfigurable with different shell combinations with the included accessories.

The servo motor comes with a selection of accessories that allow the motor to be custom configured for your application. Out of the box, the motor is configured with an idler shaft. The horn spline is 24 segments at 5.76 degree pitch. The internal drive train consists of Karbonite gears with dual ball bearings. Angular rotation is 180 degrees. Here is the specification.

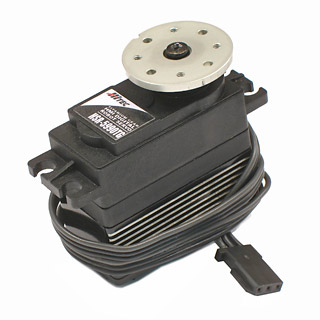

SERVO- HSR5990TG -- HSR5990TG Digital Servo-- US$199.00



At well over 300 oz-in of torque, this titanium-geared robotics servo is one of the most powerful on the market. It boasts a watertight design with an internal heat sink and programmable digital amplifier with Mosfet drive. This servo supports the HMI protocol, allowing it to provide feedback on servo position.

This servo comes with a metal servo horn and an additional axial-mounting hole on the underside. The HSR-5990 has a coreless motor, titanium alloy gears and ball bearings for smoother operation and significantly longer life when compared to normal servos.

The Titanium servo has a Hitech/JR connector which mates directly with a 0.1" 3-pin header. The servo accepts Hitec servo horns, and additional metal horns are available in various shapes. Here is the datasheet and HiTech application note about HMI protocol.

The color layout of the wires for the titanium servo is different than that of most other servos. On this servo, the grey wire is the signal wire (typically white or yellow on other servos). The middle black wire is 6 to 7.4 V power, while the farther black is Ground.

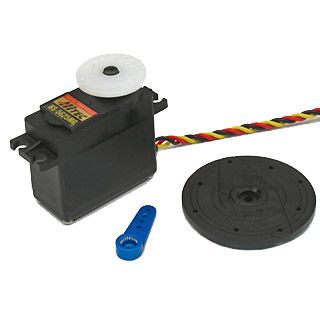

SERVO- HS5625MG -- HS5625MG Digital Servo-- US$79.00

The HS-5625 is a digital, metal robotics servo with about twice the available torque and 4x the durability of a standard servo. Because this is a latest-generation programmable digital servo, it offers faster response time and more precise control, while greatly reducing the deadband common in standard servos. Here are the datasheet and application note.

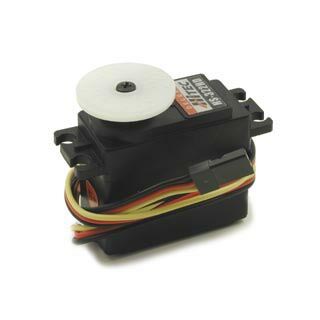

SERVO- HS322HD -- HS322HD Servo-- US$19.00

The popular Hitec HS-322HD servo. The Karbonite gears in this servo are nearly 4 times stronger than standard (nylon) gears and provide virtually wear-free performance.

This servo comes with mounting hardware, mounting grommets, and 4 servo horns. The HS-322HD servo has heavy duty gears for smoother operation and longer life when compared to normal servos.

This servo has a Hitech/JR connector which mates directly with a 0.1" 3-pin header. On all Hitec servos the Black wire is 'ground', the Red wire (center wire) is 'power', and the yellow (third) wire is 'signal'.

Voltage Range Operating Speed Output Torque Weight
4.8V - 6V 0.19sec/60 degrees at 4.8V 3kg.cm (41.6oz.in) at 4.8V 43.0g (1.51oz)

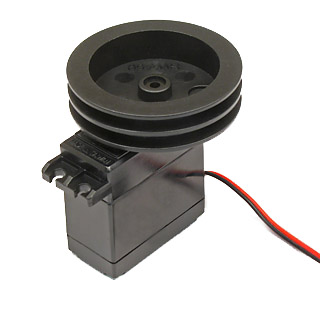

SERVO- 1T-360 DEGREE- SERVO-- 1T 360 Degree Servo-- US$39.00

A great servo for robotic heads and turrets. This GW servo can pivot a full 360 degrees and has about twice the available torque of our standard servo. This servo comes with the servo horn shown and horn mounting hardware.

The 1T servo can be swept a full 360 degrees, and has 100 oz-in of torque. With a 1.3 second sweep time from 0 to 360 degrees, this servo is ideal for small robotic heads and sensor turrets to provide full situational awareness. Dual ball bearings for shaft support provide smooth and fluid motion.

This is a standard, rather than continuous rotation, servo.

This servo comes with a 2-inch circular horn which can be epoxied to a head or turret. The servo has a Hitech/JR connector which mates directly with a 0.1" 3-pin header. The servo spline has 23 teeth and accepts GWS servo horns, available in various shapes.

Specifications
Voltage Operating Speed Output Torque Weight Dimensions
4.8V 0.26 sec/60 degrees 6.6 kg.cm (92 oz.in) 50.0g (1.80oz) 1.6" x 0.78" x 1.5"
40.00 x 20.00 x 37.00 mm
6V 0.21 sec/60 degrees 7.6 kg.cm (106 oz.in)

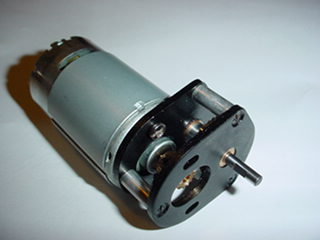

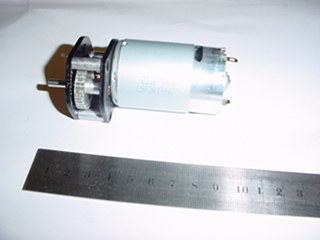

MOTOR-RS-755-MOTOR-GEARBOX -- Mabuchi RS-755 with Gear box -- US$85.00

MOTOR-RS-550-MOTOR-GEARBOX -- Mabuchi RS-550 with Gear box -- US$63.00


Manufacturer: Mabuchi Motors (Japan)
Operating voltage: (RS550) DC 6V-14V , (RS755) DC9V-36V
Gear Ratio: 1:4

Dimension (with gear box): 90mm (length)

RS550 datasheet

RS755 datasheet

This high torque DC motor comes with gear box. It has high torque and high speed. The shaft diameter is 3mm . It is great for heavy duty applications. It is brand new. Check our steel motor mount for this motor.



MOTOR-RS-380-MOTOR-GEARBOX -- Mabuchi RS-380 with Gear box -- US$49.00

Manufacturer: Mabuchi Motors (Japan)
Operating voltage: DC 2.4V-12V
Torque (7V): 839g .cm Torque (14V): 959g .cm
Speed under 7V without load: 16,200 rpm
Speed under 12V without load: 21,900 rpm
Current drawn: 0.5A -0.7A
Diemnsion (Motor body): 37.8mm (length) x 29.20mm (diameter)

Dimension (with gear box): 75mm (length)

RS380 datasheet

This high torque DC motor comes with gear box. It has high torque and high speed. The shaft comes with screw for attachment. It is great for high duty applications. It is brand new. Check our steel motor mount for this motor.

NOTE: The gearhead may be different from the photo shown. However, it fits to the motor and provide the same functionality.

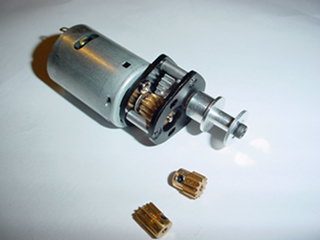

MOTOR-RS-550 -- Mabuchi RS-550 Motor -- US$30.00

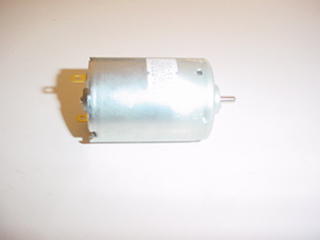

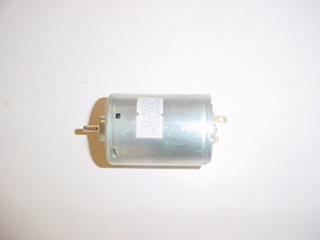

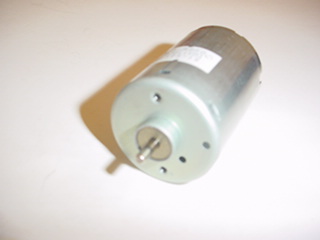

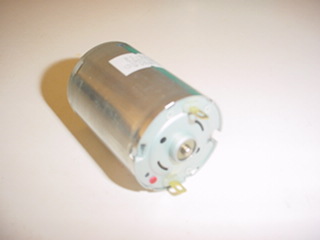

MOTOR-RS-545PH -- Mabuchi RS-545 Motor -- US$18.00

This is a Mabuchi RS-545PH motor. This motor will work with this gearbox. This is a brand new part. Check our steel motor mount for this motor. Here is the datasheet.



MOTOR-RS-540SH -- Mabuchi RS-540 Motor -- US$22.50

This is a Mabuchi RS-540SH motor. This motor will work with this gearbox. This is a brand new part. Check our steel motor mount for this motor. Here is the datasheet.

Specifications:

  • Voltage Range: 12.0V
  • Normal Voltage: 7.20V
  • Normal Load: 19.6mN.m (200g.cm)
  • Speed at No Load: 15,800 RPM
  • At normal load speed: 14,000 RPM
  • At normal load current 6.0A
  • Shaft Diameter: 3.00mm

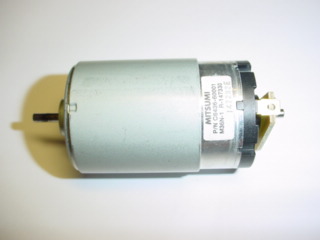

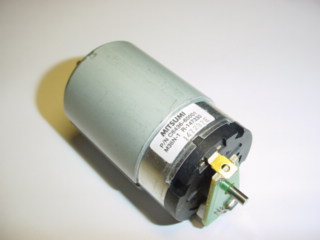

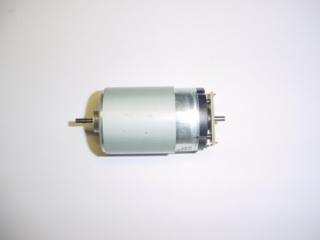

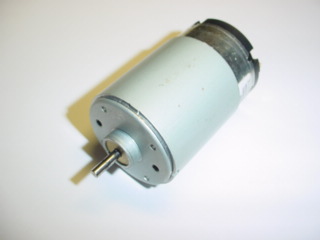

MOTOR-MITSUMI -- MITSUMI- Motor -- US$12.50

This is a RS550 type motor manufactured by Mitsumi. This motor will work with this gearbox. It has double motor shaft at each end with sharft diameter 3mm. The motor diameter is 38mm. The length of motor is 84mm (including two shafts). Each shaft length is 15mm and 13mm respectively. The typical voltage is ranged from 6V to 12V. This is a brand new part. Check our steel motor mount for this motor.



FAUL-Gearhead Motor (1 PC) -- 6-9V gearhead DC motor --US$39.50

Swiss made FAULHABER metal gearhead motor. The part number is "1524E009S" The gear ratio looks like 262:1. The output RPM will be around 15000/262 = 57rpm. This gearhead motor consumes as little as 15-20mA current under load. The length of motor body is around 4.7cm , diameter is 1.4cm , shaft length is 1.3cm , and shaft diameter is 2.2mm . Here is the datasheet . It is used and removed from equipment, but is fully tested and in excellent condition. Check our steel motor mount for this motor.

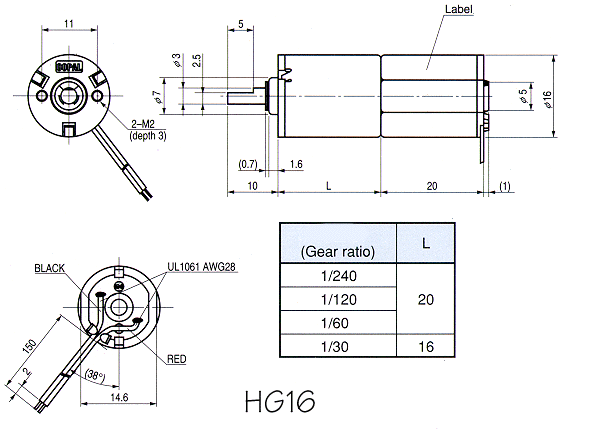

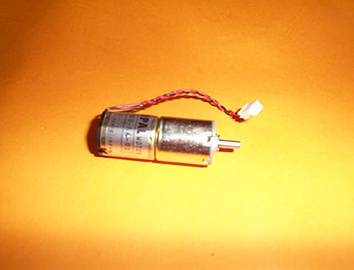

COPAL-Gearhead Motor (1 PC) -- 6-9V gearhead DC motor --US$39.50

COPAL gearhead DC motor is great for robotic applications. It has a high torque and consume a little current. The shaft diameter is 2.5mm , and the length of the motor body is 4.2cm (the body of motor and attached gearbox). The diameter of the motor body is 1.5cm The length of the shaft is 1cm . The DC motor is brand new and manufactured by COPAL (Part number: HG16-060-AA-02), JAPAN. Check our steel motor mount for this motor.

HG16 Series Standard Specifications
Gear Ratio:1/60
Tolerance Torque g-cm: 420
N-cm: 4.12
Rated Torque g-cm: 350
N-cm: 3.43
Rated Speed min-1 (r.p.m.): 175
Rated Current: mA 300
No Load Speed min-1 (r.p.m.) 210
Stall Current: mA 1300
Weight (g): 27

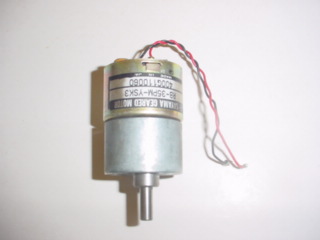

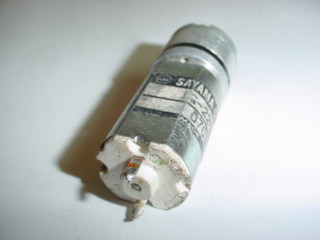

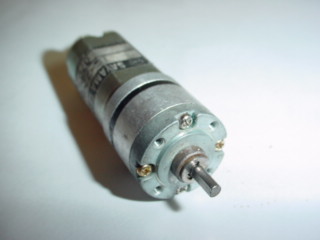

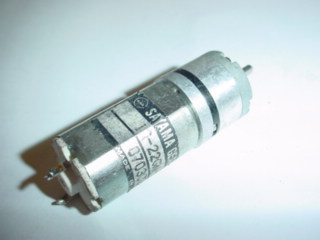

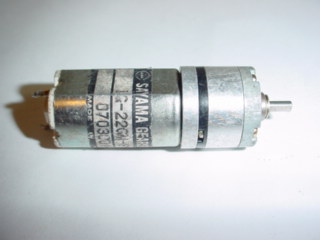

SAYAMA1-Gearhead Motor 6-12V gearhead DC motor -- US$14.50

SAYAMA gearhead DC motor provided a very high torque and little current consumption. The shaft diameter is 2.1mm , and the length of the motor body is 6cm (the body of motor and attached gearbox). The diameter of the motor body is 2cm .The length of the shaft is 0.7cm . The DC motor is used and manufactured by SAYAMA (Part number: IG-22EM-SNC), JAPAN. The motor is fully tested. Check our steel motor mount for this motor.



SAYAMA2-Gearhead Motor 6-12V gearhead DC motor -- US$14.50

SAYAMA gearhead DC motor provided a very high torque and little current consumption. The shaft diameter is 0.5cm , and the length of the motor body is 7.9cm (the body of motor and attached gearbox). The diameter of the motor body is 2cm .The length of the shaft is 1cm . The DC motor is used and manufactured by SAYAMA (Part number: IG-22BXM-SUE7-A), JAPAN. The motor is fully tested. Check our steel motor mount for this motor.

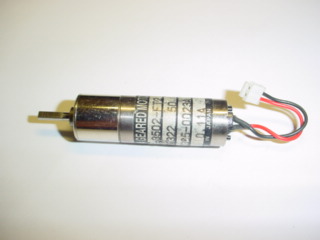

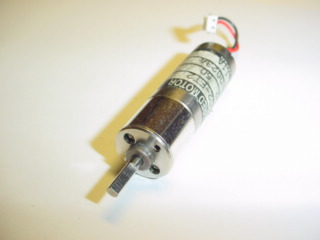

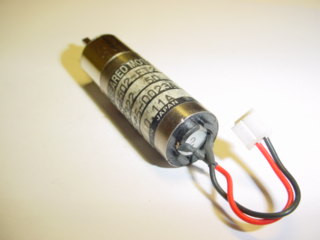

SAYAMA3-Gearhead Motor 6-12V gearhead DC motor -- US$19.50

SAYAMA gearhead DC motor provided a very high torque and little current consumption. The shaft diameter is 3mm , and the length of the motor body is 66mm (including motor shaft). The diameter of the motor body is 16mm .The length of the motor shaft is 15mm. The DC motor is used and manufactured by SAYAMA (Part number:SCL16G-3502-FT2), JAPAN. The motor is fully tested and in excellent condition. Check our steel motor mount for this motor.



SAYAMA-Gearhead Motor 6-24V gearhead DC motor -- US$79.00

SAYAMA gearhead DC motor provided a very high torque and little current consumption. The shaft diameter is 0.5cm , and the length of the motor body is 7.8cm (the body of motor and attached gearbox). The diameter of the motor body is 3.5cm .The length of the shaft is 1.5cm . The DC motor is brand new and manufactured by SAYAMA (SAYAMA Part number: RB-35PM-YSK3), JAPAN. Hard-to-find excellent quality gearhead motor. Check our steel motor mount for this motor.

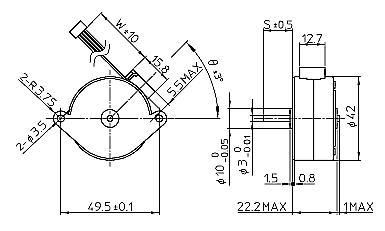

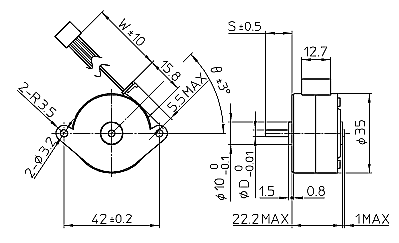

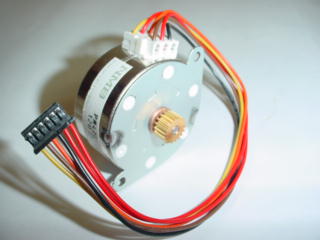

STEPPER-Motor-5V(1 PC) -- 5V to 12V 5-lead unipolar stepper motor --US$19.95



This is a 5V-12V stepper motor which has 5 leads Unipolar stepper motor. It has an internal resistance of 30 ohm. You can use our stepper driver kits and driver chip to drive it. By modifying a Handyboard , you can add the stepper motor into it. The stepper motor is brand new and manufactured by MINEBEA Electronics Co,. Ltd, Japan . The part number is PM 35L -048-HPH7. It is brand new.



STEPPER-Motor-5V (Pack of 2 PCS) -- 5V to 12V 5-lead unipolar stepper motor --US$37.00

The package contains 2 pcs of STEPPER-Motor-5V.



STEPPER-Motor-9V(1 PC) -- 9V to 24V 6-lead unipolar stepper motor --US$29.50

This is a 9V-24V stepper motor which has 6 leads Unipolar stepper motor. It has an internal resistance of 30 ohm. You can use our stepper driver kits and driver chip to drive it. By modifying a Handyboard , you can add the stepper motor into it. The stepper motor is brand new and manufactured by MINEBEA Electronics Co,. Ltd, Japan . The part number is PM 42L -048-TBC2. It is brand new.



STEPPER-Motor-9V(2 PCS) -- 9V to 24V 6-lead unipolar stepper motor --US$56.00

The package contains 2 pcs of STEPPER-Motor-9V

STEPPER-H546-STEPPER -- Unipolar stepper motor --US$69.95



103H546-0440 STEPPER MOTOR SPECIFICATIONS

Step Angle:
Voltage:
Current:
Resistance:
Inductance:
Holding Torque:
Rotor Inertia:
Weight:
Wire:

1.8 deg/step
3.15 V
1 A/Phase
3.15 Ohm/Phase
2.8 mH/Phase
1.5 Kg.cm
30 g.cm square
200 g
Phase A: Orange, White(Center tap), Blue
Phase B: Red, Black(Center tap), Yellow

Here is the H546 stepper motor datasheet. This motor is used in our micromouse robot. It is made in Japan. Our stepper driver kits and driver chips are able to drive it.



STEPPER-H546-SET -- Unipolar stepper motor with 48mm wheel set --US$86.00

This is the H546 stepper motor with 48mm aluminum wheel. This wheels fits into the H546 stepper motor and comes with screw. Our stepper driver kits and driver chip are able to drive it.

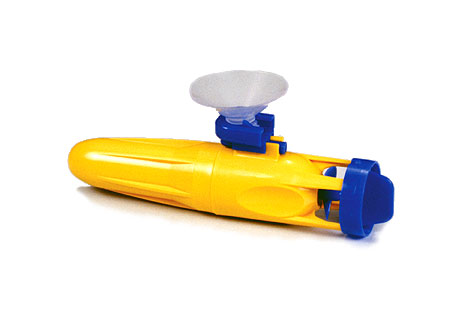

MOTOR-Submarine (Assembled) -- Assembled Mabuchi Submarine Motor-- US$11.95

Manufacturer: Mabuchi Motors (Japan)
Operating voltage: DC 1.5V (one AA battery)
Torque at 1.5V: 4.0g -cm
Speed under 1.5V without load: 8,600 rpm
Speed under 1.5V with load: 6,400 rpm
Current drawn with load: 500mA

Educational Construction in the summer is all about fun with submarine motors! Ever since Mabuchi stopped the production of their underwater motor years ago there have been many disappointed watercraft fans who have take the time to construct a waterproof model boat with no means to power it.

Basic Specifications

  • Total length: 123cm
  • The Submarine Motor features a suction cup ( 123mm diameter), which can be attached to containers, such as plastic bottles or under the hulls of watercraft models.
  • Rudder can be set for auto-steering.
  • Set includes type FA-130 Motor, suction cup, rudder, one sided tape and plastic disk (for sticking suction cup onto), and screws.
  • Maximum continuous running time: 2hours
  • Requires one R6/AA/UM3 Battery (Sold Separately)

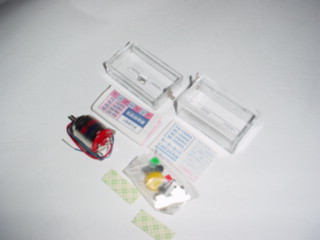

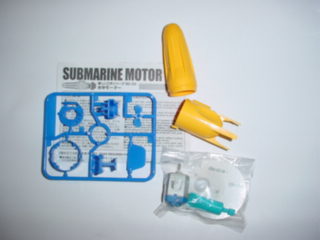

MOTOR-Submarine (Kit) -- Unassembled Mabuchi Submarine Motor kit -- US$10.95

Motor Manufacturer: Mabuchi Motors (Japan)
Operating voltage: DC 1.5V (one AA battery)
Torque at 1.5V: 4.0g -cm
Speed under 1.5V without load: 8,600 rpm
Speed under 1.5V with load: 6,400 rpm
Current drawn with load: 500mA

Educational Construction in the summer is all about fun with submarine motors! Ever since Mabuchi stopped the production of their underwater motor years ago there have been many disappointed watercraft fans who have take the time to construct a waterproof model boat with no means to power it.

Basic Specifications

  • Total length: 12.3cm
  • The Submarine Motor features a suction cup ( 35mm diameter), which can be attached to containers, such as plastic bottles or under the hulls of watercraft models.
  • Rudder can be set for auto-steering.
  • Set includes type FA-130 Motor, suction cup, rudder, one sided tape and plastic disk (for sticking suction cup onto), and screws.
  • Maximum continuous running time: 2hours
  • Requires one R6/AA/UM3 Battery (Sold Separately)

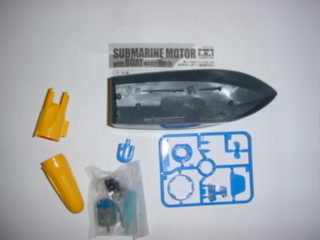

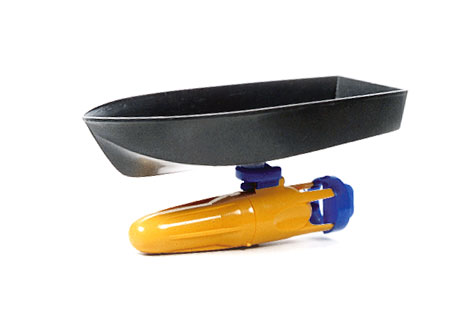

MOTOR-Submarine-Boat (Kit) -- Unassembled Mabuchi Submarine Motor kit with Boat -- US$15.95

This is a submarine motor which includes a sucker that can attach to your model ship. The package is water-proof and it provides propulsion to your model on water, and includes a boat. Assembly instructions are included.

Submarine motor comes with boat hull. Suction cup is supplied for easy attachment to boat. Polystyrene boat can be easily modified and painted

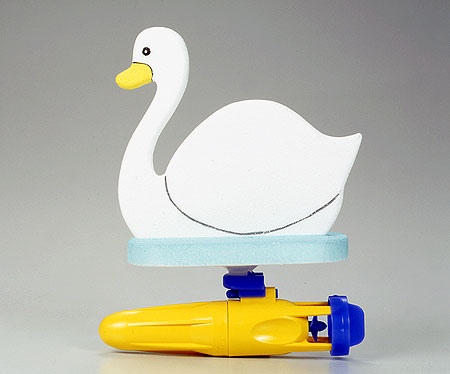

MOTOR-Submarine-Float (Kit) -- Unassembled Mabuchi Submarine Motor kit with Float -- US$15.95

The Submarine Motor has been coupled with a 170X 100 mm float. Kit contains an assembly type submarine motor and styrofoam float. Employs one R6/AA/UM3 battery (sold separately).

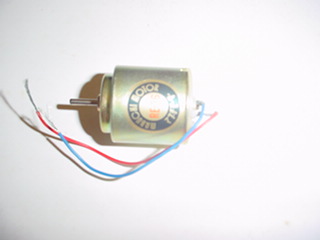

MOTOR-RE36-MOTOR -- Mabuchi RE36 motor -- US$12.00

Manufacturer: Mabuchi Motors (Japan)
Operating voltage: DC 1.5V - 4.5V
Torque at 3.0V: 20g -cm
Speed under 3.0V without load: 8,000 rpm
Speed under 3.0V with load: 6,000 rpm
Current drawn with load: 890mA
Motor axle diameter: 2.3mm



MOTOR-RE130-MOTOR -- Mabuchi RE130 motor only -- US$8.50

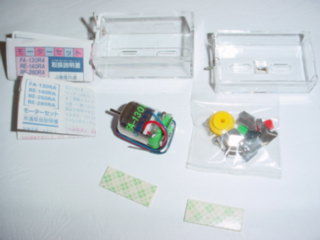

MOTOR-FA130RA -- Mabuchi FA-130RA small electric motor set with gear set -- US$16.50

Manufacturer: Mabuchi Motors (Japan)
Operating voltage: DC 1.5V - 3.0V
Torque at 1.5V: 4.0g -cm
Speed under 1.5V without load: 8,600 rpm
Speed under 1.5V with load: 6,400 rpm
Current drawn with load: 500mA
Motor axle diameter: 2.0mm

The DC motor comes with battery holder, switch and mounting bracket kit with screws. it also comes with FOUR different gear heads. This motor is a brand new package. It is brand new. Check our steel motor mount for this motor.



MOTOR-RE140-MOTOR -- Mabuchi RE140 motor only -- US$8.50

MOTOR-RE140RA -- Mabuchi RE-140RA small electric motor set with gear set -- US$17.00

Manufacturer: Mabuchi Motors (Japan)
Operating voltage: DC 1.5V - 3.0V
Torque at 1.5V: 5.0g -cm
Speed under 1.5V without load: 7,700 rpm
Speed under 1.5V with load: 5,400 rpm
Current drawn with load: 550mA
Motor axle diameter: 2.0mm

The DC motor comes with battery holder, switch and mounting bracket kit with screws. it also comes with FOUR different gear heads. This motor is a brand new package. It is brand new. Check our steel motor mount for this motor.



MOTOR-RE260-MOTOR -- Mabuchi RE260 motor only -- US$9.50

MOTOR-RE260RA -- Mabuchi RE-260RA small electric motorwith gear set-- US$19.00

Manufacturer: Mabuchi Motors (Japan)
Operating voltage: DC 1.5V - 3.0V
Torque at 3.0V: 10.0g -cm
Speed under 3.0V without load: 11,600 rpm
Speed under 3.0V with load: 8,900 rpm
Current drawn with load: 700mA
Motor axle diameter: 2.0mm

The DC motor comes with battery holder, switch and mounting bracket kit with screws. it also comes with FOUR different gear heads. This motor is a brand new package. It is brand new. Check our steel motor mount for this motor.



MOTOR-RE280-MOTOR -- Mabuchi RE280 motor only -- US$10.50

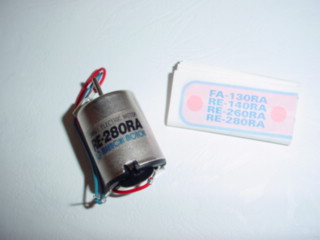

MOTOR-RE280RA -- Mabuchi RE-280RA small electric motorwith gear set -- US$22.00

Manufacturer: Mabuchi Motors (Japan)
Operating voltage: DC 1.5V - 4.5V
Torque at 3.0V: 15.0g -cm
Speed under 3.0V without load: 8,800 rpm
Speed under 3.0V with load: 6,600 rpm
Current drawn with load: 650mA
Motor axle diameter: 2.0mm

The DC motor comes with battery holder, switch and mounting bracket kit with screws. it also comes with FOUR different gear heads. This motor is a brand new package. It is brand new. Check our steel motor mount for this motor.

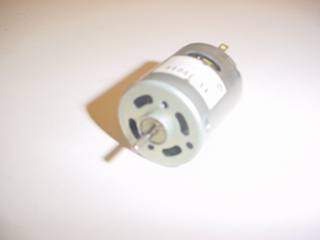

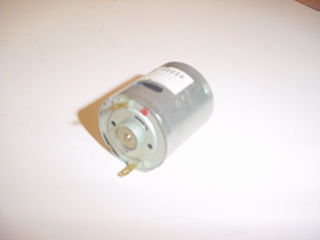

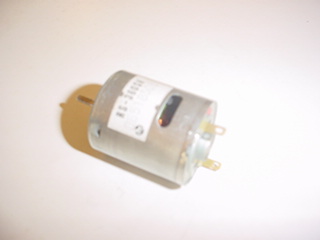

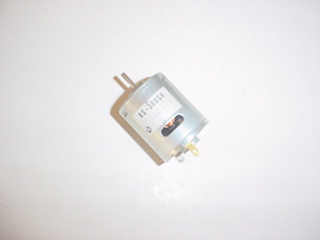

MOTOR-RS360SH -- Mabuchi RS-360SH DC Magnet motor -- US$15.00

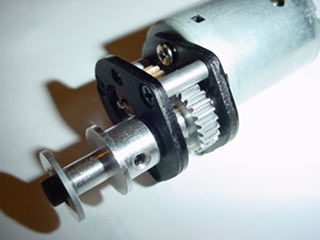

This motor is a brand new package, and it works with our gearbox. Check our steel motor mount for this motor. Here is the datasheet.



MOTOR-RS380PH -- Mabuchi RS-380PH DC Magnet motor -- US$25.00

Manufacturer: Mabuchi Motors (Japan)
Voltage Range : DC 12V
Normal Voltage: DC 7.2V
Normal Load: 100g .cm
Speed at No Load: 16,400 r.p.m.

At normal load -- Speed: 14,200 r.p.m

At normal load --Current: 2.90A
Shaft diameter: 2.30mm

RS380 datasheet

This motor is a brand new package, and it works with our gearbox. Check our steel motor mount for this motor.

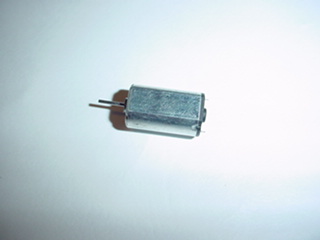

MOTOR-Standard -- Mabuchi DC Motor -- US$3.50

The motors are made by the Japanese company Mabuchi. They are normally used to rewind film in Polaroid cameras. For their size, they have a surprisingly high amount of torque. These motors are used in MIT 6.270 LEGO Robot Design contest . It is brand new.

Here are the specifications of the motor:

Manufacturer: Polaroid Co. (Made by a Japanese company called Mabuchi Motors )
No Load Speed @ 13.8 volts: 19,000 rpm
No Load Speed @ 6 volts: approx 7,200 rpm
Stall Torque: 0.0049 N-m 0.043 in -lbf
Nominal Voltage: 6.9 Volts
Overall Length: 35.8 mm 1.41 in
Body Width: 22.3 mm 0.878 in
Body Height: 15.0 mm 0.590 in
Shaft Diameter: 2 mm 0.079 in
Overall Weight: 28 g 0.062 lbs



MOTOR-Mini-A -- Mini DC Motor Type A -- US$4.95



This is a hard to find 1.5V-3.0V tiny DC motor. The motor body length is about 20mm , the body shape is 6mm x 8mm (top view). The shaft diameter is 0.8mm .Great for BEAM robot application. It is brand new motor.



MOTOR-Mini-B -- Mini DC Motor Type B -- US$4.95



This is a 1.5V-3.0V tiny DC motor. The motor body length is about 20mm , the body shape is 10mm x 12mm (top view). The shaft diameter is 0.8 mm .Great for BEAM robot application. It is brand new motor.



MOTOR-Mini-C -- Mini DC Motor Type C -- US$4.95

This is a 1.5V-3.0V tiny DC motor. The motor body length is about 28mm , the body diameter is 11mm (top view). The shaft diameter is 1 mm .Great for BEAM robot application. It is brand new motor.



MOTOR-Mini-D -- Mini DC Motor Type D -- US$4.95

This is a 1.5V-3.0V tiny DC motor. The motor body length is about 32mm , the body diameter is 12mm (top view). The shaft diameter is 1.1 mm .Great for BEAM robot application. It is brand new motor.

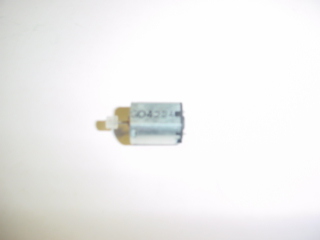

MOTOR-Mini-E -- Mini DC Motor Type E -- US$4.95

This is a 1.0V-3.0V tiny DC motor. The motor body length including the shaft is about 22mm , the body diameter is 10mm x 11mm (top view). The shaft diameter is 1 mm .The motor comes with a gearhead as shown on the photo above. Great for BEAM robot and solar applications. It is brand new motor. Complete gear set is available.

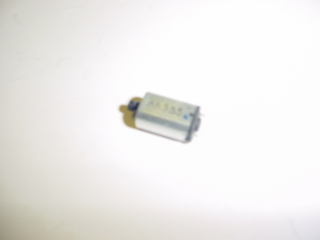

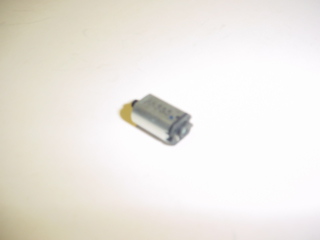

MOTOR-Mini-F -- Mini DC Motor Type F -- US$4.95

This is a 1.0V-3.0V tiny DC motor. The motor body length including the shaft is about 20mm , the body diameter is 10mm x 8mm (top view). The shaft diameter is 1 mm .The motor comes with a gearhead as shown on the photo above. Great for BEAM robot and solar applications. It is brand new motor. Complete gear set is available.

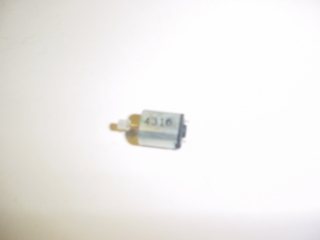

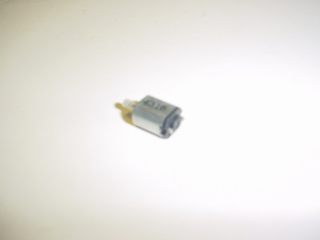

MOTOR-Mini-G -- Mini DC Motor Type G -- US$4.95

This is a 1.0V-3.0V tiny DC motor. The motor body length including the shaft is about 19mm , the body diameter is 8mm x 9mm (top view). The shaft diameter is 1 mm .The motor comes with a gearhead as shown on the photo above. Great for BEAM robot and solar applications. It is brand new motor. Complete gear set is available.

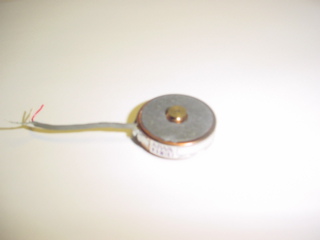

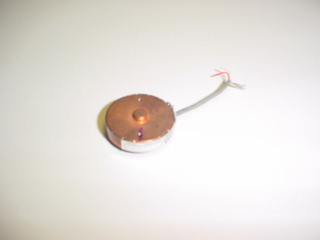

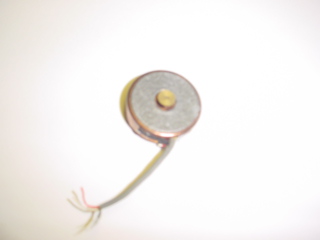

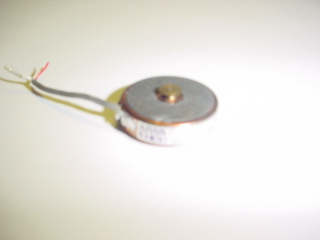

MOTOR-AIWA-A -- AIWA motor-- US$7.00

This is a high quality AIWA NAMIKI DC motor. The motor has this information on the body: 26FL-060". The diameter of the motor is 26mm with 5mm thickness and a small copper pulley motor shaft (the diameter is 6mm) to attach power bands. It is a brand new item. The motor voltage is 1.5V-3V with 500RPM. Made in Japan.

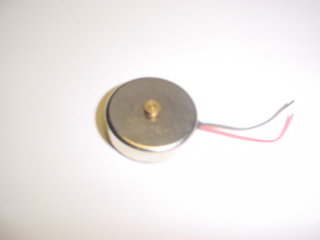

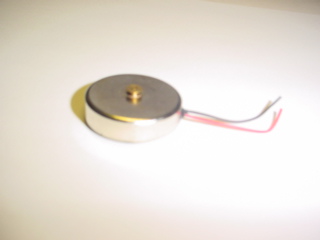

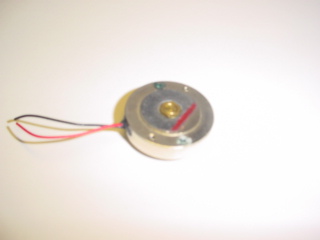

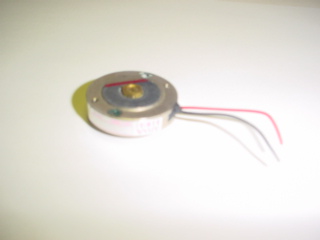

MOTOR-AIWA-B -- AIWA motor-- US$7.00

This is a high quality AIWA NAMIKI DC motor. The motor has this information on the body: 28FL-0602". The diameter of the motor is 28mm with 6mm thickness and a small copper pulley motor shaft (the diameter is 6mm) to attach power bands. It is a brand new item. The motor voltage is 1.5V-3V with 500RPM. Made in Japan.

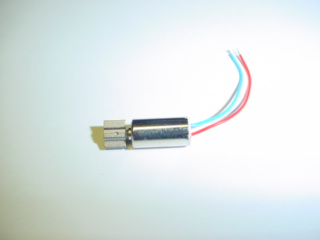

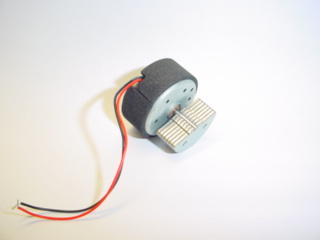

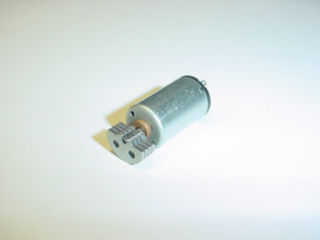

MOTOR-Vibrate A -- Mini Vibrating Motor Type A -- US$6.95

This is a 1.5V tiny vibrating motor. The body length (including vibrating head) is about 27mm. The length of vibrating head is about 4.7mm. The body diameter is 12mm. Great for BEAM robot application. It is originally for pager/mobile phone vibrating applications and it is brand new part.

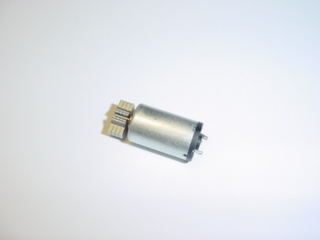

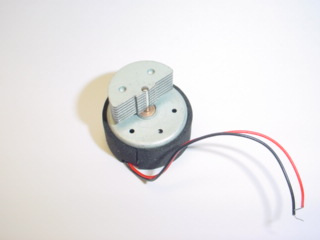

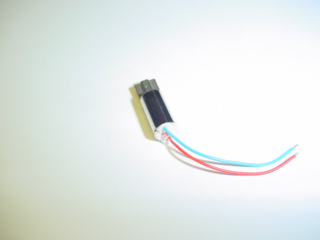

MOTOR-Vibrate B -- Mini Vibrating Motor Type B -- US$9.95

This is a 1.5V mini vibrating motor. The body length (including vibrating head) is about 23mm. The length of vibrating head is about 8.5mm. The body diameter is 24.3mm. Great for BEAM robot application. It is originally for pager/mobile phone vibrating applications and it is brand new part. There is a black rubber protecting the motor body.

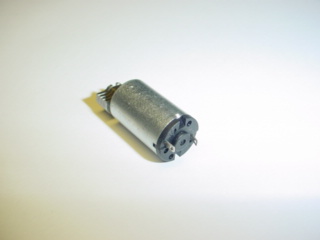

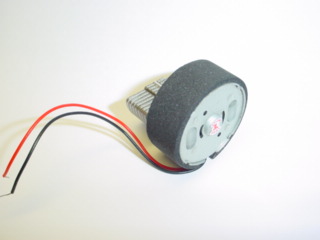

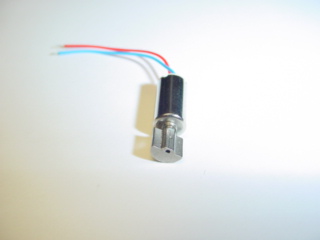

MOTOR-Vibrate C -- Mini Vibrating Motor Type C -- US$9.95

This is a 1.5V tiny vibrating motor. The body length (including vibrating head) is about 17.6mm. The length of vibrating head is about 4.5mm. The body diameter is 6.0mm. Great for BEAM robot application. It is originally for pager/mobile phone vibrating applications and it is brand new part.



DRIVER-H Bridge (1 PC) -- High Power H-Bridge Driver -- US$39.00

The high current H-bridge driver is suitable for driving high power DC or servo motors. It can replace L293D or SN754410 motor driver on MIT Handyboard system for driving high power motors. The H-bridge driver is capable to drive ONE motor with the maximum current rating 25A and at DC 3.5V-17V. It was designed by Chuck McManis . For the specifications and MIT Handyboard system motor driver replacement, please visit:

http://www.mcmanis.com/chuck/Robotics/projects/h-bridge/h-bridge.html

You can use it as a stand-alone high power motor driver for your system. The high power H-bridge driver kit is fully assembled and tested .

Thanks Chuck!



DRIVER-H Bridge (pack of 2 PCS) -- High current H-Bridge driver ...... US$70.00

Pack of 2 High performance H-bridge driver above. Each L293D or SN754410 can be replaced by 4 H-BRIDGE-DRIVER for extra high power motor operation .



DRIVER-H Bridge (pack of 4 PCS) -- High current H-Bridge driver ...... US$145.00

Pack of 4 High performance H-bridge driver above. Each L293D or SN754410 can be replaced by 4 H-BRIDGE-DRIVER for extra high power motor operation.

Other motor drivers are available.






Resources

Solar motors can be found in our solar product page.

For motor driver chips and drivers, please visit our driver selections.

Motor wheels and tires are also available.







shakespeare



Copyright © 2014 ROBOT STORE (HK). All Rights Reserved. Email: info@robotstorehk.com
