Metallic Tank Track, Tank Tread Robot Base Platforms, Heavy Duty Mobile Robot Base Platforms and Robot Arm Platforms





Educational discount applied to all metallic tank track base and mobile robot base. World's lagest selections of Metallic tank track, tank thread and heady duty tracked mobile tank robot, mobile robot base platforms for engineers, experimenters, students, and hobbyist...

Send us an email if you cannot find any metallic tank or base that meets your requirements. We can custom made your tank base based on your requirements.

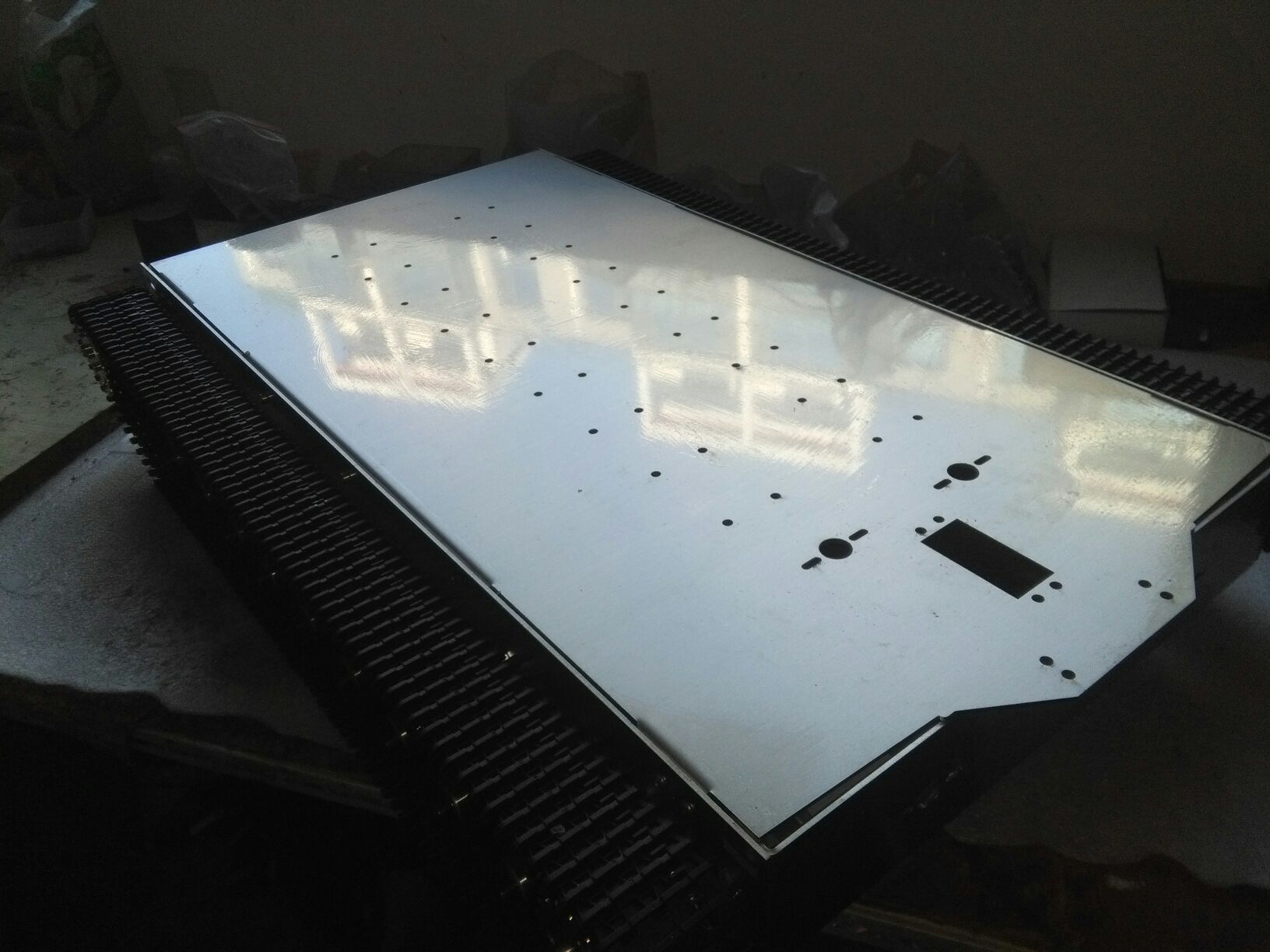

Custom-made tank with length from 50cm to 200cm with payload from 10kg to 150kg. Price inquiry: patrick@robotstorehk.com

BASE - Metallic Base #1 -- US$99.00



A metallic base with 2 DC gearhead motors.The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the base including wheel is about 15cm(Length) x 19.5cm(width) x 5cm (height). The steel base size (wheels excluded) is about 15cm(length) x 13cm(width). The robot weight is 0.6kg. The base width is 16cm (Length). The load for this robot is around 2-3kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Base #2 -- US$389.00

A metallic base with 6 DC gearhead motors.The working voltage is between 7.2-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the base including wheel is about 35cm(Length) x 20cm(width) x 14cm (height). The robot weight is 2.0kg. The load for this robot is around 3-5kg. Educational discount applied to all metallic tank track base and mobile robot base.

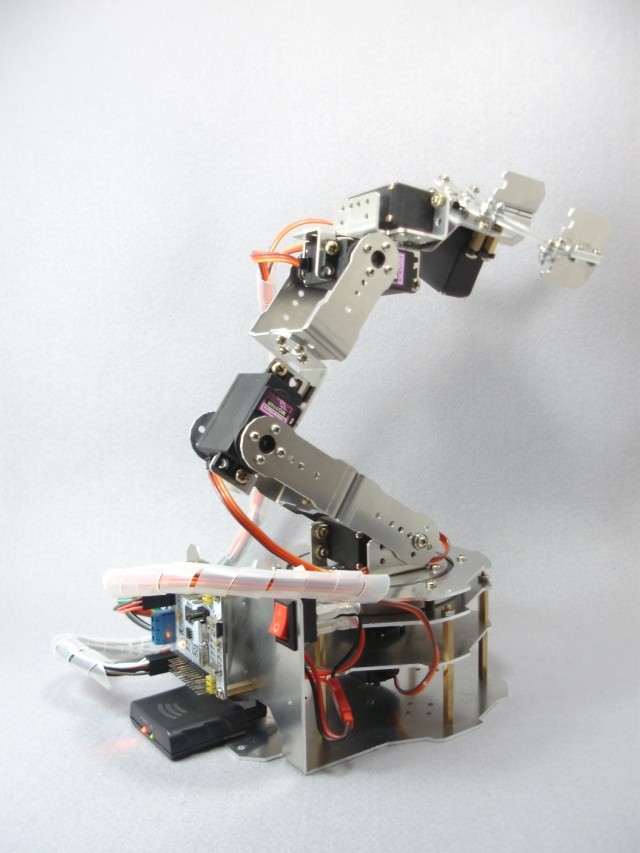

BASE - Metallic Base #3 -- US$489.00

A metallic base with 6 DC gearhead motorsand robot arms with 4-servo.The working voltage is between 7.2-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the base including wheel is about 37cm(Length) x 24.5cm(width) x 15cm (height). The robot weight is 2.3kg. The load for this robot is around 4-5kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Base #4 -- US$199.00

A metallic base with 4 DC gearhead motors and DC motor controller.The working voltage is between 6-9V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the base including wheel is about 20.6cm(Length) x 20cm(width) x 6.5cm (height). The robot weight is 0.62. All electronics are not included. The load for this robot is around 2-3kg. Educational discount applied to all metallic tank track base and mobile robot base.

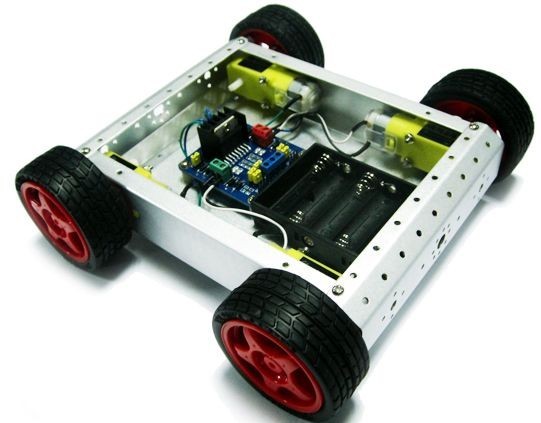

BASE - Metallic Base #5 -- US$149.00



Size

- 20cm(L) x 15cm(W) x 8.5cm(H)

Number of motors

- 4 Gearhead DC motors 1:90 gear ratio

Motor voltage

- 3-18V; Typical 12V

Motor speed

- 100 RPM

Platform weight

- 1.5kg

Platform payload (own weight excluded)

- 7-8kg

Platform building material

-

6061 aluminium alloy

Wheel diameter

- 8.5cm

Extra motors and replacement part can be purchased

  Yes

Max. climbing slot

  45 degree

Water proof

- No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.



BASE - Metallic Base #6 -- US$179.00



Size

- 20cm(L) x 15cm(W) x 9.5cm(H)

Number of motors

- 4 Gearhead DC motors 1:90 gear ratio

Motor voltage

- 3-18V; Typical 12V

Motor speed

- 100 RPM

Platform weight

- 2kg

Platform payload (own weight excluded)

- 20kg

Platform building material

-

6061 aluminium alloy

Wheel diameter

- 9.5cm

Extra motors and replacement part can be purchased

  Yes

Max. climbing slot

  45 degree

Water proof

- No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.



BASE - Metallic Base #7 -- US$269.00

Size

- 40cm(L) x 30cm(W) x 15cm(H)

Number of motors

- 4 Gearhead DC motors with torque 20kg.cm

Motor voltage

- Typical 12V

Motor speed

- 125 RPM

Platform weight

- 5kg

Platform payload (own weight excluded)

- 65kg

Platform building material

-

6061 aluminium alloy

Wheel diameter

- 15cm

Extra motors and replacement part can be purchased

  Yes

Max. climbing slot

  45 degree

Water proof

- No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.

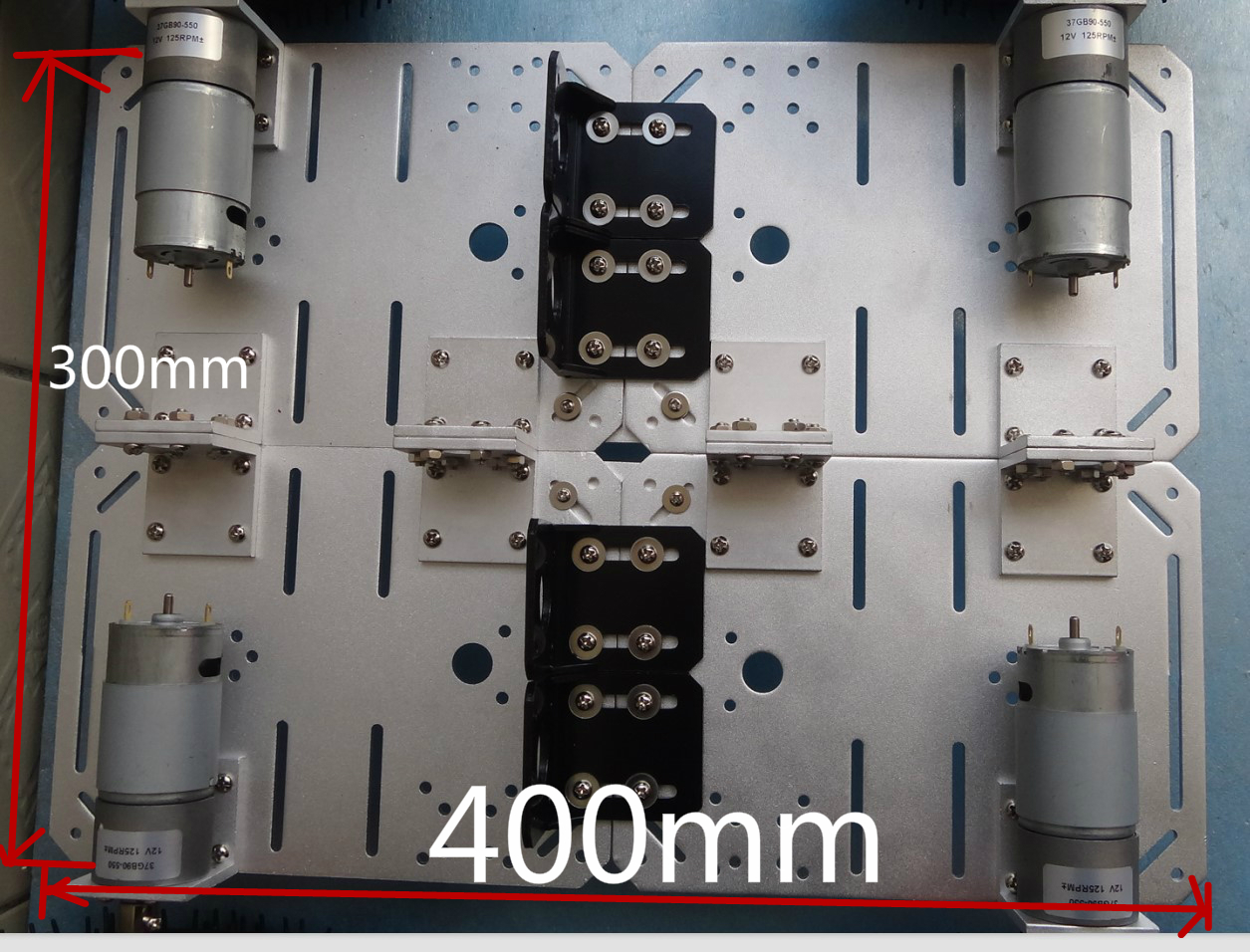

BASE - Metallic Base #8 -- US$289.00

Size

- 40cm(L) x 30cm(W) x 15cm(H)

Number of motors

- 4 Gearhead DC motors with torque 20kg.cm

Motor voltage

- Typical 12V

Motor speed

- 125 RPM

Platform weight

- 5kg

Platform payload (own weight excluded)

- 65kg

Platform building material

-

6061 aluminium alloy

Wheel diameter

- 9.5cm

Extra motors and replacement part can be purchased

  Yes

Max. climbing slot

  45 degree

Water proof

- No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.







BASE - Metallic Base #9 -- US$139.00

A metallic base with 3 DC gearhead motors (one for steering) at 200 RPM. Electronics are NOT included. The working voltage is between 12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the base is about 36cm(Length) x 18cm(width) The wheel diameter is 8.5cm. The robot weight is 2kg. The load for this robot is around 4kg. Educational discount applied to all metallic tank track base and mobile robot base.

BASE - Metallic Base #10 -- US$189.00

A metallic base with 5 DC gearhead motors (one for steering) at 500 RPM. Electronics are NOT included. The working voltage is between 12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the base is about 43cm(Length) x 19cm(width)x 11cm (height) The wheel diameter is 8.5cm. The robot weight is 2kg. The load for this robot is around 4kg. Educational discount applied to all metallic tank track base and mobile robot base.

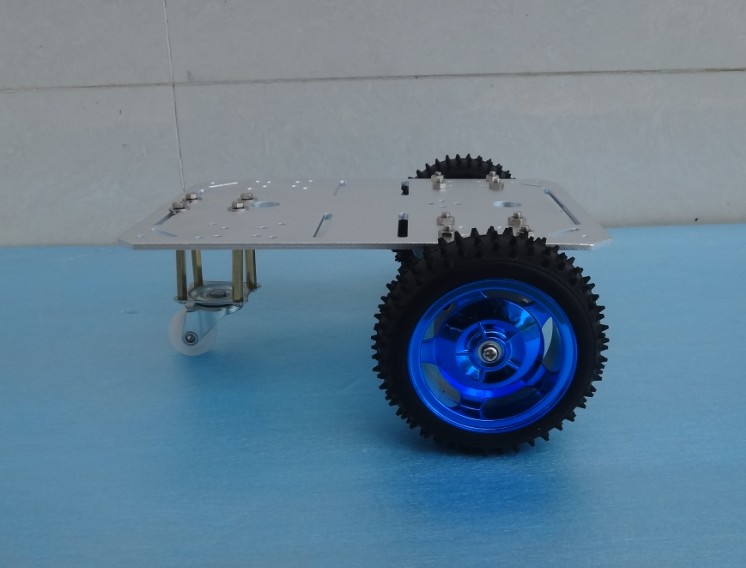

BASE - Metallic Base #11 -- US$48.00





Size

- 20cm(L) x 15cm(W) x 8.5cm(H)

Number of motors

- 2 Gearhead DC motors 1:90 gear ratio

Motor voltage

- 3-18V; Typical 12V

Motor speed

- 100 RPM

Platform weight

- 0.5kg

Platform payload (own weight excluded)

- 3-4kg

Platform building material

-

6061 aluminium alloy

Wheel diameter

- 8.5cm

Extra motors and replacement part can be purchased

  Yes

Max. climbing slot

  45 degree

Water proof

- No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.

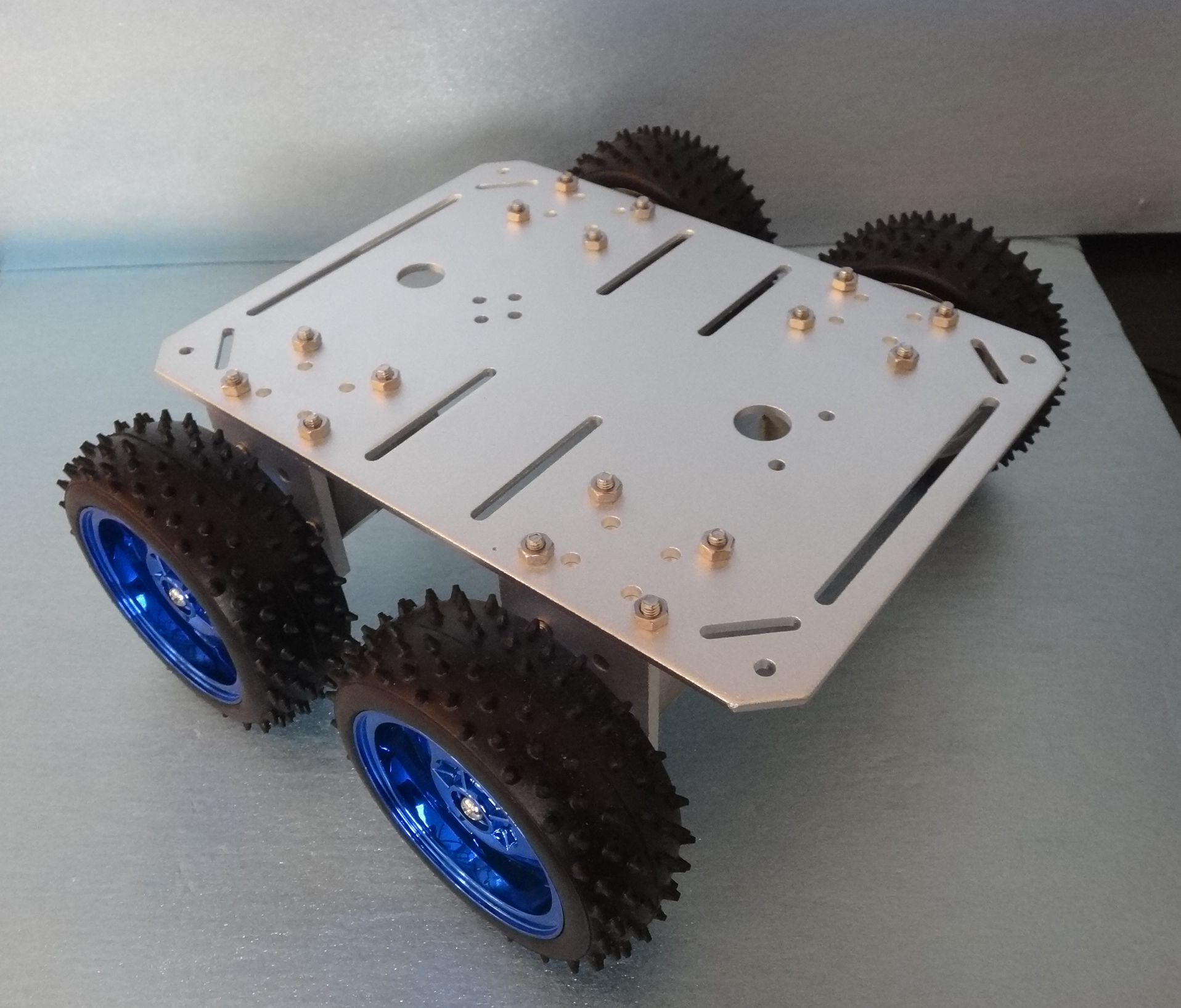

BASE - Metallic Base #12 (Single Deck) -- US$169.00

BASE - Metallic Base #12 (Double Decker) -- US$189.00

Size

- 20cm(L) x 15cm(W) x 9.5cm(H)

Number of motors

- 4 Gearhead DC motors 1:90 gear ratio

Motor voltage

- 3-18V; Typical 12V

Motor speed

- 100 RPM

Platform weight

- 1kg

Platform payload (own weight excluded)

- 5-6kg

Platform building material

-

6061 aluminium alloy

Wheel diameter

- 9.5cm

Extra motors and replacement part can be purchased

  Yes

Max. climbing slot

  45 degree

Water proof

- No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.



BASE - Metallic Base #13 (Single Deck) -- US$139.00

BASE - Metallic Base #13 (Double Decker) -- US$159.00



Size

- 20cm(L) x 15cm(W) x 13cm(H)

Number of motors

- 4 Gearhead DC motors 1:90 gear ratio

Motor voltage

- 3-18V; Typical 12V

Motor speed

- 100 RPM

Platform weight

- 1kg

Platform payload (own weight excluded)

- 5-6kg

Platform building material

-

6061 aluminium alloy

Wheel diameter

- 13cm

Extra motors and replacement part can be purchased

  Yes

Max. climbing slot

  45 degree

Water proof

- No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.

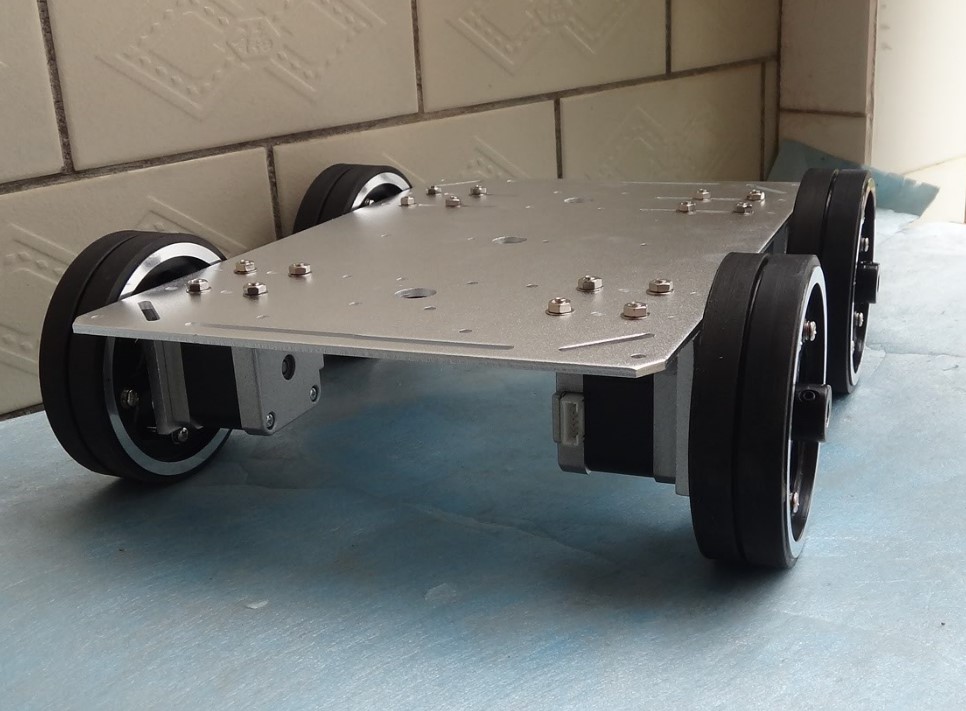

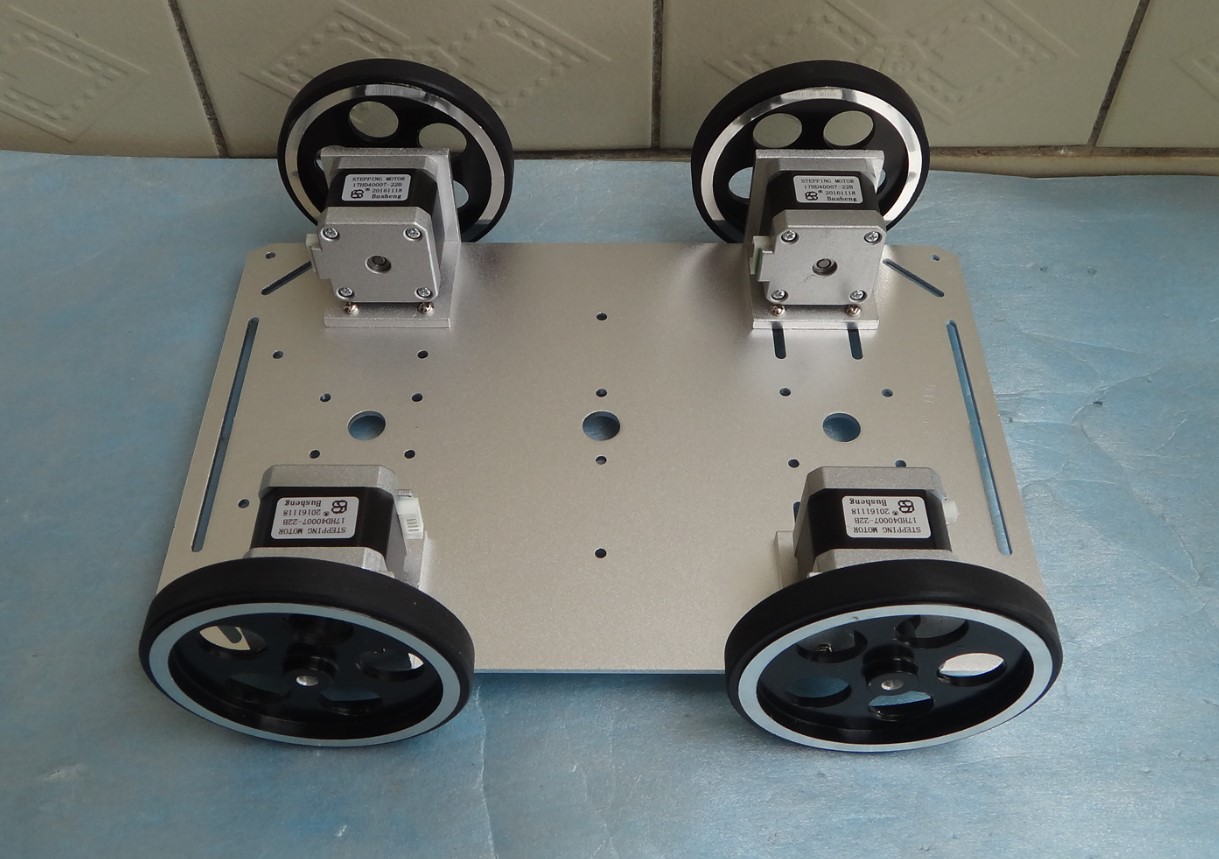

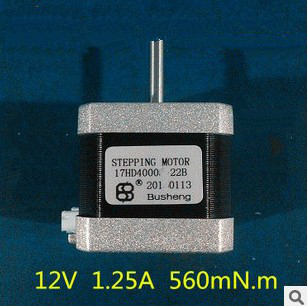

BASE - Metallic Base #14 -- US$199.00



Size

- 20cm(L) x 15cm(W) x 9.5cm(H)

Number of motors

- 4 Stepper motors

Motor voltage

- 12V

Motor speed

- 400 RPM

Platform weight

- 1.5kg

Platform payload (own weight excluded)

- 15kg

Platform building material

-

6061 aluminium alloy

Wheel diameter

- 9.5cm

Extra motors and replacement part can be purchased

  Yes

Max. climbing slot

  45 degree

Water proof

- No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.



BASE - Metallic Base #15 -- US$139.00

Size

- 20cm(L) x 15cm(W) x 9.5cm(H)

Number of motors

- 2 Stepper motors

Motor voltage

- 12V

Motor speed

- 400 RPM

Platform weight

- 1.5kg

Platform payload (own weight excluded)

- 10kg

Platform building material

-

6061 aluminium alloy

Wheel diameter

- 9.5cm

Extra motors and replacement part can be purchased

  Yes

Max. climbing slot

  45 degree

Water proof

- No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.

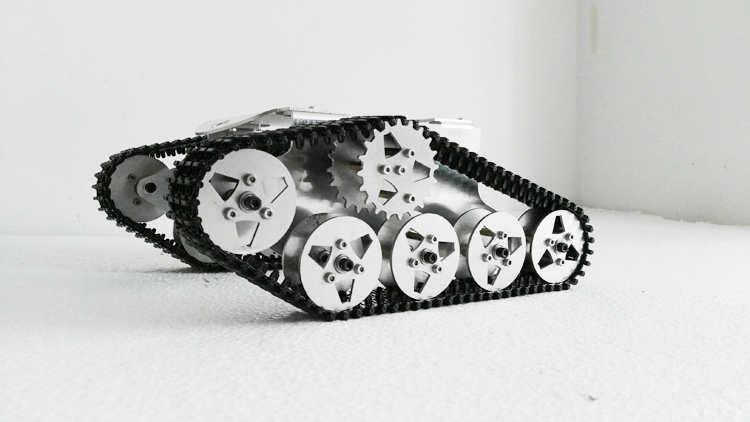

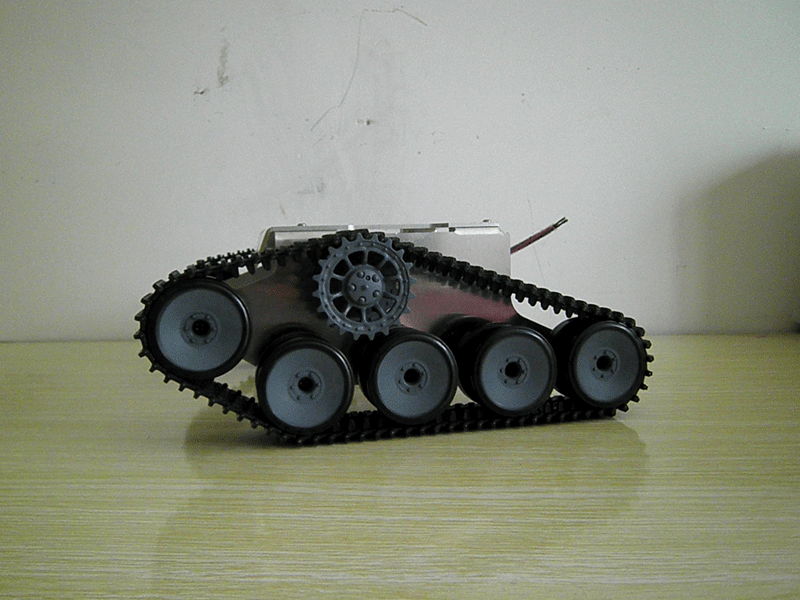

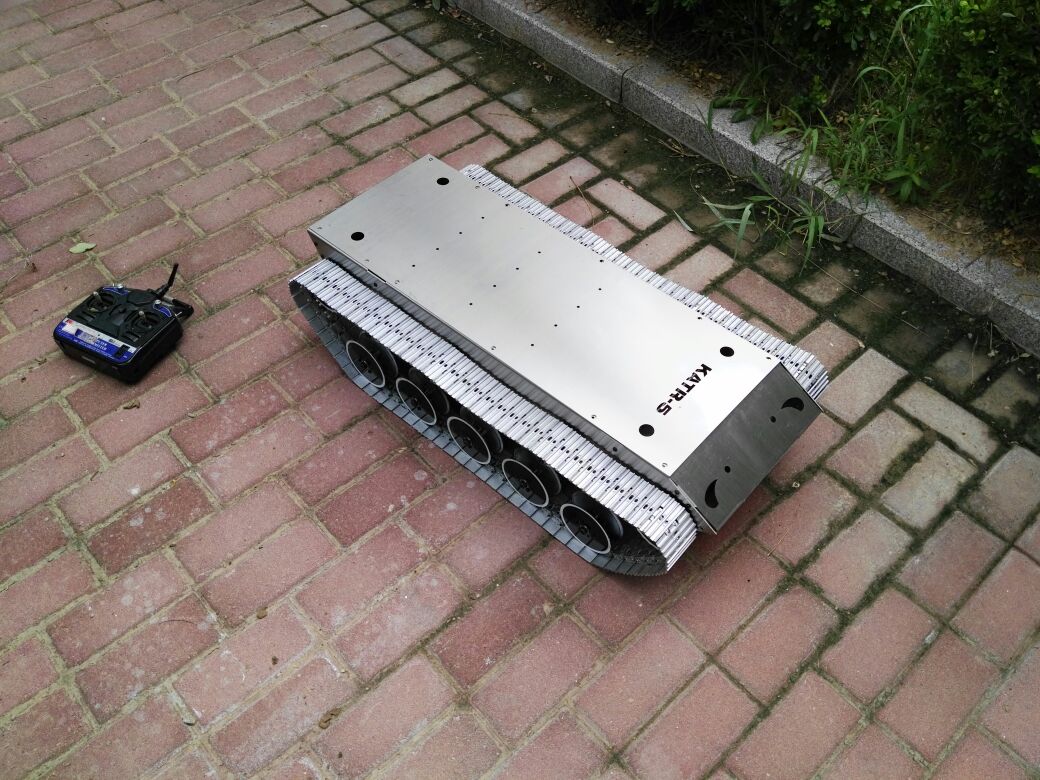

BASE - Metallic Tank Track #1-- US$238.00

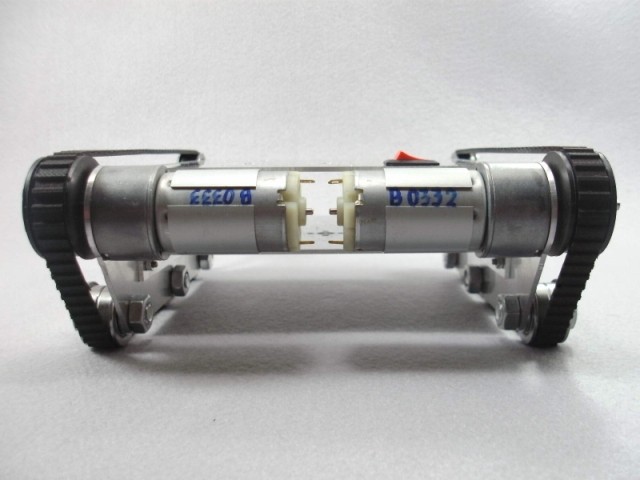

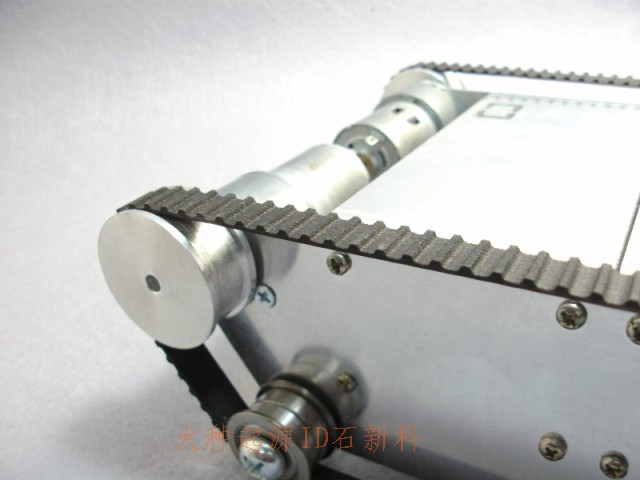

A metallic tank track with 2 Japan Made (Namiki) DC gearhead motors.The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 20cm(Length) x 22.5cm(width). The. The robot weight is 1kg. The load for this robot is around 3-5kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #2-- US$268.00

A metallic tank track with 2 Japan Made (Namiki) DC gearhead motors.The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 23cm(Length) x 23cm(width). The. The robot weight is 1.2kg. The load for this robot is around 3-5kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #3-- US$268.00

A metallic tank track with 2 Japan Made (Namiki) DC gearhead motors.The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 20.5cm(Length) x18cm(width). The. The robot weight is 1.2kg. The load for this robot is around 3-5kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #4-- US$138.00





A metallic tank track with 2 DC gearhead motors and encoders.The working voltage is between 6-9V. The body is built by metal. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracks is about 15.7cm(Length) x 14.9cm(width) x 6cm (height). The robot weight is 1kg. The load for this robot is around 4-5kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #5-- US$489.00

A metallic tank track with 2 DC gearhead motor. The working voltage is between 7.2V -12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracks is about 46cm(Length) x 24cm(width) x 10cm (height). The robot weight is 3kg. The load for this robot is around 4-5kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #6-- US$299.00

Size - 393mm(L) x 206mm(W) x 84mm(H)
Number of motors - 4 DC gearhead motors
Motor voltage - DC 6-12V
Motor speed - 350RPM at 12V
Platform weight - 3.5kg
Platform payload (own weight excluded) - 15kg
Platform building material - Stainless steel (304)
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.



BASE - Metallic Tank Track #7-- US$89.00

Size - 156mm(L) x 196mm(W) x 66mm(H)
Number of motors - 2 DC gearhead motors
Motor voltage - DC 9-12V
Motor speed - 300RPM at 12V
Platform weight - 0.9kg
Platform payload (own weight excluded) - 3-5kg
Platform building material - Stainless steel (304)
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.



BASE - Metallic Tank Track #8-- US$269.00

Size - 285mm(L) x 205mm(W) x 82mm(H)
Number of motors - 2 DC gearhead motors, 1 servo
Motor voltage - DC 6-12V
Motor speed - 200RPM at 9V
Platform weight - 1.5kg
Platform payload (own weight excluded) - 5kg
Platform building material - Stainless steel (304)
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.





BASE - Metallic Tank Track #9-- US$219.00

Size - 208mm(L) x 226mm(W) x 94mm(H)
Number of motors - 2 DC gearhead motors
Motor voltage - DC 6-12V
Motor speed - 200RPM at 9V
Platform weight - 1.5kg
Platform payload (own weight excluded) - 5kg
Platform building material - Stainless steel (304)
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.



BASE - Metallic Tank Track #10-- US$159.00

A metallic tank track with 2 DC gearhead motors and up side down movement.The working voltage is between 6-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracks is about 21cm(Length) x 12.7cm(width) x 7.6cm (height). The robot weight is 0.8kg. The load for this robot is around 4-5kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #11-- US$159.00

A metallic tank track with 2 DC gearhead motors and up side down movement.The working voltage is between 6-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracks is about 26.6cm(Length) x 23.6cm(width) x 14.6cm (height). The robot weight is 1.3kg. The load for this robot is around 4-5kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #12 -- US$179.00

Size - 171mm(L) x 210mm(W) x 83mm(H)
Number of motors - 2 DC gearhead motors
Motor voltage - DC 9-12V
Motor speed - 300RPM at 12V
Platform weight - 1.5kg
Platform payload (own weight excluded) - 5kg
Platform building material - Stainless steel (304)
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.



BASE - Metallic Tank Track #13 -- US$179.00



Size - 195mm(L) x 223mm(W) x 83mm(H)
Number of motors - 2 DC gearhead motors
Motor voltage - DC 7.2-12V
Motor speed - 300RPM at 12V
Platform weight - 1.3kg
Platform payload (own weight excluded) - 5kg
Platform building material - Stainless steel (304)
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.



BASE - Metallic Tank Track #14 -- US$269.00

Size - 273mm(L) x 167mm(W) x 60mm(H)
Number of motors - 4 DC gearhead motors with encoder
Motor voltage - DC 9-18V
Motor speed - 300RPM at 12V
Platform weight - 2.8kg
Platform payload (own weight excluded) - 10kg
Platform building material - Stainless steel (304)
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.



BASE - Metallic Tank Track #15 -- US$169.00

A Metallic tank track mobile robot base with 4 DC gearhead motors and up side down movement. The working voltage is between 6-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracks is about 21cm(Length) x 20cm(width) x 7.6cm (height). The robot weight is 0.8kg. The load for this robot is around 2-3kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #16 (without complete remote controller set, nylon track) -- US$469.00

BASE - Metallic Tank Track #16(without complete remote controller set, metal track) -- US$569.00

BASE - Metallic Tank Track #16 (with remoter controller and all accessories, ready to play, nylon track) -- US$688.00

BASE - Metallic Tank Track #16 (with remoter controller and all accessories, ready to play, metal track) -- US$788.00

Tank on action:

http://v.youku.com/v_show/id_XOTIxMjA1NzUy.html?from=y1.7-1.2

Size - 295cm(L) x 190cm(W) x 110cm(H)
Number of motors - 2 DC gearhead motors
Motor voltage - DC 6-12V
Motor speed - 90meters/minute
Platform weight - 2.2kg (nylon track); 2,95kg (metal track)
Platform payload (own weight excluded) - 15kg
Platform building material - Stainless steel (304) white or back (Please select one when ordering)

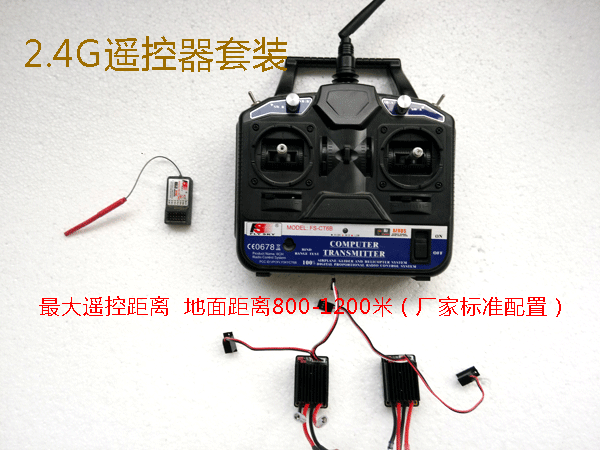

Remote control set - Optional: 2.4G remote controller or with video, motor driver, re-chargable battery, and charge; Changed to metal track in an extra US$100.00
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No



BASE - Metallic Tank Track #17 -- US$398.00

A Metallic tank track mobile robot base with 4 DC gearhead motors with bumper. The working voltage is between 6-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracks is about 27.5cm(Length) x 20.5cm(width) x 6.5cm (height). The robot weight is 2.8kg. The load for this robot is around 8-10kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #18 (without remote controller set) -- US$668.00

BASE - Metallic Tank Track #18 (with remote controller set and re-chargable battery) -- US$898.00





Size - 425cm(L) x 250cm(W) x 90cm(H)
Number of motors - 4 DC gearhead motors
Motor voltage - DC 12V with total output 25W x 4 = 60W
Motor speed - 50meters/minute
Platform weight - 8.5kg
Platform payload (own weight excluded) - 30kg
Platform building material - Stainless steel (304
Remote control set - Optional: 2.4G remote controller or with video, motor driver, re-chargable battery, and charger
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No



BASE - Metallic Tank Track #19 (without remote controller set) -- US$990.00

BASE - Metallic Tank Track #19 (with remote controller set) -- US$1,290.00

BASE - Metallic Tank Track #19 (with remote controller set with video) -- US$1,590.00



Tank on action:

http://v.youku.com/v_show/id_XOTIxMTI2NjM2.html?from=y1.7-1.2

Size - 500cm(L) x 300cm(W) x 120cm(H) or 400cm(L) x 300cm(W) x 120cm(H) -- please select one when ordering
Number of motors - 4 DC gearhead motors
Motor voltage - DC 12V with total output 25W x 4 = 60W
Motor speed - 50meters/minute
Platform weight - 8.5kg; IP54 waterproof
Platform payload (own weight excluded) - 30kg
Platform building material - Stainless steel (304) white or back (Please select one when ordering)
Remote control set - Optional: 2.4G remote controller or with video, motor driver, re-chargable battery, and charger
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No



BASE - Metallic Tank Track #20 -- US$83.00

A tank track with 2 DC gearhead motors. The working voltage is between 4.5-6V. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracks is about 24.5cm(Length) x 22.5cm(width) x 7.4cm (height). The robot weight is 0.5kg. The load for this robot is around 2-3kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #21 -- US$149.00

A tank track with 2 DC gearhead motors. The working voltage is between 3-12V. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracks is about 24.8cm(Length) x 26.3cm(width) x 13cm (height). The robot weight is 1.5kg. The load for this robot is around 2-3kg. Educational discount applied to all metallic tank track base and mobile robot base.

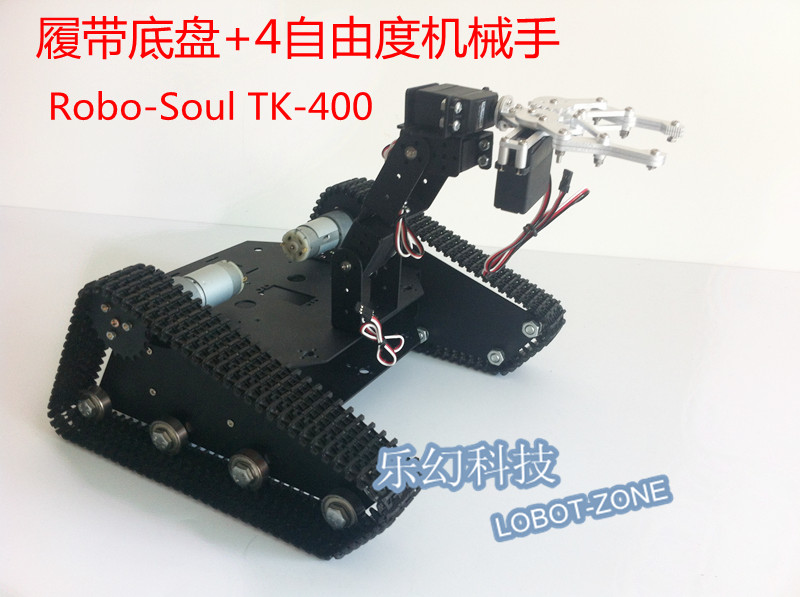

BASE - Metallic Tank Track #22 -- US$299.00

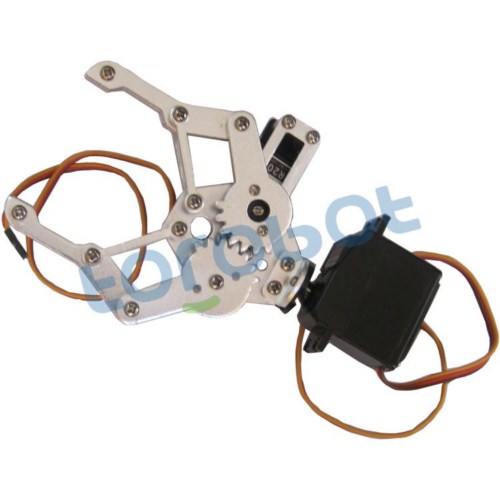

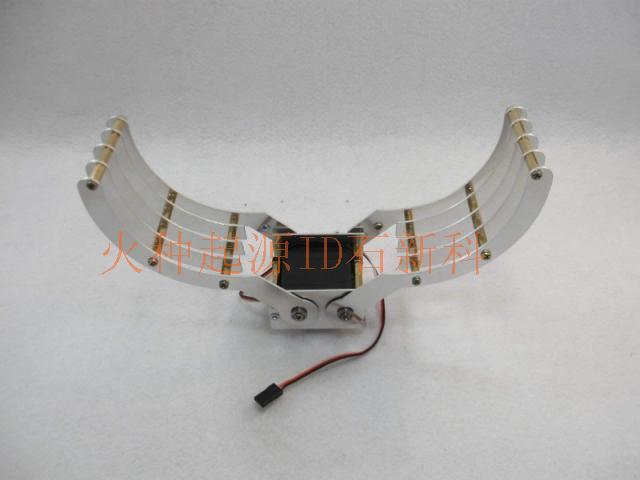

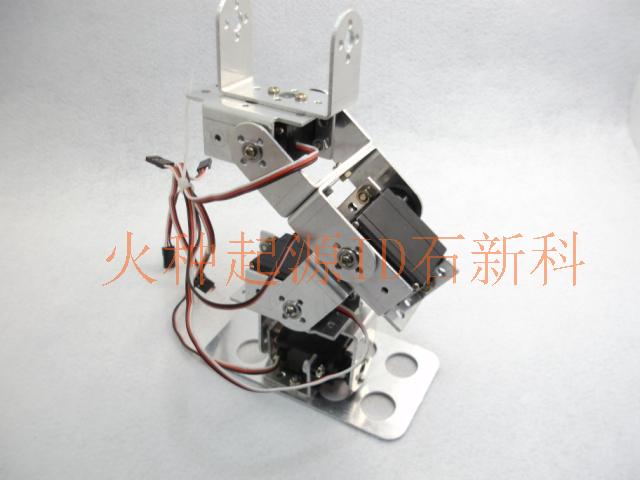

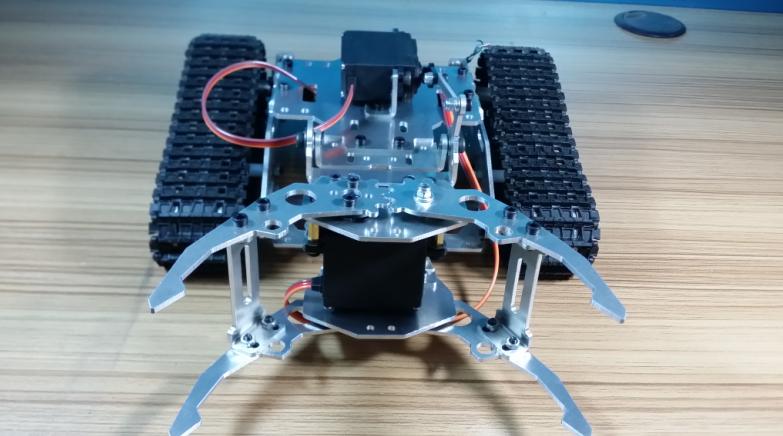

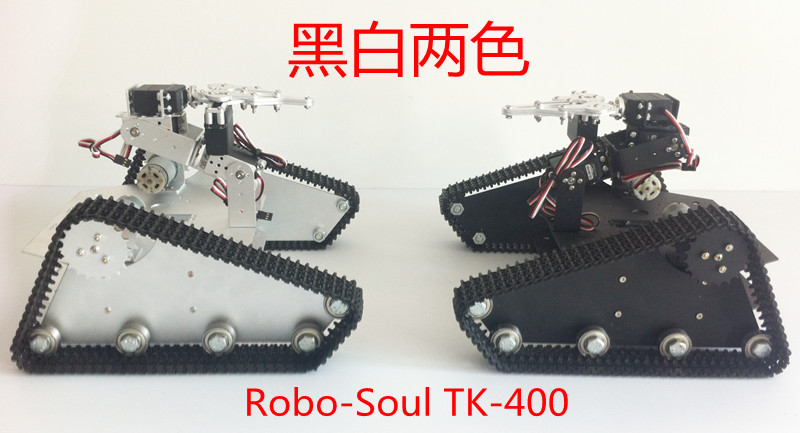

A tank track with 2 DC gearhead motors and 4-freedom robot arms with servos. The working voltage is between 6-12V. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracks is about 30cm(Length) x 31.5cm(width) x 14cm (height). The robot weight is 2kg. The load for this robot is around 2-3kg. Educational discount applied to all metallic tank track base and mobile robot base. Please indicate white or black color when ordering.

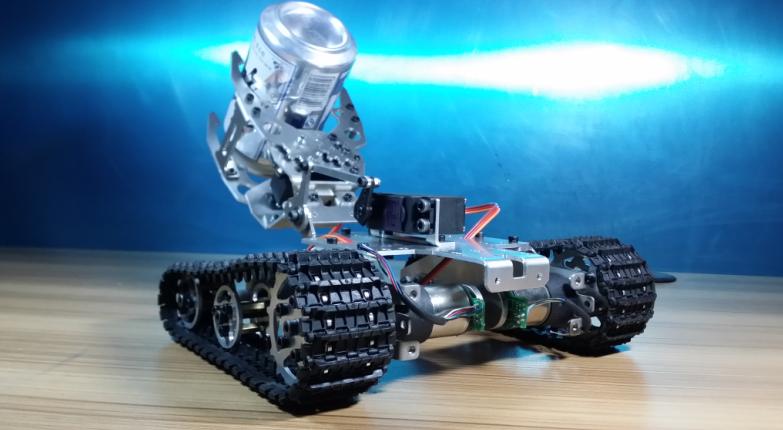

BASE - Metallic Tank Track #23 -- US$369.00

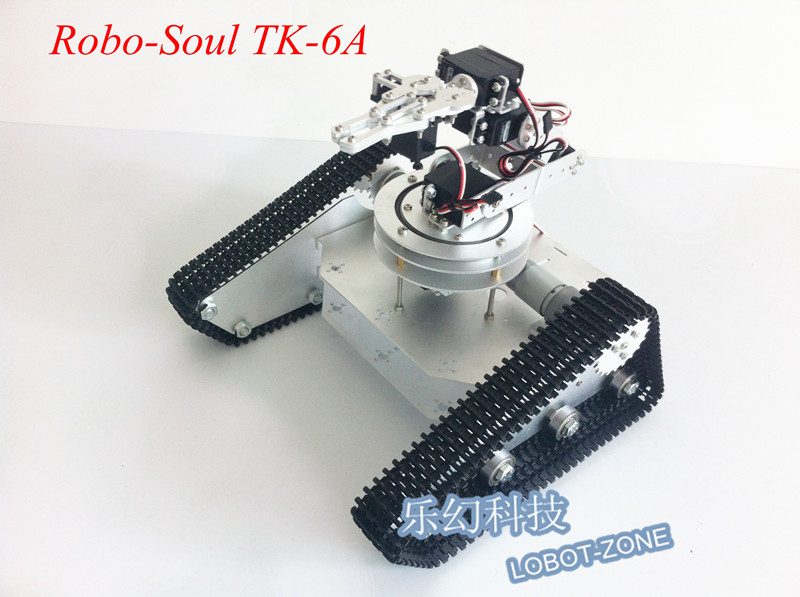

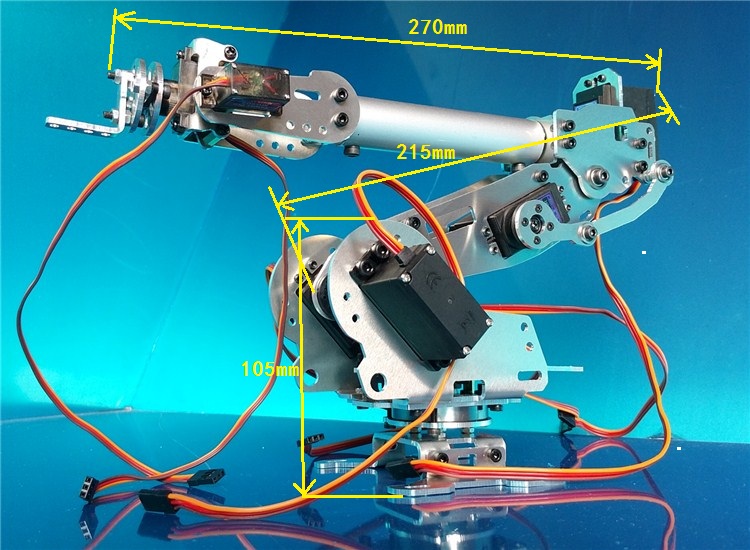

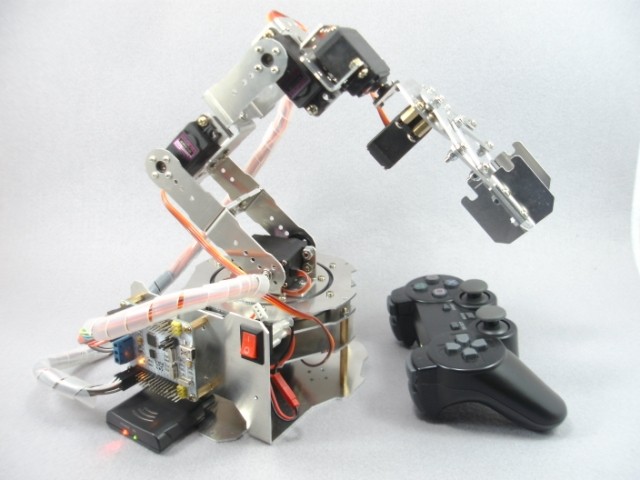

A tank track with 2 DC gearhead motors and 6-freedom robot arms with servos. The working voltage is between 6-12V. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracks is about 30cm(Length) x 31.5cm(width) x 14cm (height). The robot weight is 2kg. The load for this robot is around 2-3kg. Educational discount applied to all metallic tank track base and mobile robot base. Please indicate white or black color when ordering.



BASE - Metallic Tank Track #24 -- US$159.00

A tank track with 2 DC gearhead motors. The working voltage is between 6-12V. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracks is about 30cm(Length) x 31.5cm(width) x 14cm (height). The robot weight is 1.5kg. The load for this robot is around 2-3kg. Educational discount applied to all metallic tank track base and mobile robot base. Please indicate white or black color when ordering.



BASE - Metallic Tank Track #25 -- US$599.00

A heavy duty metallic tank track with 2 extra high power DC gearhead motors. It comes with 360 degress rotating deck. The working voltage is between 9-24V. The body including the thread is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 38cm(Length) x 23.5cm(width) x 12cm (height). The robot weight is 6kg. The load for this robot is around 25kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #26 -- US$669.00

A heavy duty metallic water proof (within 8cm of height can be immersed in water) tank track with 2 extra high power DC gearhead motors with rotating deck with motor. The working voltage is between 9-24V. The body including the thread is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 38cm(Length) x 23.5cm(width) x 12cm (height). The robot weight is 6kg. The load for this robot is around 25kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #27 -- US$269.00

A heavy duty metallic tank track with 2 extra high power DC gearhead motors. The working voltage is between 12-24V. The body including the thread is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 24cm(Length) x 24cm(width) x 11cm (height). The robot weight is 3kg. The load for this robot is around 15kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #28 -- US$229.00

A heavy duty metallic tank track with 1 extra high power DC gearhead motors to build multi-thread giant monster. The working voltage is between 9-24V. The body including the thread is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 24cm(Length) x 5cm(width) x 11cm (height). The robot weight is 3kg. The load for this robot is around 15kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #29 -- US$899.00

A metallic tank track with 2 DC motors with gearbox and 6 LEDs.The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 43cm(Length) x 20cm(width) x 18cm (height). The robot weight is 10kg. The load for this robot is around 3-5kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #30 -- US$268.00

A metallic tank track with 2 DC gearhead motors with and 4LEDs.The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 24.5cm(Length) x 13cm(width). The robot weight is 1kg. The load for this robot is around 3-5kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #31 -- US$258.00

A metallic tank track with 2 DC gearhead motors. The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 27.5cm(Length) x 18.5cm(width). The robot weight is 1.5kg. The load for this robot is around 3-5kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #32 -- US$258.00

A metallic tank track with 2 DC gearhead motors. The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 27cm(Length) x 22cm(width). The robot weight is 2kg. The load for this robot is around 3-5kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #33 -- US$268.00

A metallic tank track with 2 Japanese (Nimike) DC gearhead motors, 6 LEDs, and servo mountings on top. The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 26cm(Length) x 17cm(width) x 9cm (height). The robot weight is 1.5kg. The load for this robot is around 5-6kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #34 -- US$238.00

A metallic tank track with 2 DC gearhead motors, 6 LEDs, and servo mountings on top. The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 17cm(Length) x 20cm(width). The robot weight is 0.75kg. The load for this robot is around 2-3kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #35 -- US$180.00

A metallic tank track with 2 DC gearhead motors and 2 LEDs. The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 16.5cm(Length) x 20.5cm(width). The robot weight is 0.75kg. The load for this robot is around 2-3kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #36 -- US$288.00

Size - 241mm(L) x 212mm(W) x 78mm(H)
Number of motors - 2 DC gearhead motors
Motor voltage - DC 9-12V
Motor speed - 110RPM at 9V
Platform weight - 1.6kg
Platform payload (own weight excluded) - 6kg
Platform building material - Stainless steel (304)
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.

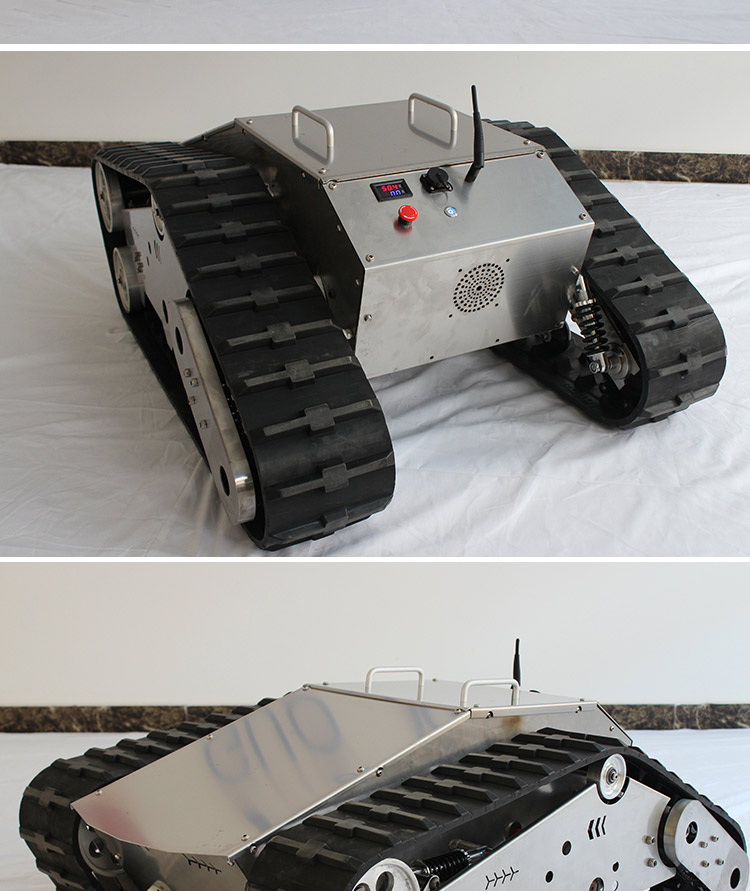

BASE - Metallic Tank Track #37(without complete remote control set) -- US$8,958.00

BASE - Metallic Tank Track #37(with complete remote control set and battery) -- US$11,958.00

Tank on action video:

http://v.youku.com/v_show/id_XMTI4OTE3MDkwMA==.html?from=y1.7-1.2

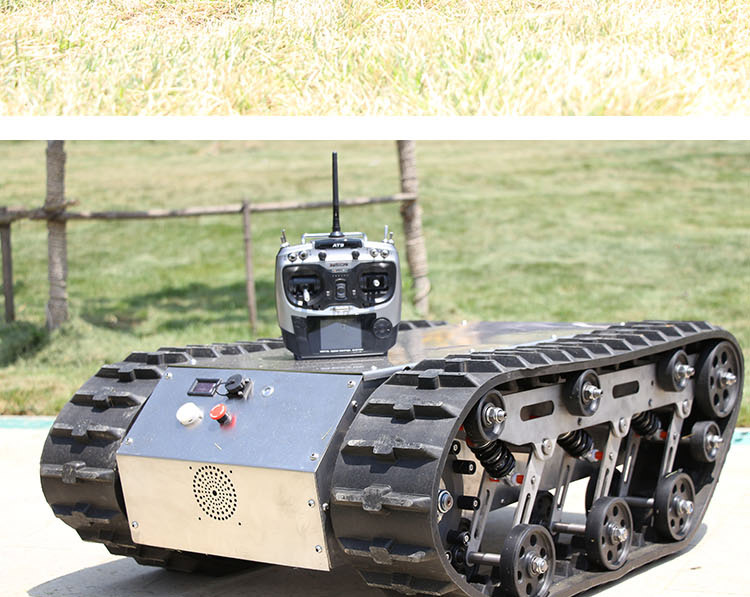

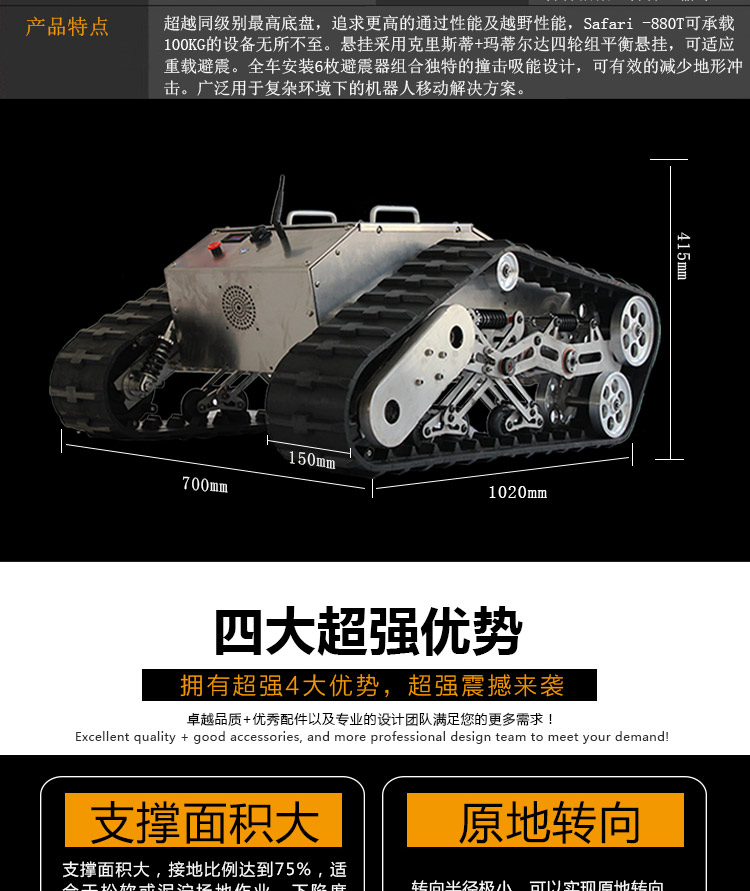

Size - 1000cm(L) x 700cm(W) x 400cm(H)
Number of motors - 2 NMRV50 motors
Motor voltage - Output 880W
Motor speed - 85 meters/minute
Platform weight - 85kg including the battery
Platform payload (own weight excluded) - 200kg
Platform building material - Stainless steeel (304) / POM; rubber with nylon track
Remote control set - Optional: 2.4G remote controller, motor driver, re-chargable battery, and charger
Extra motors and replacement part can be purchased   Yes
Max. climbing slot   50 degree with shock absorber
Water proof - IP54



BASE - Metallic Tank Track #38 -- US$355.00

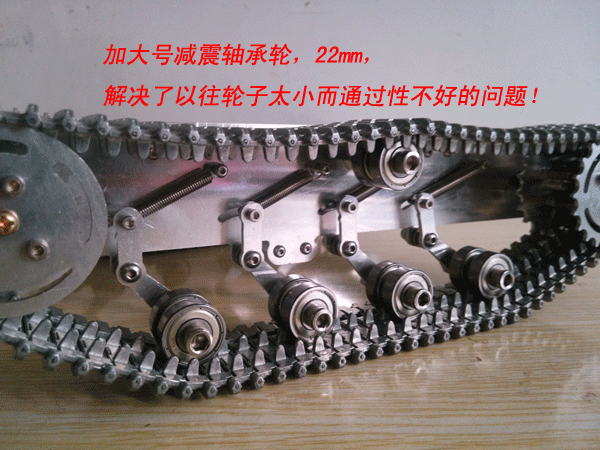

A metallic tank track with 2 DC gearhead motors with shock absorber. The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 52cm(Length) x 31cm(width x 16cm(height). The robot weight is 3kg. The load for this robot is around 5-6kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #39-- US$198.00

A metallic tank track with 2 DC gearhead motors. The working voltage is between 9-12V. The body is built by steel. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 28cm(Length) x 25cm(width x 12cm(height). The robot weight is 0.7kg. The load for this robot is around 2kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #40 (without complete remote set) -- US$499.00

BASE - Metallic Tank Track #40 (with complete remote set) -- US$649.00

Specifications:

Size - 40cm(L) x 24cm(W) x 10cm(H)
Number of motors - 2 DC gearhead motors
Motor voltage - DC 9V / 12V / 24V ( Please choose one of the configurations)
Motor speed - 50RPM/100RPM => 15meters/minute - 25meters/minute. (Please choose one of the configurations)
Platform weight - 2.5kg (without remote control and battery)
Platform payload (own weight excluded) - 15kg
Platform building material - Steel body, nylon track; metal track is available in extra US$100.00
Remote control set - Optional: 2.4G remote controller, motor driver, re-chargable battery, and charger.
Extra motors and replacement parts can be purchased   Yes
Custom made size available - Yes. Price inquiry: patrick@robotstorehk.com





BASE - Metallic Tank Track #41(without complete remote control set) -- US$289.00

BASE - Metallic Tank Track #41(with complete remote control set and battery) -- US$389.00





Size - 30cm(L) x 24cm(W) x 9cm(H)
Number of motors - 2 DC gearhead motors
Motor voltage - DC 9V -12V Output: 15W x 2 = 30W
Motor speed - 100RPM => 15meters/minute to 45meters/minute (Please specifiy one of the configurations)
Platform weight - 2kg
Platform payload (own weight excluded) - 10kg
Platform building material - Steel (304). Nylon track. Metal track is available at an extra price US$80.00
Remote control set - Optional: 2.4G remote controller, motor driver, re-chargable battery, and charger
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - Yes. Price inquiry: patrick@robotstorehk.com





BASE - Metallic Tank Track #42-- US$399.00

A metallic tank track with 2 DC gearhead motor, shock absorber, and servo mountings on the top. The working voltage is between 9-12V. The body is built by steel. The treads are made of metal. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 30cm(Length) x 24cm(width x 9cm(height). The robot weight is 2.3kg. The load for this robot is around 5-6kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #43-- US$119.00

A metallic tank track with 2 DC gearhead motor with hall effect sensor.. The working voltage is between 9-12V. The body is built by aluminum. You can use Arduino or other robot controllers (i.e. MIT Handyboard system) to control this robot. The size of the tank including tracs is about 170mm(Length) x 176mm(width) x 80mm(height). The robot weight is 1.5kg. The load for this robot is around 2-3kg. Educational discount applied to all metallic tank track base and mobile robot base.



BASE - Metallic Tank Track #44 (without complete remote control set) -- US$1,690.00

BASE - Metallic Tank Track #44 (with complete remote control set and battery) -- US$1,980.00

Specifications:

Size - 86cm(L) x 45cm(W) x 25cm(H)
Number of motors - 4 DC gearhead motors
Motor voltage - DC 12V with total output 60W x 4 = 240W
Motor speed - 100/200/300/400RPM => 30meters/minute - 60meters/minute. Please choose one of the configurations.
Platform weight - 32kg
Platform payload (own weight excluded) - 50kg (@400RPM) - 150kg (@100RPM)
Platform building material - Stainless steel (304)
Remote control set - Optional: 2.4G remote controller, motor driver, re-chargable battery, and charger
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   Yes - Free of charge. Please specify it with the order.
Custom made size available - Yes. Price inquiry: patrick@robotstorehk.com



BASE - Metallic Tank Track #45 (without complete remote control set) -- US$690.00

BASE - Metallic Tank Track #45 (with complete remote control set and battery) -- US$790.00

Specifications:

Size - 39cm(L) x 24cm(W) x 10cm(H)
Number of motors - 2 DC gearhead motors
Motor voltage - DC 12V
Motor speed - 30RPM
Platform weight - 8kg
Platform payload (own weight excluded) - 30kg
Platform building material - steel
Remote control set - Optional: 2.4G remote controller, motor driver, re-chargable battery, and charger
Extra motors and replacement part can be purchased   Yes
Custom made size available - No



BASE - Metallic Tank Track #46 (without complete remote set)-- US$790.00

BASE - Metallic Tank Track #46 (with complete remote set and battery)-- US$890.00



Specifications:

Size - 44cm(L) x 34cm(W) x 20cm(H)
Number of motors - 4 DC gearhead motors without encoder. Price inquiry for motor with encoder: patrick@robotstorehk.com
Motor voltage - DC 12V
Motor speed - 100RPM => 15meters/minute
Platform weight - 10kg
Platform payload (own weight excluded) - 15kg
Platform building material - Stainless steel (304). Metal track.
Remote control set - Optional: 2.4G remote controller, motor driver, re-chargable battery, and charger
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   Yes - Free of charge. Please specify it with the order.
Custom made size available - Yes. Price inquiry: patrick@robotstorehk.com



BASE - Metallic Tank Track #47(without complete remote control set) -- US$790.00

BASE - Metallic Tank Track #47(with complete remote control set)-- US$890.00



Specifications:

Size - 61cm(L) x 35cm(W) x 20cm(H)
Number of motors - 4 DC gearhead motors
Motor voltage - DC 12V -24V Output: 30W x 4 = 120W
Motor speed - 100/200/300/500RPM => 15meters/minute to 45meters/minute (Please specifiy one of the configurations)
Platform weight - 12kg
Platform payload (own weight excluded) - 30kg
Platform building material - Stainless steel (304). Metal track.
Remote control set - Optional: 2.4G remote controller, motor driver, re-chargable battery, and charger
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   Yes - Free of charge. Please specify it with the order.
Custom made size available - Yes. Price inquiry: patrick@robotstorehk.com



BASE - Metallic Tank Track #48(without complete remote control set) -- US$849.00

BASE - Metallic Tank Track #48(with complete remote control set)-- US$949.00

Specifications:

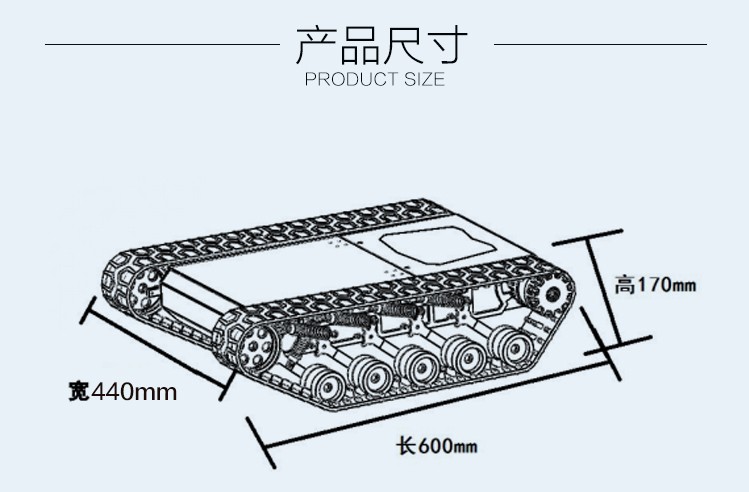

Size - 60(L) x 35cm(W) x 12cm(H)
Number of motors - 4 DC gearhead motors without the encoder. Price inquiry for the motor with encoder: patrick@robotstorehk.com
Motor voltage - DC 12V -24V Output: 30W x 4 = 120W
Motor speed - 100/200/300/400/500 RPM => 15meters/minute to 45meters/minute (Please specifiy one of the configurations)
Platform weight - 13kg
Platform payload (own weight excluded) - 35kg
Platform building material - Stainless steel (304). Metal track.
Remote control set - Optional: 2.4G remote controller, motor driver, re-chargable battery, and charger
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   Yes - Free of charge. Please specify it with the order.
Custom made size available - Yes. Price inquiry: patrick@robotstorehk.com



BASE - Metallic Tank Track #49 (without complete remote control set) -- US$849.00

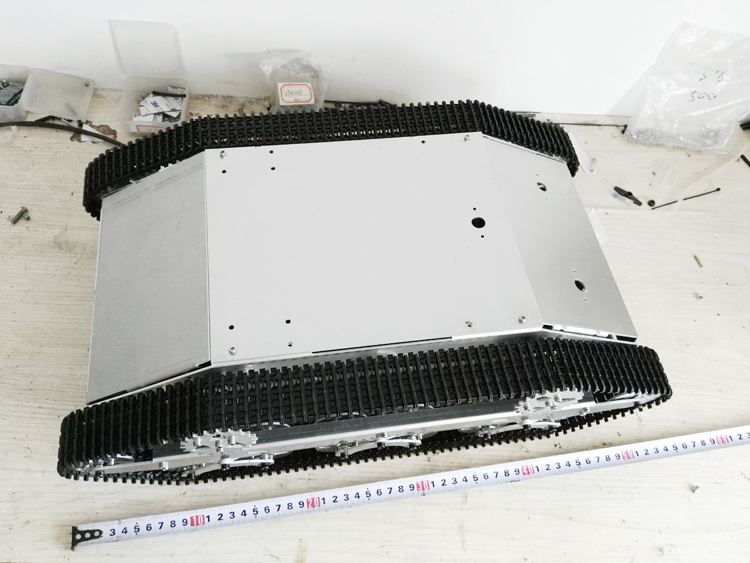

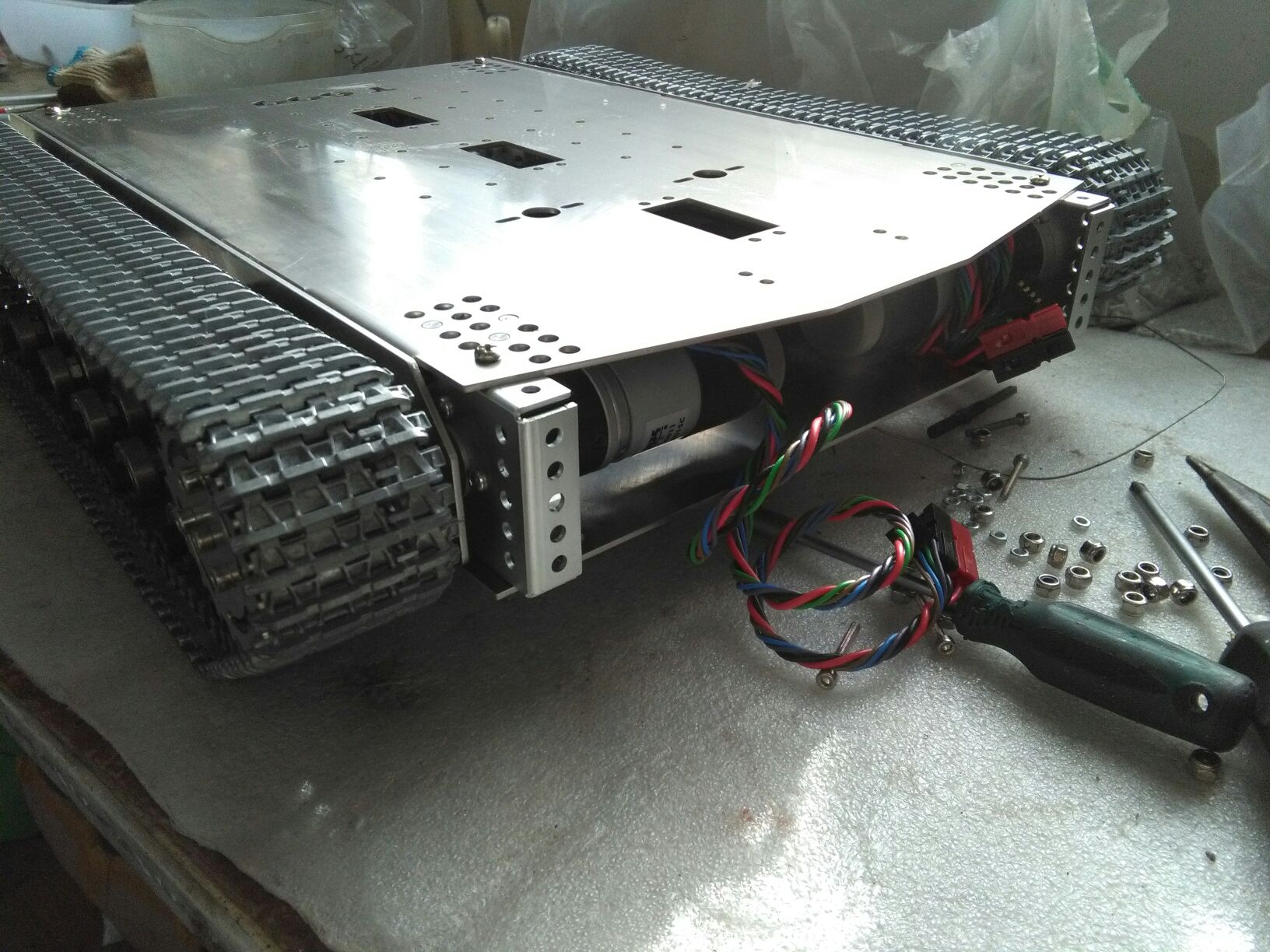

BASE - Metallic Tank Track #49 (with complete remote control set)-- US$949.00

Size - 55cm(L) x 38cm(W) x 15cm(H)
Number of motors - 4 DC gearhead motors without the encoder. Price inquiry for the motor with encoder: patrick@robotstorehk.com
Motor voltage - DC 12V -24V Output: 30W x 4 = 120W
Motor speed - 100/200/300/400/500 RPM => 15meters/minute to 45meters/minute (Please specifiy one of the configurations)
Platform weight - 12kg
Platform payload (own weight excluded) - 35kg
Platform building material - Stainless steel (304). Nylon track. Metal track price inquiry: patrick@robotstorehk.com
Remote control set - Optional: 2.4G remote controller, motor driver, re-chargable battery, and charger
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   Yes - Free of charge. Please specify it with the order.
Custom made size available - Yes. Price inquiry: patrick@robotstorehk.com

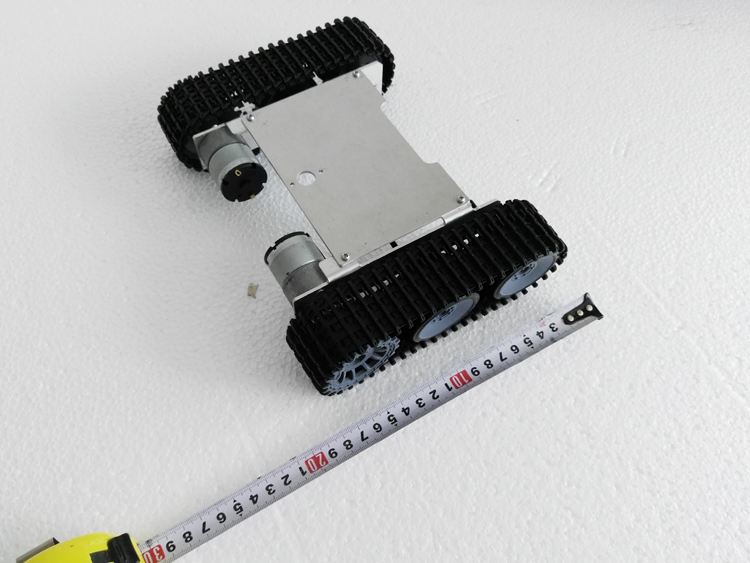

BASE - Metallic Tank Track #50 (plastic wheel) -- US$49.00

BASE - Metallic Tank Track #50 (metal wheel) -- US$66.00

Size - 18cm(L) x 24cm(W) x 6cm(H)
Number of motors - 2 DC gearhead motors without the encoder
Motor voltage - DC 6V -12V
Motor speed - 150RPM
Platform weight - 1kg
Platform payload (own weight excluded) - 2kg
Platform building material - Aluminum. Nylon track
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

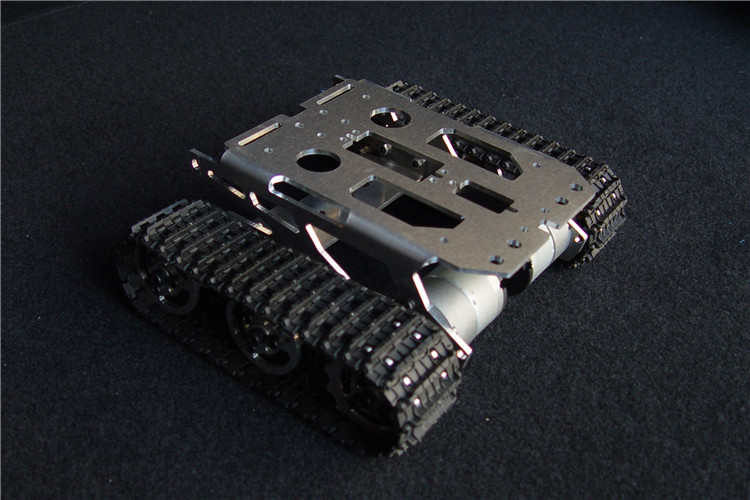

BASE - Metallic Tank Track #51 -- US$59.00

Size - 19cm(L) x 24cm(W) x 10cm(H)
Number of motors - 2 DC gearhead motors without the encoder
Motor voltage - DC 6V -12V
Motor speed - 150RPM
Platform weight - 1kg
Platform payload (own weight excluded) - 2kg
Platform building material - Aluminum. Nylon track
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

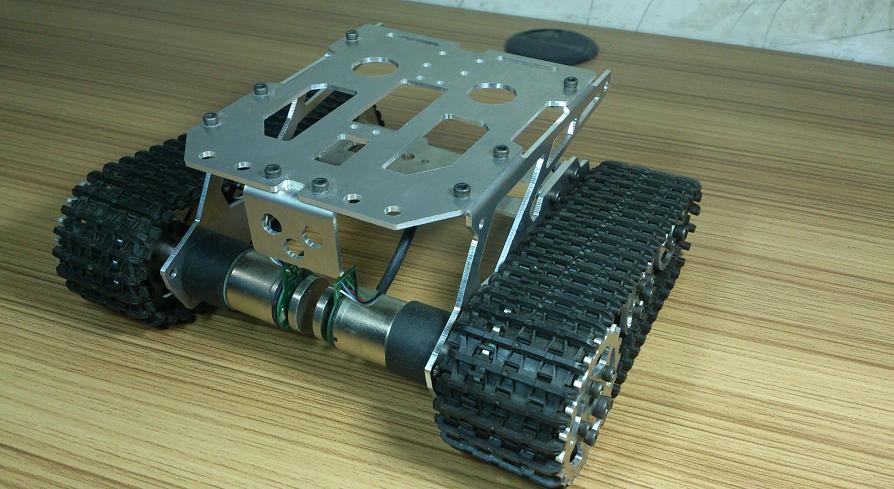

BASE - Metallic Tank Track #52 -- US$69.00

Size - 28cm(L) x 25cm(W) x 12cm(H)
Number of motors - 2 DC gearhead motors without the encoder
Motor voltage - DC 6V -12V
Motor speed - 150RPM
Platform weight - 1kg
Platform payload (own weight excluded) - 2kg
Platform building material - Aluminum. Nylon track
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

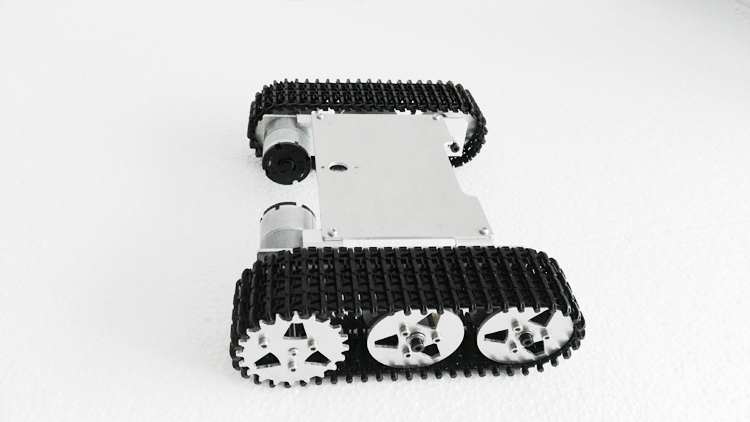

BASE - Metallic Tank Track #53 -- US$59.00

Size - 31cm(L) x 25cm(W) x 7cm(H)
Number of motors - 2 DC gearhead motors without the encoder
Motor voltage - DC 6V -12V
Motor speed - 150RPM
Platform weight - 1kg
Platform payload (own weight excluded) - 3kg
Platform building material - Aluminum. Nylon track
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

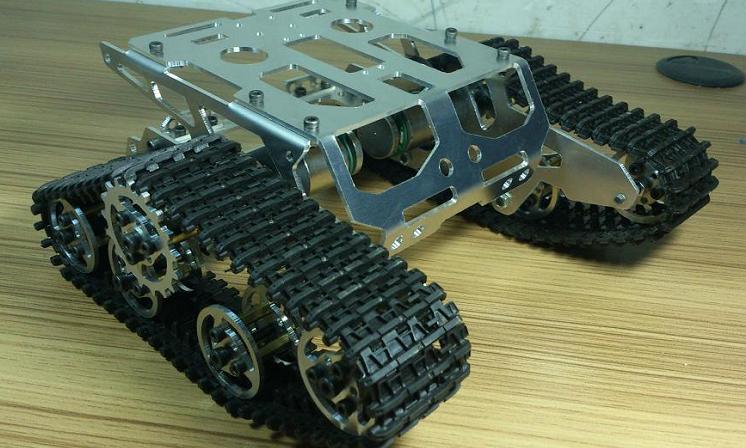

BASE - Metallic Tank Track #54 (with plastic wheel) -- US$159.00

BASE - Metallic Tank Track #54 (with metal wheel) -- US$189.00

BASE - Metallic Tank Track #54 (with plastic wheel and remote controller set) -- US$269.00

BASE - Metallic Tank Track #54 (with metal wheel and remote controller set) -- US$299.00

Size - 45cm(L) x 26cm(W) x 12cm(H)
Number of motors - 2 DC gearhead motors without the encoder
Motor voltage - DC12V
Motor speed - 150RPM
Platform weight - 2kg
Platform payload (own weight excluded) - 5kg
Platform building material - Aluminum. Nylon track
Remote control set - Optional: 2.4G remote controller, motor driver, re-chargable battery, and the charger
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - Yes. Price inquiry: patrick@robotstorehk.com



BASE - Metallic Tank Track #55 -- US$79.00

Size - 31cm(L) x 25cm(W) x 7cm(H)
Number of motors - 2 DC gearhead motors without the encoder
Motor voltage - DC12V
Motor speed - 150RPM
Platform weight - 1kg
Platform payload (own weight excluded) - 2kg
Platform building material - Aluminum. Nylon track
Remote control set - Optional: 2.4G remote controller, motor driver, re-chargable battery, and the charger. Price inquiry: patrick@robotstorehk.com
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No



BASE - Metallic Tank Track #56 -- US$89.00



Size - 28cm(L) x 25cm(W) x 12cm(H)
Number of motors - 2 DC gearhead motors without the encoder
Motor voltage - DC12V
Motor speed - 150RPM
Platform weight - 1.2kg
Platform payload (own weight excluded) - 2.5kg
Platform building material - Aluminum. Nylon track
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No



BASE - Metallic Tank Track #57 -- US$75.00

Size - 19cm(L) x 24cm(W) x 10cm(H)
Number of motors - 2 DC gearhead motors without the encoder
Motor voltage - DC12V
Motor speed - 150RPM
Platform weight - 1kg
Platform payload (own weight excluded) - 2kg
Platform building material - Aluminum. Nylon track
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

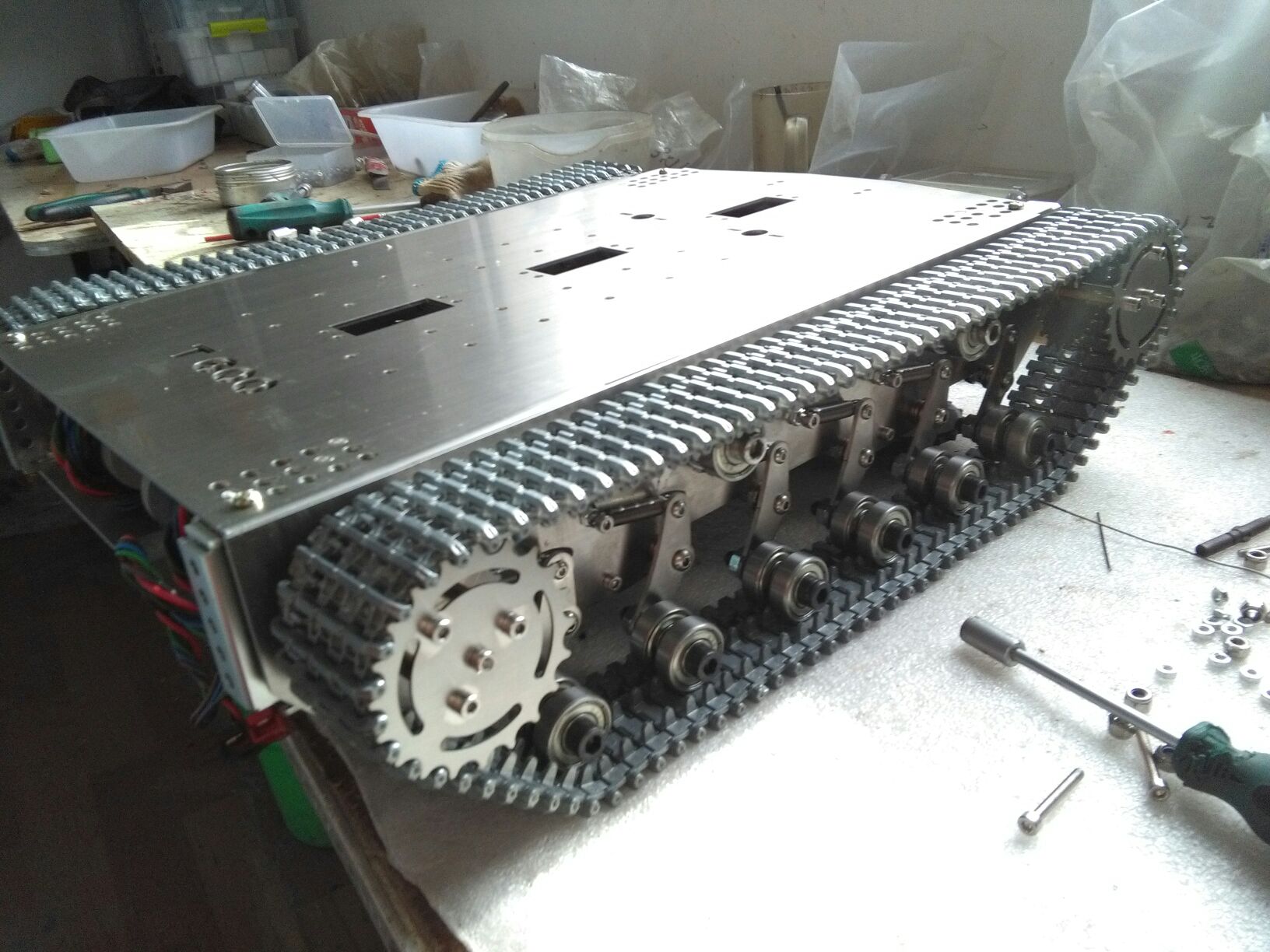

BASE - Metallic Tank Track #58 (without motor encoder) -- US$499.00

BASE - Metallic Tank Track #58 (with motor encoder) -- US$589.00



Size - 54cm(L) x 31cm(W) x 15cm(H)
Number of motors - 4 DC gearhead motors with/without the encoder
Motor voltage - DC12V
Motor speed - 150RPM
Platform weight - 4kg
Platform payload (own weight excluded) - 15kg
Platform building material - Aluminum. Nylon track
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No



BASE - Metallic Tank Track #59 (without remote controller set) -- US$2,950.00

BASE - Metallic Tank Track #59 (with remote controll and re-chargable battery set) -- US$3,550.00

Specifications:

Size - 600cm(L) x 400cm(W) x 170cm(H)
Number of motors - 2 DC motors
Motor voltage - 24V 138W x 2 = 276W
Motor speed - 6KM / hour
Platform weight - 15kg
Platform payload (own weight excluded) - 60kg
Platform building material - Stainless steeel (304) / POM; rubber with nylon track
Remote control set - Optional: 2.4G remote controller, motor driver, re-chargable battery, and charger
Extra motors and replacement part can be purchased   Yes
Max. climbing slot   40 degree with shock absorber
Water proof - IP54



BASE - Metallic Tank Track #60 -- US$799.00



Size - 41cm(L) x 27cm(W) x 15cm(H)
Number of motors - 2 DC brushless gearhead motors
Motor voltage - DC12V
Motor speed - 150RPM
Platform weight - 10kg
Platform payload (own weight excluded) - 100kg
Platform building material - Steel. Metal track
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No



BASE - Metallic Tank Track #61 (with remote control set) -- US$6,980.00

Tank on action video:

http://v.youku.com/v_show/id_XMTYwOTEyNTk5Mg==.html

Specifications:

Size - 96cm(L) x 71.5cm(W) x 31.5cm(H)
Number of motors - 2 DC gearhead motors
Motor voltage - DC48V
Motor speed - Platform speed: 0-1.4m/s
Platform weight - 80kg
Platform payload (own weight excluded) - 95kg
Platform building material - Stainless steel. Rubber with nylon track
Remote control set - Wireless remote controller, motor driver, re-chargable battery, 110V or 220V charger (please speficy when ordering)
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No



BASE - Metallic Tank Track #62 (with complete remote control set)-- US$8,980.00

Tank on action video:

http://v.youku.com/v_show/id_XMTU5MzMzMzM1Mg==.html

Specifications:

Size - 102cm(L) x 70cm(W) x 41.5cm(H)
Number of motors - 2 DC gearhead motors
Motor voltage - DC48V
Motor speed - Platform speed: 0-1.6m/s
Platform weight - 95kg
Platform payload (own weight excluded) - 100kg
Platform building material - Stainless steel. Rubber with nylon track
Remote control set - Wireless remote controller, motor driver, re-chargable battery, 110V or 220V charger (please speficy when ordering)
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No



BASE - Metallic Tank Track #63 -- US$238.00

Size - 232mm(L) x 193mm(W) x 73mm(H)
Number of motors - 4 DC gearhead motors with encoder
Motor voltage - DC 9-12V
Motor speed - 300RPM at 12V
Platform weight - 2.6kg
Platform payload (own weight excluded) - 10kg
Platform building material - Stainless steel (304)
Remote control set - No
Extra motors and replacement part can be purchased   Yes
Custom engraving characters on the tank body   No
Custom made size available - No

NOTE: Motor driver for this model is sold separately with discounted price. Please check with us.



METALLIC - Metallic Arm #1 -- US$159.00

Metallic robot arm with 4 servos control. The kit comes with all accessories and servos. Educational discount applied to all metallic tank track base and mobile robot base.



METALLIC - Metallic Arm #2 -- US$189.00

Metallic robot arm with 4 servos control. The kit comes with all accessories and servos. Educational discount applied to all metallic tank track base and mobile robot base.



METALLIC - Metallic Arm #3 -- US$96.00

Metallic robot arm with 2 servos control. The kit comes with all accessories and servos. Educational discount applied to all metallic tank track base and mobile robot base.



METALLIC - Metallic Arm #4 -- US$83.00

Metallic robot arm with 2 servos control. The kit comes with all accessories and servos. Educational discount applied to all metallic tank track base and mobile robot base.



METALLIC - Metallic Arm #5 -- US$59.00

Metallic robot arm with 1 servo control. The kit comes with all accessories and servos. Educational discount applied to all metallic tank track base and mobile robot base.



METALLIC - Metallic Arm #6 -- US$69.00

Metallic robot arm with 1 servo control. The kit comes with all accessories and servos. Educational discount applied to all metallic tank track base and mobile robot base.



METALLIC - Metallic Arm #7 -- US$299.00

Metallic robot arm with 6 servos control. The kit comes with all accessories, servos, servo driver board, and controller. Plug and play right away. Educational discount applied to all metallic tank track base and mobile robot base.



METALLIC - Metallic Arm #8 -- US$299.00



DOF - 6
Number of motors included - 7 servos with metal gears (MG996R x 5 pcs; MG90S x 2)
Motor voltage - DC 4.8V - 7.2V
Assembly - Unassembled.
Platform weight - 2.5kg
Platform payload (own weight excluded) - 1kg
Platform building material - Stainless steel (304)
Remote control set - Servo controller is soldseparately
Extra motors and replacement part can be purchased   Yes
Installation   On the tank and mobile base
Custom made size available - No

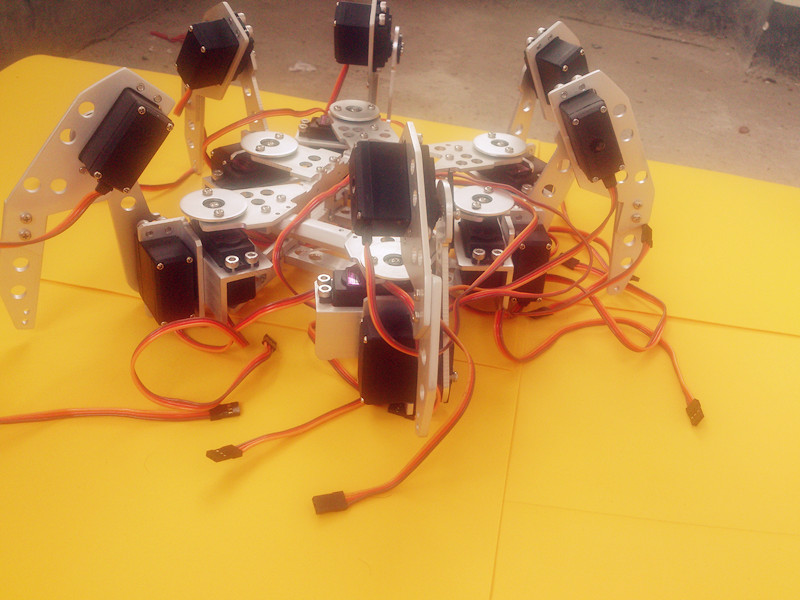

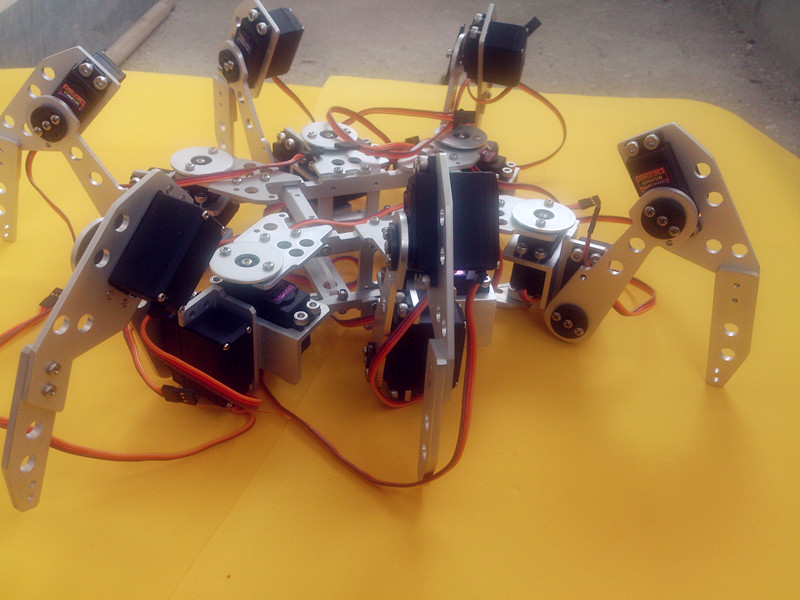

METALLIC - Metallic 6-leg Robot Platform #1 -- US$439.00

Metallic 6-leg robot comes with 18 servos control and steel body. The kit comes with all accessories and servos.A 6-leg spider robot and can move any directions. Educational discount applied to all metallic tank track base and mobile robot base.

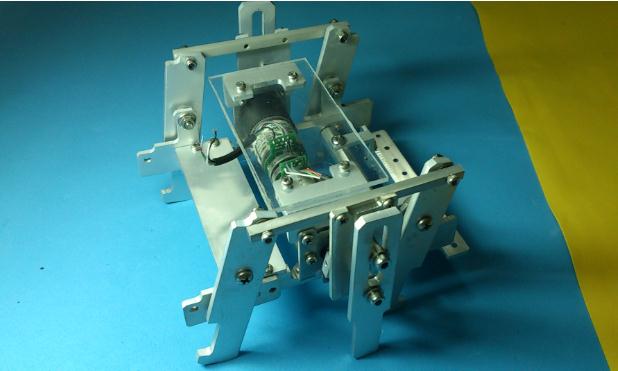

METALLIC - Metallic 6-leg Robot Platform #2 -- US$189.00

Metallic 6-leg robot comes with 2 DC gearhead motor and steel body. The kit comes with all accessories and DC gerhead motors. It is great for soccer robot. Educational discount applied to all metallic tank track base and mobile robot base.



METALLIC - Metallic 6-leg Robot Platform #3 -- US$189.00

Metallic 6-leg robot comes with 2 DC gearhead motor and steel body. The kit comes with all accessories and DC gerhead motors. It is great for soccer robot. Educational discount applied to all metallic tank track base and mobile robot base.

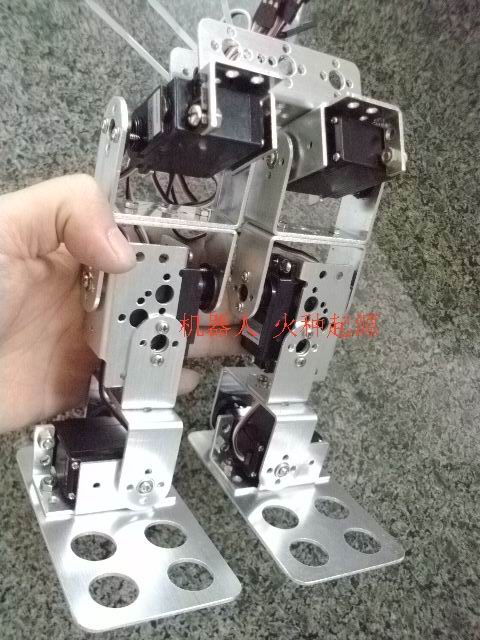

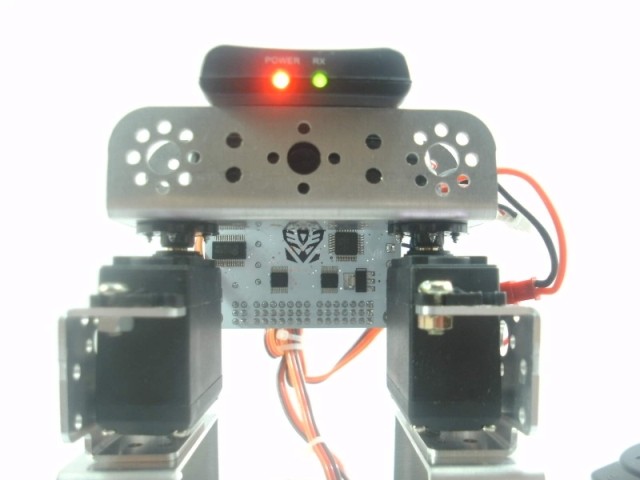

METALLIC - Metallic 2-leg Humanoid Robot Platform #1 -- US$259.00

Metallic 2-leg humanoid robot comes with 6 servos and steel body. The kit comes with all accessories and servos. Educational discount applied to all metallic tank track base and mobile robot base.



METALLIC - Metallic 2-leg Humanoid Robot Platform #2 -- US$339.00

Metallic 2-leg humanoid robot comes with 8 servos and steel body. The kit comes with all accessories and servos. Educational discount applied to all metallic tank track base and mobile robot base.



METALLIC - Metallic 2-leg Humanoid Robot Platform #3 -- US$199.00

Metallic 2-leg humanoid robot comes with all steel parts. The kit does not come with 17 servos. We recommend to use Hitech, Futaba etc. that can handle 13kg load servos. Educational discount applied to all metallic tank track base and mobile robot base.



METALLIC - Metallic 2-leg Humanoid Robot Platform #4 -- US$199.00

Metallic 2-leg humanoid robot comes with all steel parts, 4 servos, servo controller, and remote controller. Educational discount applied to all metallic tank track base and mobile robot base.

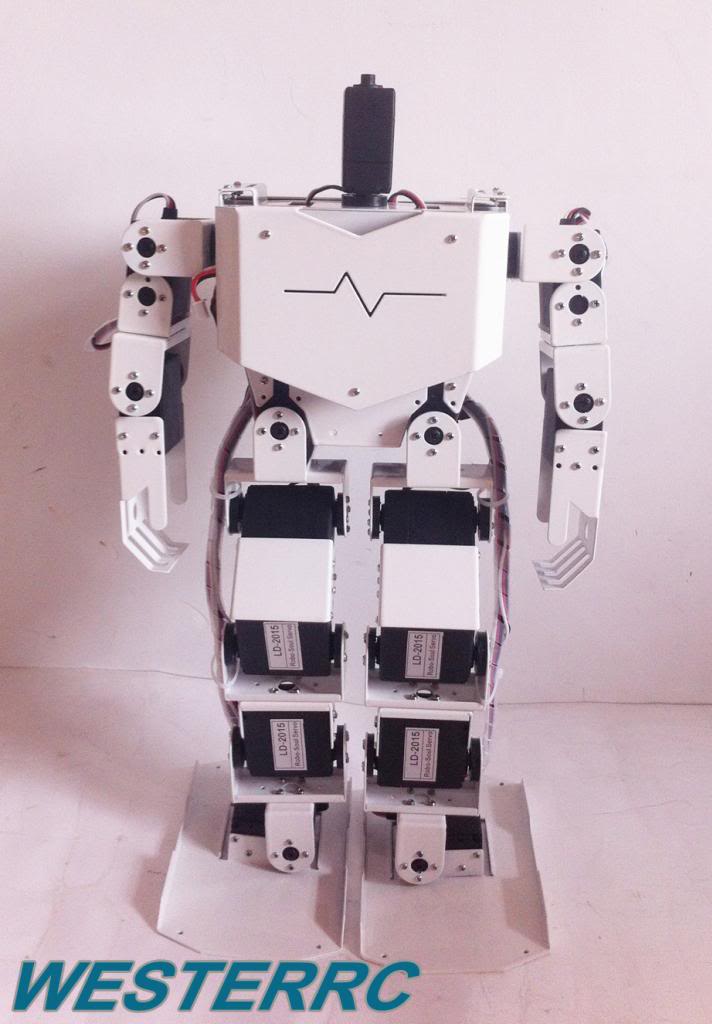

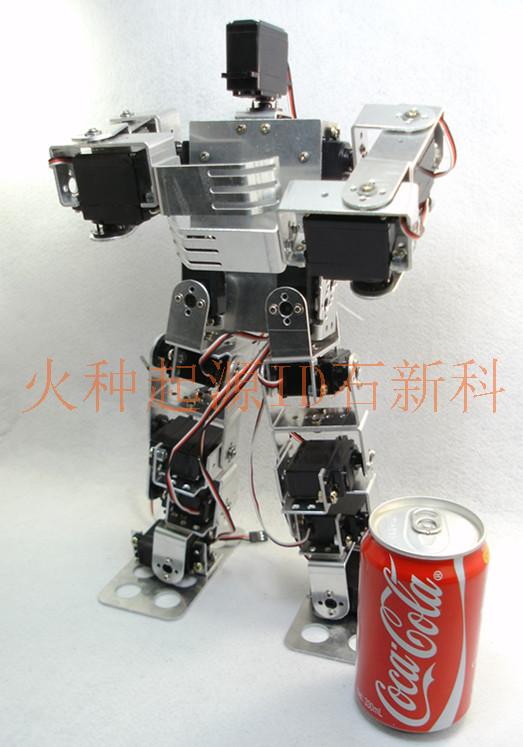

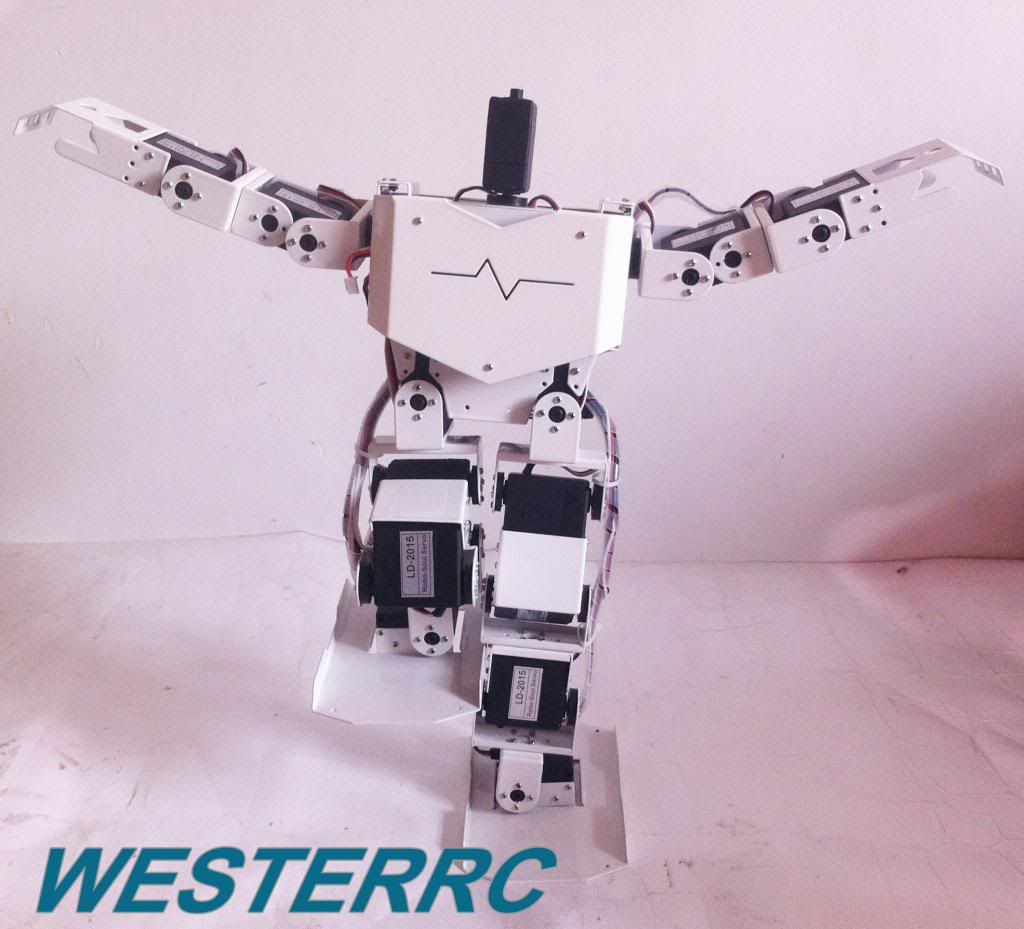

METALLIC - Metallic 2-leg Humanoid Robot Platform #5 -- US$799.00

Analog servo only suitable for use in less freedom of simple robots , if you want to start a little more high-end robot must use digital servos !

New 17 degrees of freedom bipedal robot consists mainly of a head , a torso, two arms, two legs. All digital servo with large torque to power to the robot ! In addition you can walk, squat , bend , sliding and other actions , you can also dance performances or fighting robots , and even more difficult to complete the action , such as push-ups , roll , forward roll , backward roll , handstand , etc. If equipped with the appropriate sensors can be completed on the stairs , walking and other difficult moves hunt .

( 1 ) body parameters Height : 365mm; Weight: about 1.36KG; Joint : A total of 17 joints ; head: 1 degrees of freedom , 6 -DOF arms , legs 10 degrees of freedom ;        Load new robot dedicated digital servo robot controller and 24 -way high-end , with a special lithium polymer rechargeable battery and charger.
( 2 ) Support structure Frame: Quintana using 1mm thick duralumin from finishing , part of the bracket made ??to strengthen the side handle , the stent is not only light weight and high strength . Between each of the joints are carefully designed by the engineer and measurement, making the robot leg structure is more reasonable. Integrated structure designed to be part of the bracket , which greatly facilitates the assembly robot , saving time and energy .
( 3 ) Servo system:   Digital servo robot using biaxial LD-2016, section steering torque , high precision , virtual bit small, zero dead zone, the robot 's movements more agile, neat !


Here are the parts included:

Full set of Robot metal bracket Frame: 1 set

LD-2016 high torque servos : 18 pcs(where a spare)

15cm servo extended line:  2pcs

High-power chip : 1pcs

Balance Charger:  1pcs

Ties: 20

Pipe: Many







Resources

We also have robots for researchers, professionals, and hobbyists.











shakespeare



Copyright © 2017 ROBOT STORE (HK). All Rights Reserved. Email: info@robotstorehk.com
