PRODUCTS

Makeblock Kits and Accessories

Makeblock is a fast growing robot constuction platform based on aluminum extrusion materials.We provide an integrated platform including many mechanical parts and electronic modules, all the mechanical parts are convenient to connect to each other. the electronic modules are easy to use, also it's conveinent to attach on the mechanical parts.

We will concentrate on developping new parts and modules, to make this platform cover more and more functions. We are willing to cooperate with distributors around the world, to bring you customer this innovative construction platform, to help turn their ideas into success.

We do carry ALL Makeblock parts, but we only list some of popular ones.

Please contact us if you cannot find them here. We guarantee our price is the lowest among the distributors.

MAKEBLOCK - mRanger -- US$179.00



Specifications
Software and  programming	PC-mBlock;iPad/Tablet-Makeblock
	Arduino IDE
Main Control Board	Arduino Mega 2560, 256KB flash memory, 8KG SRAM, 4KB EEPROM
Sensor	2 x Light sensor 1 x Sound sensor 1 x Gyroscope 1 x Temperature sensor 1 x Ultrasonic sensor 1 x Line follower
Speaker	1 x Buzzer
Battery	6 x AA battery(not included)
Motor	2 x 400 RPM Encoder Motor
Wireless Communication	Bluetooth/2.4G
Dimensions	200 x 165 x 120mm (7.78x6.49x4.71 inch) Max.
Weight	1600g (56.44oz)

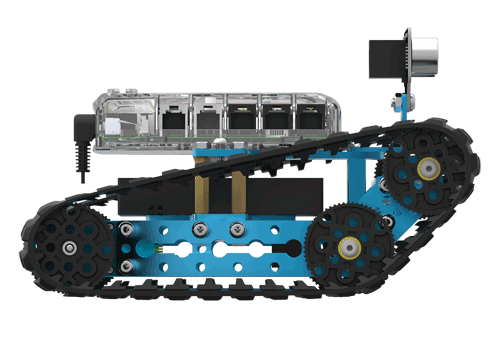

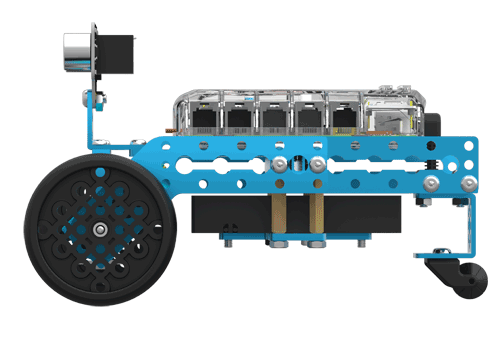

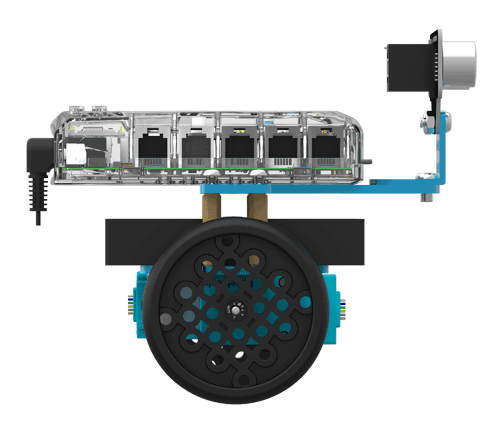

mBot Ranger is a three-in-one STEM educational robot kit which supports three building forms: a robot tank, a three-wheeled racing car, and a self-balance car. Program and control mBot Ranger via smartphone, tablets, or computer to start your exploration in the world of robotics.



mBot Ranger VS. mBot

If you're trying to figure out the difference between mBot Ranger and mBot, check this comparison chart.

	mBot Ranger	mBot
Form(s)	3	1
Main Control Chip	Arduino Mega 2560	Arduino Uno
Extension Ports	10 motor/sensor ports	4 sensor ports
On-Board Sensor	6 x sensors, include: Light sensor Ultrasonic sensor Line follower Gyroscope Temp sensor Sound sensor	3 x sensors, include: Light sensor Ultrasonic sensor Line follower
LED Lamplets	12	2
PC Programming	mBlock	mBlock
iPad/Tablets	MakeblockHD	mBlockly
Smartphone App	Under development	mBot app
Arduino	√	√
Communication	Bluetooth/2.4G	Bluetooth/2.4G
Online Courses	√	√



mRanger descriptions from MAKEBLOCK.
