OOPic is an acronym for Object-Oriented Programmable Integrated Circuit. It is the first programmable micro-controller / PVC that uses an object-oriented language. No additional expensive programming hardware to buy. A cable to your PC is all it takes. No additional EPROM eraser to buy. The OOPic's EEPROMs erase automatically when you download a new program. No new language syntax to learn! The OOPic Basic syntax is 100% compatible with Microsoft's Visual Basic®.
It is great to use OOPIC as a brain of your robot. OOPIC can be interfaced with sonar, digital compass, LCD and sero etc. The limitation is your imagination! Check the official OOPIC homepage for application examples and technical specifications. OOPIC development software download page
OOPIC has a family of OOPIC-III, OOPIC-III Plus, OOPIC-R, and OOPIC-C. They are using the same firmware but with different hardware form.

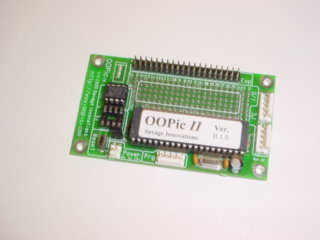

NOTE: OOPIC-II is obsolute and is now replaced by OOPIC-III.
OOPIC-ooBUG -- US$159.95
The ooBug (pronounced oo-bug) is an Educational Competition Robot. It is a customizable and fun learning toy perfect for students, hobbyists and professionals with a robust set of features.
The ooBug is a competition grade robot capable of competing in many different robotic events. It has many complex features that allow it to indicate its mood, hunger and overall condition. You have to wonder if it's alive...
Your ooBug begins its life with a pre-installed behavior that shows its abilities. When you are ready you can simply upload or create new behaviors with our easy to use software.
Educators of all types find the ooBug to be an exceptional teaching toy. The ooBug allows children (and adults!) to have fun and compete while exploring many mathematical and scientific principles. Technical Manual is avaliable. Replacement hardware is also available by request.
The ooBug (pronounced oo-bug) has an amazing set of features...
- Downward Looking Line Following Eyes
- Forward Looking Object Detecting Eyes
- Up Looking Light and Dark Sensing Eyes
- Hunger / Battery Monitoring System
- Voice, Music and Sound Effects Generator
- Feelings / Mood / Attitude Feedback
- Heartbeat / CPU Monitor
- Touch / Tactile Sensor
- Temperature Sensor
- Customizable Body
- Educators Curriculum
- Competition Accessories
- Expansion Ports
Tech Specs:
- 1 Microchip PIC24FJ64GA004
- 1 Microchip PIC18LF2450 (for USB)
- 4 Downward looking Ir Reflective Sensors
- 2 Forward looking Ir Reflective Sensors
- 2 Upward looking CDS Cell Sensors
- 3 Two color LEDs
- 1 Amplifier with speaker.
- 1 Push Button
- 2 H-Bridges
- 1 I2C Temperature Sensor
- 1 I2C EEPROM Socket
- 1 USB communication system
- 1 9V Battery Connection
- 1 Battery Voltage Sensor
- 3 Expansion sockets
- Connectors for PICkit 2 and MPLAB® ICD 2 In-circuit Debugger/Programmer
- On-board regulators for 3.3V and 5V (PIC24 operates at 3.3V)
OOPIC-BOOK-- OOPIC BOOK -- US$35.95
This book gives you everything you need for installing, using, customizing, and troubleshooting the OOPic microcontroller. The book includes a programming guide and application notes for those complex objects. It also includes a full object list for all OOPic versions as well as an Integrated Development Environment (IDE) guide.

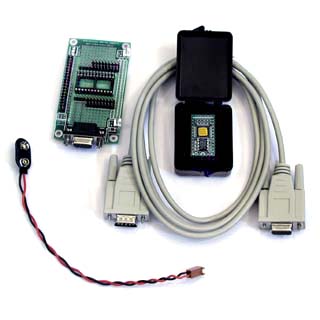

OOPIC-C-BASIC -- OOPIC-C Startup Package -- US$85.50
This is the OOPic C starter package which includes the OOPic C module, OOPic C Carrier Board, a 9V Battery Clip, and a serial extension cable. This is the new OOPic C module. This small sized oopic is aimed at the popular 24-pin sockets used by several microcontrollers expanding the OOPic's audience to individuals who already have hardware based on this 24-Pin system.

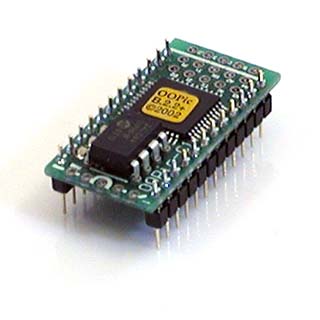

OOPIC-C-MODULE -- OOPIC-C Module -- US$58.00
This is the new OOPic C module. This small sized oopic is aimed at the popular 24-pin sockets used by several microcontrollers expanding the OOPic's audience to individuals who already have hardware based on this 24-Pin system.

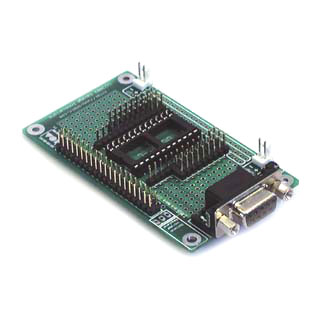

OOPIC-C-CARRIER -- OOPIC-C Carrier Board -- US$19.95
This is the carrier board for the 24 pin OOPic C Module. It offers the common OOPic bus and a convenient serial connection.

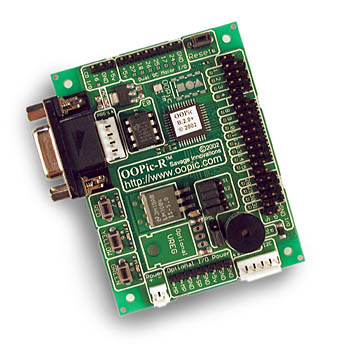

OOPIC-R-BARE -- OOPIC-R Bare Module -- US$78.00
This is the starter package that includes the new OOPic R Module (bare module only). The OOPic Manual and sample code must be downloaded from the OOPic site, and is not provided as a part of the starter package. Support, technical and upgrade questions about this product are handled by http://www.oopic.com

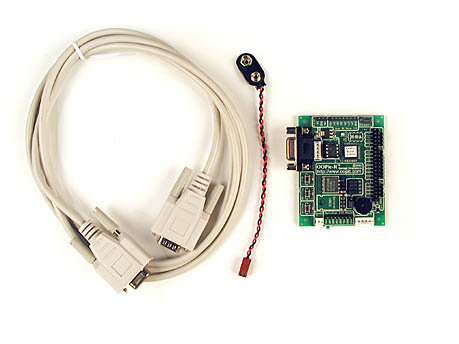

OOPIC-R-BASIC-- OOPIC-R Basic Start-up Package -- US$88.00
This is the starter package that includes the new OOPic R Module, the battery clip (9V battery not included), and the serial interface cable. The OOPic Manual and sample code must be downloaded from the OOPic site, and is not provided as a part of the starter package. Support, technical and upgrade questions about this product are handled by http://www.oopic.com

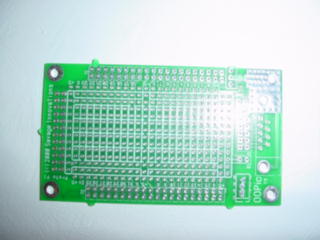

OOPIC-III-Prototype PCB -- OOPIC III or OOPIC-III Plus Prototype PCB -- US$16.00
Features:
Same size as OOPic III or OOPIC III Plus with mounting holes for 2 40-Pin OOPic expansion connectors with pass through.
Mounting holes for 1-Amp 5-Volt regulator.
Mounting holes for 9-Pin D connector.
Mounting holes for I/O lines are arranges so that the board can be configured as:
1. I/O line logic probe with no jumpers
2. Servo connectors.
3. IR distance connectors.
4. Switches.
5. Any other device that needs a single I/O line in combination with +5 volts and ground connections.
6. No-Solder Press in connections.
Power Connections:
Several connection holes are provided that connect to power lines shown in red and black. The +5-Volt power line is connected to the output of a TO220 case 1-Amp voltage regulator. The +5-Volt lines from the OOPic's 40-Pin Expansion connector are passed through to the other 40-Pin connector and are not used on this board.
4 bus bars (shown in blue) are provided as general purpose busses. These can be used to provide voltage to servos, or any other device connected to the prototyping board.

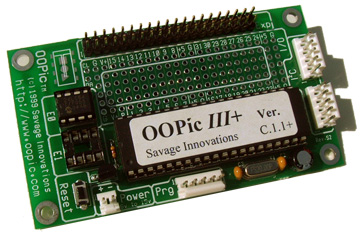

OOPIC-III-PLUS-BARE -- OOPIC-III+ Bare Module -- US$62.00
The package contains bare OOPIC III+ module, software and manual . You have to make your own downloading cable and battery clip by following the instructions here. It is easy to build. Getting this part to interface other OOPIC III+ modules to form a controller network.
OOPIC-III-PLUS-BASIC -- OOPIC-III+ Basic Start-up Package -- US$72.00

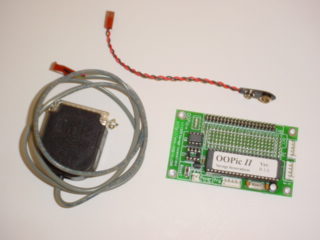

The package contains bare OOPIC II+ module, software , manual, downloading cable and 9V battery clip. What you need is to apply a 9V battery into the module and start programing.
OOPIC-III-BARE -- OOPIC-III Bare Module -- US$59.00
The package contains bare OOPIC III module,software and manual. You have to make your own downloading cable and battery clip by following the instructions here. It is easy to build. Getting this part to interface other OOPIC III modules to form a controller network.
OOPIC-III-BASIC--OOPIC-III Basic Start-up Package -- US$69.00
The package contains bare OOPIC III module, software, manual, downloading cable and 9V battery clip. What you need is to apply a 9V battery into the module and start programing.
OOPIC-III-ROBOT -- Robotic Exploration Package (OOPIC-III) -- US$135.95
OOPIC-III Plus ROBOT -- Robotic Exploration Package (OOPIC-III Plus)-- US$145.95
OOPIC-R ROBOT -- Robotic Exploration Package (OOPIC-R) -- US$151.95
OOPIC-C-ROBOT -- Robotic Exploration Package (OOPIC-C) -- US$151.95
Note: Above photo only shows the OOPIC-III Plus module package.

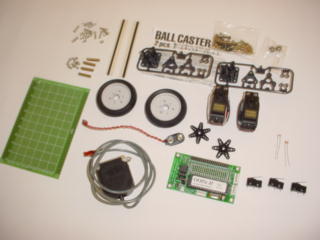

This package contains all critical parts and components to build your own mobile robot. The package includes a complete of OOPIC-III-BASIC or OOPIC-III Plus-BASIC or OOPIC-R-BASIC package, two (2) Futaba standard servos, two (2) 56mm narrow wheels, two (2) casters, a easy-to-drill and modify PCB prototype to build robot body, 4 spacers and screws to mount OOPIC module, and two (2) photo-resistor and three (3) bumper switch sensors, screws and nuts.
You are now ready to build a working mobile robot by your imagination.You will need to drill holes, mounting wheels to servo, and modify servo to have 360 degree rotation.
OOPIC-III-LAB -- Lab Package (OOPIC-III) -- US$179.95
OOPIC-III-Plus-LAB -- Lab Package (OOPIC-III Plus) -- US$182.55
OOPIC-R-LAB -- Lab Package (OOPIC-R) -- US$189.25
OOPIC-C-LAB -- Lab Package (OOPIC-C)--US$189.25

Note: Above photo only shows the OOPIC-III Plus module package

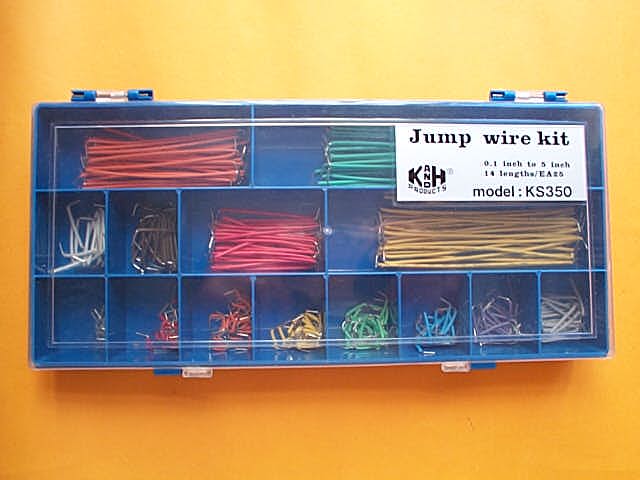

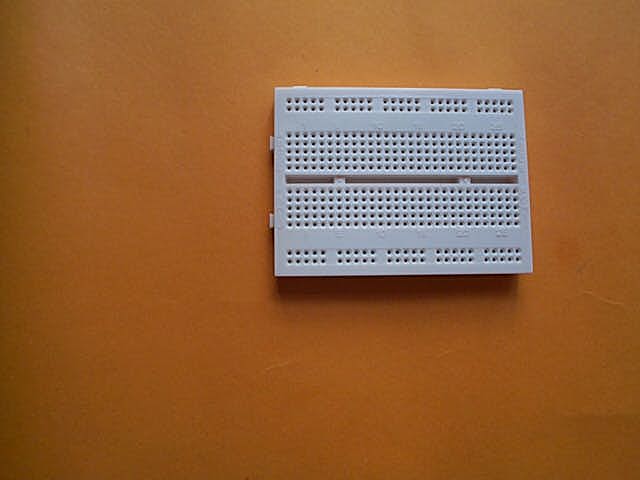

This packages contains all parts that can be used for lab experiments. The package includes a complete of OOPIC-III-ROBOT or OOPIC-III-Plus-ROBOT or OOPIC-R-ROBOT package, a 16x2 LCD display module, breadboard, jumper wire kit, two (2) IR transmitter and receicer LEDs. This is great to setup lab experiments based on OOPIC controllers.
OOPIC-32KEEPROM -- 32K EEPROM for OOPIC III, OOPIC-III Plus, OOPIC-R-- US$8.95
This 32k EEPROM (24LC256) can be used (in either E0 or E1 sockets) to increase the program space on your OOPic module. By replacing this with a 32k EEPROM you get space for a 32000 instruction programme. The standard 8k EEPROM provides space for a 8000 instruction programme for OOPIC III, OOPIC-III Plus, and OOPIC-R.
OOPIC-III-8KEEPROM -- 8K EEPROM for OOPIC III or OOPIC-III Plus -- US$6.25
This 8K EEPROM (24LC64) is originally used in OOPIC-III, OOPIC-III Plus, and OOPIC-R modules.
OOPIC-III-CONNECTOR -- OOPIC III or OOPIC-III Plus or OOPIC-R connector cable -- US$3.95
A ribbon cable with 40 pin connectors to connect an OOPic microcontroller (OOPIC-III, OOPIC-III Plus, OOPIC-R, and OOPIC-C carrier boards) to a PWM motor driver board or to a Prototyping board. It can connect to the following breadboard adapter and OOPIC III prototype PCB. It fits to OOPIC-III-ADAPTER.

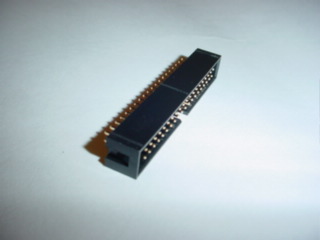

OOPIC-III--ADAPTER -- OOPIC III or OOPIC-III Plus connector adapter -- US$2.95
This adapter enables you to connect the 40 pins on the OOPic's expansion connector to a prototype board, using a 40 pin interconnect cable. It matches our 40-pin connector cable OOPIC-III-CONNECTOR.

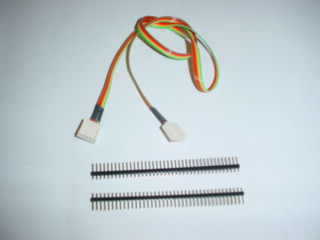

OOPIC-III-NWK-CABLE -- OOPIC netwrok cable and terminator -- US$6.50
A 80cm network cable and network terminator that will enable you to network OOPics using the OOPic's onboard I2C bus. The cable simply plugs into one of the two I2C connectors on the OOPic circuit board. Up to 127 OOpics can be networked using this method of communication. It can be used in OOPIC-III, OOPIC-III Plus, OOPIC-R, and OOPIC-C modules.

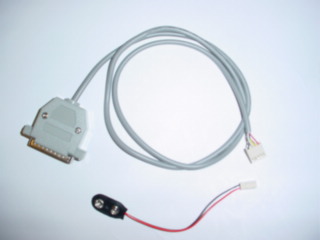

OOPIC-III-PRGM-CABLE -- OOPIC-III, III+, and OOPIC-R programming cable and battery clip -- US$10.95
OOPIC-III, OOPIC-III Plus, and OOPIC-R parallel programming cable and battery clip. You can also make it by yourself. Here is the instructions.
OOPIC-R-PRGM-CABLE -- OOPIC-R Serial programming cable and battery clip -- US$8.50
OOPIC-R or OOPIC-C serial programming cable and battery clip of OOPIC-R. This serial cable only applied to OOPIC-R and OOPIC-C with carrier board only!

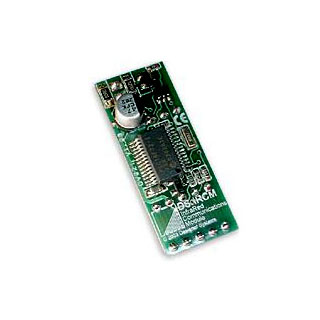

SENSOR-IRCM -- InfraRed Communications Module (IRCM) -- US$59.00
The InfraRed Communications Module (IRCM) is a low cost wireless communications solution for your robot. It can be used in conjunction with a standard infrared remote control (Philips, Sony, SKY digibox and NEC formats) so that you can wirelessly control your project.
With two or more IRCM's you can create a communications network so that your robots can talk to each other! The IRCM also has an RS232 interface so that you can control your robot wirelessly from your PC.
The IRCM is a micro-sized PCB module (14mm x 35mm) that plugs directly onto or an OOPic (III, III+, R and C) programming connector
Here is the datasheet .
DRIVER-MAGNEVATION-DRIVER-KIT (Unassembled kit)- Magnevation Dual Motor Driver Board.....US$76.00
DRIVER-MAGNEVATION-DRIVER-KIT (Assembled and Tested)- Magnevation Dual Motor Driver Board.....US$89.00
Once assembled, this Motor Driver kit gives you two DC motor control channels. Each channel has an h-bridge with 3A capacity. Bridges operate at supply voltages from 12V to 55V. This kit contains all the parts need to make your own motor driver board. The board was originally designed as an accessory for the OOPic controller. The board can easily be adapted for use with other controllers. This board is designed to use two of National LMD18200 H-Bridges (included in kit) allowing for 3 amps continuous current capacity.
|
