MIT Handyboard System

MIT Handyboard Expansion Board

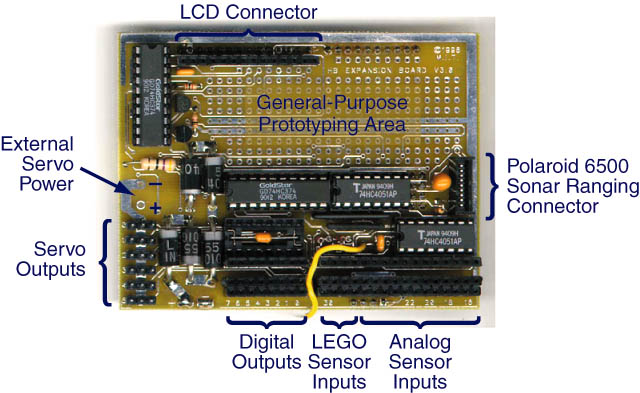

Features


The Expansion Board plugs on top of the Handy Board, and provides the following extra features:

--10 additional analog sensor inputs;
-- 4 inputs for active LEGO sensors (reflectance sensor and shaft encoder);
-- 9 digital outputs;
-- 6 servo motor control signals with power supply from the Handy Board's internal battery;
-- optional external power for servo motors;
-- connector mount for Polaroid 6500 ultrasonic ranging system;
-- general-purpose electrical prototyping area;
-- pass-through connector for the Handy Board's LCD screen

HB-U-EXP ...US$27.00

Assembled and Tested Handyboard Expansion Board (Ready-to-Run)

  1. Handyboard Expansion Board PCB with all electronics components soldered
  2. Un-assembled kit
  3. Handyboard Expansion Board Software Library
  4. Instructions for installing the Expansion Board onto your existing Handy Board.

NOTE:

J11, the flex cable connector, is provided with the Polaroid 6500 sonar ranging system. We offer the Polaroid 6500 sonar ranging system .

For more information on the Polaroid 6500 system, please refer to: http://www.handyboard.com/software/sonar.html




Resources

MIT Handyboard Expansion Board software library

Instructions for installing the Expansion Board onto your existing Handy Board.
